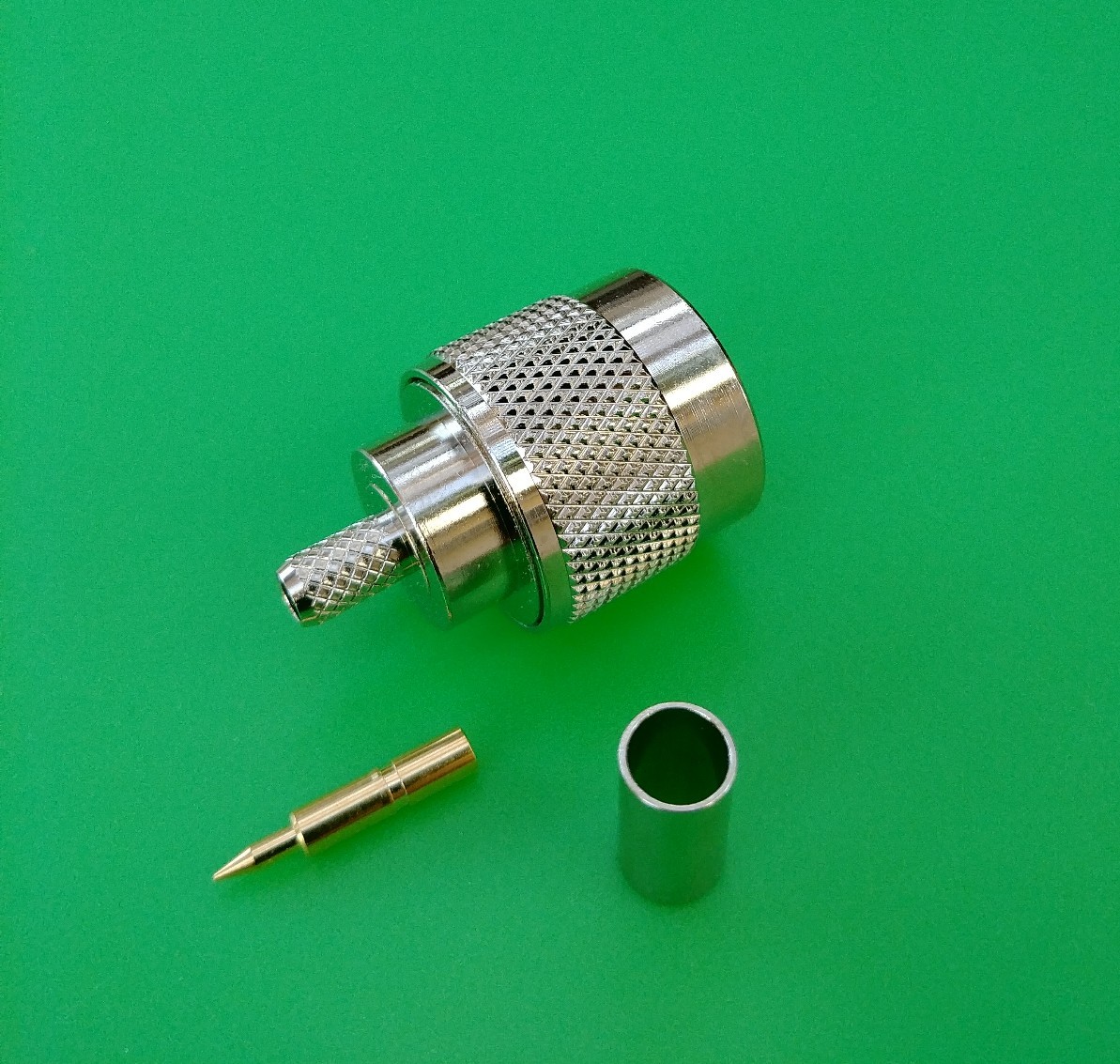

N Male Crimp for RG58/RG142/LMR195 (N-001-1TGN-A)
- 1 SET per order- Made in Taiwan- Excellent QualityN SERIES SPECIFICATIONS
--------------- ELECTRICAL ----------------
- Impedance: 50 OHM
- Frequency Range: DC-11GHz
- Working: 1000 VRMS max.
- Dielectric Withstanding Voltage: 2500 VRMS min.
- VSWR Straight: 1.3 max Right Angle: 1.5 max
- Contact Resistance: Center Contact: 3 Milliohms max. Outer Contact: 2 Milliohms max.
- Insulator Resistance: 5000 Megaohms min.--------------- MATERIAL ---------------Parts Name Material Finish
- Body, Metal Parts Brass per QQ-B-626 Nickel 70 micro-inches
- Center Contacts Male:Brass per QQ-B-626 Gold Plated Female:Brass per QQ-B-626 Gold Plated Phosphor Bronze per QQ-B-750 Beryllium Copper per QQ-B-530- Insulators POM, PTFE None
- Crimp Ferrules Annealed Brass Nickel 70 micro-inches- Clamp Gaskets Silicone Rubber None
