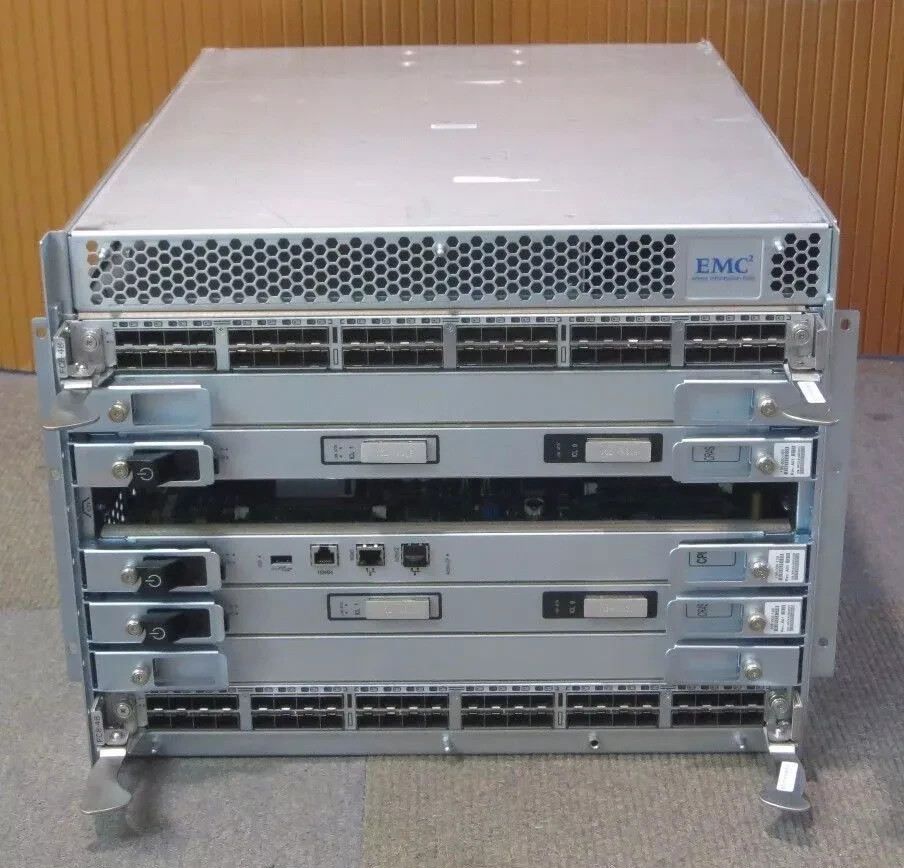

Brocade ED-DCX-4S Backbone SAN Switch 100-652-565 2x FC8-48 1x CP8 2x CR4S8
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Brocade ED-DCX-4S Backbone SAN Switch 100-652-565 2x FC8-48 1x CP8 2x CR4S8
Price: GB $2845.00
EMC Brocade ED-DCX-4S Backbone SAN Switch 100-652-565 2x FC8-48 1x CP8 2x CR4S8 8GB

Part Number:100-652-565

Model: EM-DCX4S-0002

In Good Condition, Full Working Order

Fabric,Enhanced Group Management,Extended Fabric,Fabric Watch,Performance Monitor,Trunking,Adaptive Networking,Enhanced Group Management, andServer Application Optimization license

Included

  • 1 xEMC Brocade ED-DCX-4S-B Backbone SAN Switch 100-652-565 8GB
    • 2 x 60-1000375-13FC8-48 48 Port Port 8Gbps Blade
    • 2 x 60-1000818-08CR4S8 Director Processor Blade
    • 1 x 60-1000376-08CP8 Control Processor Blade
    • 2 x 23-0000067-012000W Power Supply

Description

The award-winning Brocade DCX 4S provides enterprise data centers with a robust storage network switching platform that allows for scalability, energy efficiency, and long-term reliable performance. The DCX-4S offers 8Gbp/s network switching platforms for complete backbone-class capabilities. This backbone supports Windows and all other major server or storage operating systems, offering nonstop networking capabilities and the ability to successfully manage a wide range of applications. For servers experiencing increased traffic, data growth, and heightening demands on virtual environments, the Brocade DCX-4S is an excellent choice to help simplify site management and reduce network complexity. The Brocade DCX-4S will help to reduce the infrastructure necessary to support your system, thus reducing overall administrative and repair costs.

Specifications

  • Single chassis: Up to 256 Gbps universal (E, F, FL, M, EX) Fibre Channel ports using up to eight 16-, 32-, 48-, or 64-port Fibre Channel blades
  • Chassis bandwidth: 2.3 Tbps per chassis
  • ISL bandwidth: 256 Gbps; four ICLs provide the equivalent of 32 8 Gbps ports
  • Control Processor: Redundant (active,standby) control processor modules
  • Scalability: Full fabric architecture of 239 switches
Boot Log:

Kernel: 2.6.14.2

Fabric OS: v6.4.3f3

Made on: Wed Oct 8 21:16:23 2014

Flash: Sat Jan 31 11:41:38 2015

BootProm: 1.0.15

Fabric license

Enhanced Group Management license

Extended Fabric license

Fabric Watch license

Performance Monitor license

Trunking license

Adaptive Networking license

Enhanced Group Management license

Server Application Optimization license

switchName: Brocade

switchType: 77.3

switchState: Online

switchMode: Native

switchRole: Principal

switchDomain: 1

switchId: fffc01

switchWwn: 10:00:00:05:1e:50:5e:00

zoning: OFF

switchBeacon: OFF

FC Router: OFF

FC Router BB Fabric ID: 1

Address Mode: 0

Index Slot Port Address Media Speed State Proto

0 1 0 010000 -- N8 No_Module FC

1 1 1 010100 -- N8 No_Module FC

2 1 2 010200 -- N8 No_Module FC

3 1 3 010300 -- N8 No_Module FC

4 1 4 010400 -- N8 No_Module FC

5 1 5 010500 -- N8 No_Module FC

6 1 6 010600 -- N8 No_Module FC

7 1 7 010700 -- N8 No_Module FC

8 1 8 010800 -- N8 No_Module FC

9 1 9 010900 -- N8 No_Module FC

10 1 10 010a00 -- N8 No_Module FC

11 1 11 010b00 -- N8 No_Module FC

12 1 12 010c00 -- N8 No_Module FC

13 1 13 010d00 -- N8 No_Module FC

14 1 14 010e00 -- N8 No_Module FC

15 1 15 010f00 -- N8 No_Module FC

16 1 16 011000 -- N8 No_Module FC

17 1 17 011100 -- N8 No_Module FC

18 1 18 011200 -- N8 No_Module FC

19 1 19 011300 -- N8 No_Module FC

20 1 20 011400 -- N8 No_Module FC

21 1 21 011500 -- N8 No_Module FC

22 1 22 011600 -- N8 No_Module FC

23 1 23 011700 -- N8 No_Module FC

24 1 24 011800 -- N8 No_Module FC

25 1 25 011900 -- N8 No_Module FC

26 1 26 011a00 -- N8 No_Module FC

27 1 27 011b00 -- N8 No_Module FC

28 1 28 011c00 -- N8 No_Module FC

29 1 29 011d00 -- N8 No_Module FC

30 1 30 011e00 -- N8 No_Module FC

31 1 31 011f00 -- N8 No_Module FC

32 1 32 012000 -- N8 No_Module FC

33 1 33 012100 -- N8 No_Module FC

34 1 34 012200 -- N8 No_Module FC

35 1 35 012300 -- N8 No_Module FC

36 1 36 012400 -- N8 No_Module FC

37 1 37 012500 -- N8 No_Module FC

38 1 38 012600 -- N8 No_Module FC

39 1 39 012700 -- N8 No_Module FC

40 1 40 012800 -- N8 No_Module FC

41 1 41 012900 -- N8 No_Module FC

42 1 42 012a00 -- N8 No_Module FC

43 1 43 012b00 -- N8 No_Module FC

44 1 44 012c00 -- N8 No_Module FC

45 1 45 012d00 -- N8 No_Module FC

46 1 46 012e00 -- N8 No_Module FC

47 1 47 012f00 -- N8 No_Module FC

256 3 0 ------ cu 8G No_Sync FC

257 3 1 ------ cu 8G No_Sync FC

258 3 2 ------ cu 8G No_Sync FC

259 3 3 ------ cu 8G No_Sync FC

260 3 4 ------ cu 8G No_Sync FC

261 3 5 ------ cu 8G No_Sync FC

262 3 6 ------ cu 8G No_Sync FC

263 3 7 ------ cu 8G No_Sync FC

264 3 8 ------ cu 8G No_Sync FC

265 3 9 ------ cu 8G No_Sync FC

266 3 10 ------ cu 8G No_Sync FC

267 3 11 ------ cu 8G No_Sync FC

268 3 12 ------ cu 8G No_Sync FC

269 3 13 ------ cu 8G No_Sync FC

270 3 14 ------ cu 8G No_Sync FC

271 3 15 ------ cu 8G No_Sync FC

272 6 0 ------ cu 8G No_Sync FC

273 6 1 ------ cu 8G No_Sync FC

274 6 2 ------ cu 8G No_Sync FC

275 6 3 ------ cu 8G No_Sync FC

276 6 4 ------ cu 8G No_Sync FC

277 6 5 ------ cu 8G No_Sync FC

278 6 6 ------ cu 8G No_Sync FC

279 6 7 ------ cu 8G No_Sync FC

280 6 8 ------ cu 8G No_Sync FC

281 6 9 ------ cu 8G No_Sync FC

282 6 10 ------ cu 8G No_Sync FC

283 6 11 ------ cu 8G No_Sync FC

284 6 12 ------ cu 8G No_Sync FC

285 6 13 ------ cu 8G No_Sync FC

286 6 14 ------ cu 8G No_Sync FC

287 6 15 ------ cu 8G No_Sync FC

192 8 0 01c000 -- N8 No_Module FC

193 8 1 01c100 -- N8 No_Module FC

194 8 2 01c200 -- N8 No_Module FC

195 8 3 01c300 -- N8 No_Module FC

196 8 4 01c400 -- N8 No_Module FC

197 8 5 01c500 -- N8 No_Module FC

198 8 6 01c600 -- N8 No_Module FC

199 8 7 01c700 -- N8 No_Module FC

200 8 8 01c800 -- N8 No_Module FC

201 8 9 01c900 -- N8 No_Module FC

202 8 10 01ca00 -- N8 No_Module FC

203 8 11 01cb00 -- N8 No_Module FC

204 8 12 01cc00 -- N8 No_Module FC

205 8 13 01cd00 -- N8 No_Module FC

206 8 14 01ce00 -- N8 No_Module FC

207 8 15 01cf00 -- N8 No_Module FC

208 8 16 01d000 -- N8 No_Module FC

209 8 17 01d100 -- N8 No_Module FC

210 8 18 01d200 -- N8 No_Module FC

211 8 19 01d300 -- N8 No_Module FC

212 8 20 01d400 -- N8 No_Module FC

213 8 21 01d500 -- N8 No_Module FC

214 8 22 01d600 -- N8 No_Module FC

215 8 23 01d700 -- N8 No_Module FC

216 8 24 01d800 -- N8 No_Module FC

217 8 25 01d900 -- N8 No_Module FC

218 8 26 01da00 -- N8 No_Module FC

219 8 27 01db00 -- N8 No_Module FC

220 8 28 01dc00 -- N8 No_Module FC

221 8 29 01dd00 -- N8 No_Module FC

222 8 30 01de00 -- N8 No_Module FC

223 8 31 01df00 -- N8 No_Module FC

224 8 32 01e000 -- N8 No_Module FC

225 8 33 01e100 -- N8 No_Module FC

226 8 34 01e200 -- N8 No_Module FC

227 8 35 01e300 -- N8 No_Module FC

228 8 36 01e400 -- N8 No_Module FC

229 8 37 01e500 -- N8 No_Module FC

230 8 38 01e600 -- N8 No_Module FC

231 8 39 01e700 -- N8 No_Module FC

232 8 40 01e800 -- N8 No_Module FC

233 8 41 01e900 -- N8 No_Module FC

234 8 42 01ea00 -- N8 No_Module FC

235 8 43 01eb00 -- N8 No_Module FC

236 8 44 01ec00 -- N8 No_Module FC

237 8 45 01ed00 -- N8 No_Module FC

238 8 46 01ee00 -- N8 No_Module FC

239 8 47 01ef00 -- N8 No_Module FC

Slot Blade Type ID Status

1 SW BLADE 51 ENABLED

2 UNKNOWN VACANT

3 CORE BLADE 46 ENABLED

4 CP BLADE 50 ENABLED

5 UNKNOWN VACANT

6 CORE BLADE 46 ENABLED

7 UNKNOWN VACANT

8 SW BLADE 51 ENABLED
