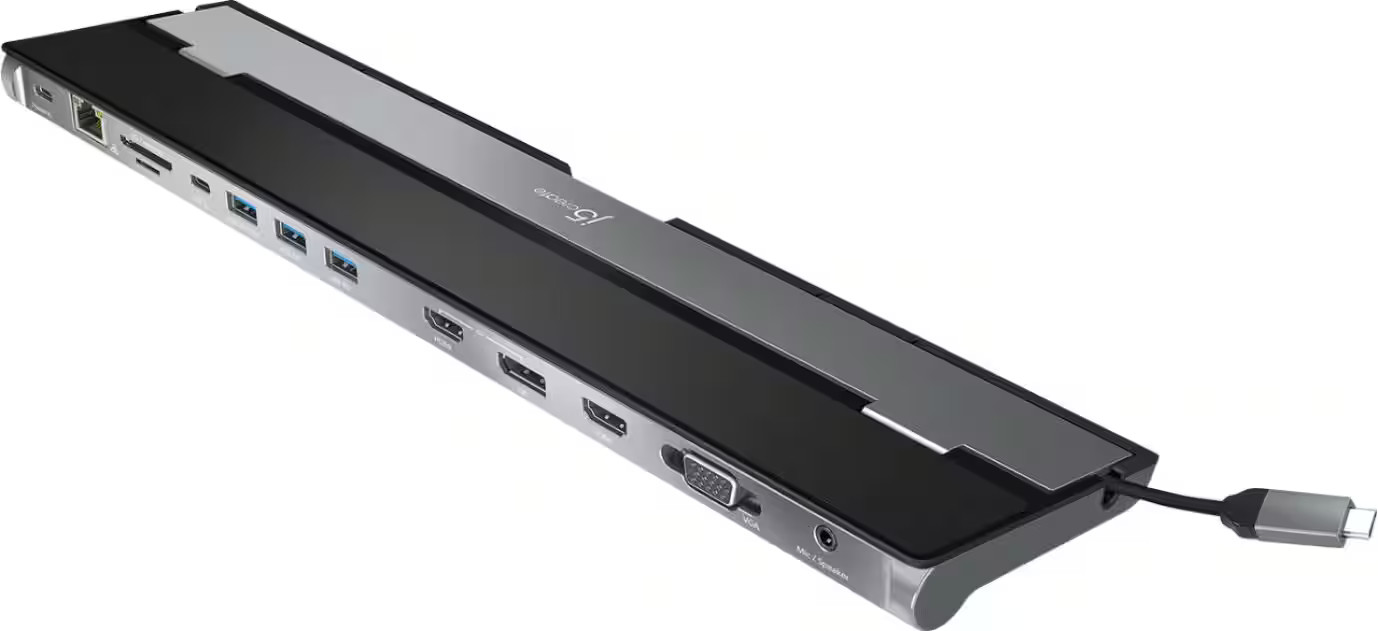

j5create - USB-C Triple Display Docking Station - Black

This triple display docking station turns your Mac or Windows laptop into a full workstation with a DisplayPort output, two HDMI outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB 3.0 ports, and a USB-C port, this docking station is perfect for your MacBook, Dell XPS, or other USB-C laptop requiring additional ports. This USB 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C ports location. All 13 ports are combined into one slim docking station, so youll have all the connections you need to stay productive!

Included Items

• 1 - JCD543 USB-C Triple Display Docking Station
• 1 - Quick Installation Guide

Features

Simultaneous DisplayPort, HDMI and VGA Output
Supports Mirror and Extended modes on both Mac & Windows. The easiest way to add a second or third display.

HDMI/DisplayPort/VGA Output Port
DisplayPort Alt mode for HDMI or DisplayPort resolution of 4K @ 30 Hz. HDMI resolution of 4K @ 30 Hz and VGA resolution of 1920 x 1080 via dual output.

USB-C 100W Power Delivery
With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when its used with a USB-C power adapter.

Multiple Connections
To support all of your USB peripherals, the dock provides a total of four USB 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD/microSD card slots and a combo audio jack.

BC 1.2 Fast Charging
One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB port.

SD and microSD card reader
Enable external memory Number:JCD543Product Name:USB-C Triple Display Docking StationColor:BlackMaximum Number of Displays Supported:3Maximum Supported Resolution:4K (2160p), Full HD (1080p)Display Connector(s):1 x DisplayPort, 2 x HDMI, 1 x VGANumber of DisplayPort Outputs (Total):1Number of HDMI Ports (Total):2Number of VGA Ports:1Number Of Ethernet Ports:1Number of USB Ports (Total):5USB Ports:3 x USB-A 3.0Headphone Jack:trueMicrophone Input:trueMemory Card Slot:trueMemory Card Type:Secure Digital, microSDPowered:truePower Supply Included:falsePower Supply Input:USB-CMaximum Input Power:100 wattsPassthrough Power:truePower Supply Output:USB-CMaximum Output Power:100 wattsSystem Requirements:Microsoft Windows 10 or later, macOS 10.11 or later. Available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0Brand Compatibility:UniversalModel Compatibility:Available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0Cable Lock Slot:NoneIndicator Light(s):falseProduct Height:0.92 inchesProduct Length:13.8 inchesProduct Width:3.24 inchesProduct Weight:0.78 ouncesWarranty - Parts:2 year limitedWarranty - Labor:2 year limited
