User show versionZyXEL Communications Corp.

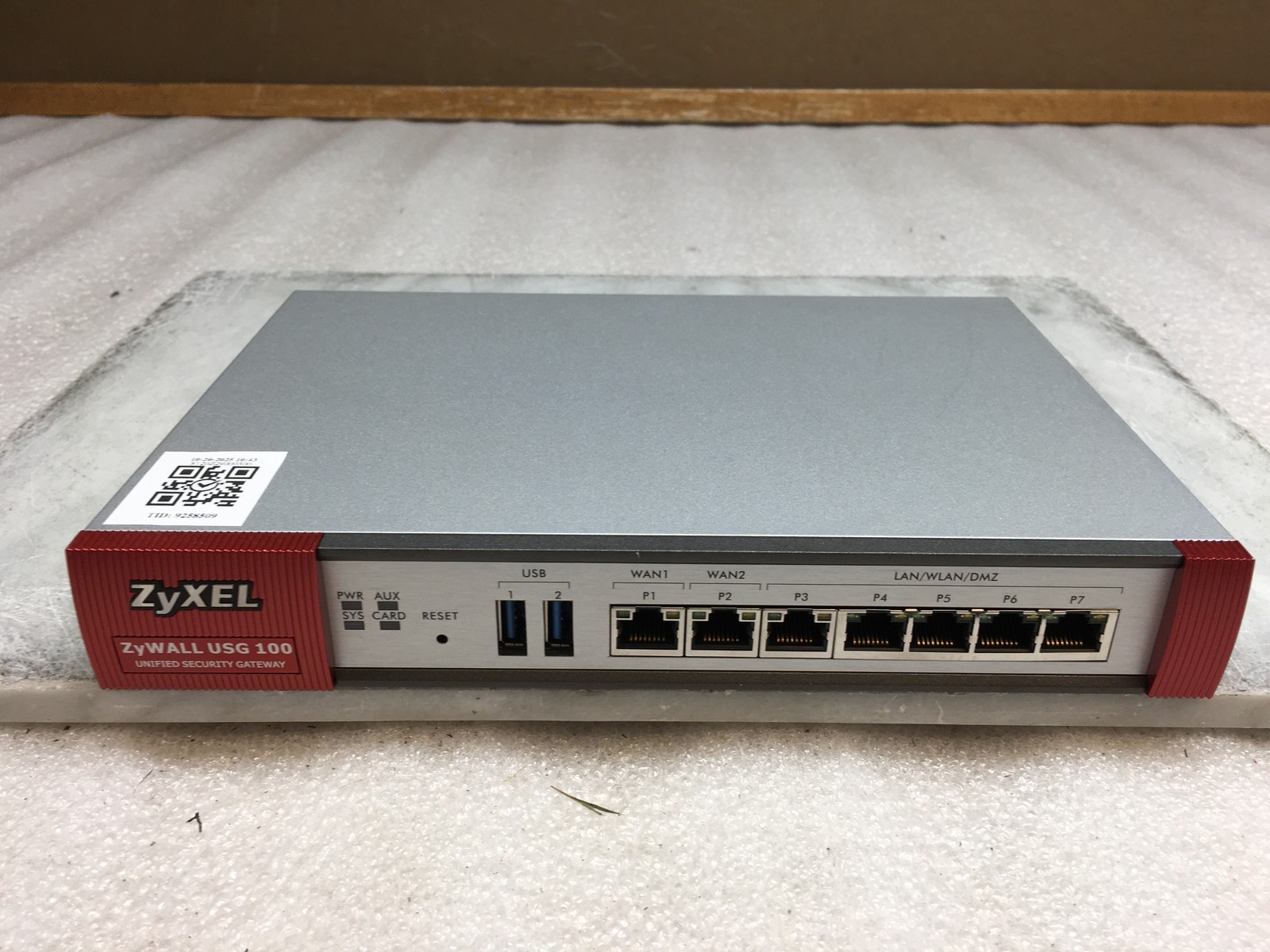

model: ZyWALL USG 100
firmware version: 3.30(AQQ.7)
BM version: 1.13
build date: 2015-01-13 show 300
!
interface-name ge1 wan1
interface-name ge2 wan2
interface-name ge3 lan1
interface-name ge4 lan2
interface-name ge5 ext-wlan
interface-name ge6 dmz
!
port-grouping lan1
port 3
port 4
!
port-grouping lan2
port 5
!
port-grouping ext-wlan
port 6
!
port-grouping dmz
port 7
!
account pppoe WAN1_PPPoEACCOUNT
!
account pppoe WAN2_PPPoEACCOUNT
!
ip dhcp pool LAN1_POOL
network 192.168.1.0/24
default-router 192.168.1.1
first-dns-server ZyWALL
starting-address 192.168.1.33 pool-size 200
lease 2
!
ip dhcp pool LAN2_POOL
network 192.168.2.0/24
default-router 192.168.2.1
first-dns-server ZyWALL
starting-address 192.168.2.33 pool-size 200
lease 2
!
ip dhcp pool EXT_WLANPOOL
network 10.59.0.0/24
default-router 10.59.0.1
starting-address 10.59.0.33 pool-size 200
first-dns-server ZyWALL
lease 2
!
ip dhcp pool DMZ_POOL
network 192.168.3.0/24
default-router 192.168.3.1
starting-address 192.168.3.33 pool-size 200
first-dns-server ZyWALL
lease 2
!
ip dhcp pool Network_PoolWLAN-1-1
network 10.59.1.0 255.255.255.0
default-router 10.59.1.1
starting-address 10.59.1.33 pool-size 200
first-dns-server ZyWALL
lease 2
!
interface wan1
ip address dhcp
type external
!
interface wan2
ip address dhcp
type external
!
interface lan1
ip address 192.168.1.1 255.255.255.0
ip dhcp-pool LAN1_POOL
type internal
!
interface lan2
ip address 192.168.2.1 255.255.255.0
ip dhcp-pool LAN2_POOL
type internal
!
interface ext-wlan
ip address 10.59.0.1 255.255.255.0
ip dhcp-pool EXT_WLANPOOL
type internal
!
interface dmz
ip address 192.168.3.1 255.255.255.0
ip dhcp-pool DMZ_POOL
type internal
!
interface wlan-1-1
ssid ZyXEL01
station-limit 255
security mode none
ip address 10.59.1.1 255.255.255.0
ip dhcp-pool wan1_ppp
account wan2_ppp
account LAN1_SUBNET interface-subnet lan1
address-object LAN2_SUBNET interface-subnet lan2
address-object EXT_WLANSUBNET interface-subnet ext-wlan
address-object DMZ_SUBNET interface-subnet dmz
address-object WLAN-1-1_SUBNET interface-subnet wlan-1-1
address-object IP6to4-Relay Any_UDP udp range 1 65535
service-object Any_TCP tcp range 1 65535
service-object AH protocol 51
service-object AIM tcp eq 5190
service-object NEW_ICQ tcp eq 5190
service-object AUTH tcp eq 113
service-object BGP tcp eq 179
service-object BOOTP_CLIENT udp eq 68
service-object BOOTP_SERVER udp eq 67
service-object CAPWAP-CONTROL udp eq 5246
service-object CAPWAP-DATA udp eq 5247
service-object CU_SEEMETCP1 tcp eq 7648
service-object CU_SEEMETCP2 tcp eq 24032
service-object CU_SEEMEUDP1 udp eq 7648
service-object CU_SEEMEUDP2 udp eq 24032
service-object DNS_TCP tcp eq 53
service-object DNS_UDP udp eq 53
service-object ESP protocol 50
service-object FINGER tcp eq 79
service-object FTP tcp range 20 21
service-object GRE protocol 47
service-object H323 tcp eq 1720
service-object HTTP tcp eq 80
service-object HTTPS tcp eq 443
Specifications Functional Condition:
F3 - Key Functions Working Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
ZyWALL USG 100 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
