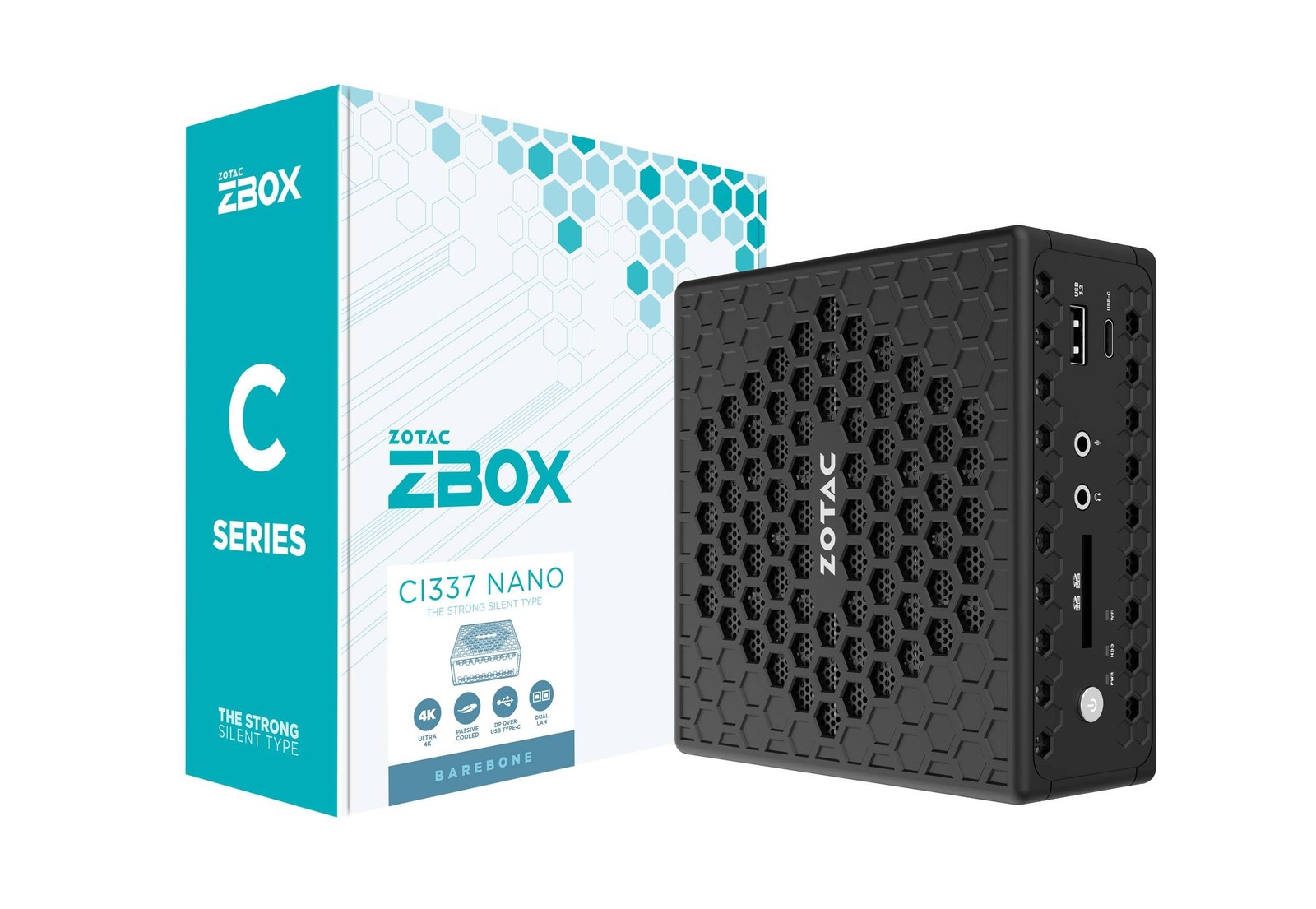

Zotac ZBOX nano ZBOX-CI337NANO-U Barebone System - Mini PC - Intel N-series N100 800 MHz Quad-core [4 Core] Zotac ZBOX nano ZBOX-CI337NANO-U Barebone System - Mini PC - Intel N-series N100 800 MHz Quad-core [4 Core]

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: ZBOX CI337 nano Barebone Power Adapter and Cable (bundled cable type dependent on region) Wi-Fi Antenna VESA Mount Bracket (w/ 4 screws) Warranty Card Quick Install Guide

Product Description

This item is brand-new, factory sealed.

ZOTAC ZBOX CI337 nano Fanless Silent Mini PC Intel Processor N100, Intel UHD Graphics, HDMI, DisplayPort, No Memory/Storage/OS Barebones System, Processor N100 (quad-core 0.8GHz, up to 3.4GHz)

Triple Display ready, 4K Ready @ 60 Hz, 2 x HDMI 2.0, DisplayPort 1.4, DP-via-USB-C

WiFi 6, Bluetooth 5.2, Dual Gigabit LAN

4 x USB 3.2 (1 Type-C), 1 x 2.5-inch HDD/SSD bay, 1 x M.2 NVMe PCIe 3.0 x1/SATA SSD slot

Fanless, Passive / Silent Cooling. VESA Mount compatible

• Standing screen display size: ?14.7
• Screen Resolution: ?3840 x 2160
• Max Screen Resolution: ?4096 x 2160 Pixels
• Processor: ?intel_processor_n100
• RAM: ?DDR5
• Memory Speed: ?4800 MHz
• Hard Drive: ?80 1 x 2.5" SATA 6Gbps HDD/SSD bay, 1 x M.2 NVMe PCIe 3.0 x1 / SATA SSD slot (2242)
• Graphics Coprocessor: ?Intel UHD Graphics 600
• Chipset Brand: ?Intel
• Card Description: ?Integrated
• Graphics Card Ram Size: ?8
• Wireless Type: ?802.11a/b/g/n/ac
• Number of USB 3.0 Ports: ?4
• Brand: ?ZOTAC
• Series: ?CI337 NANO
• Item model number: ?ZBOX-CI337NANO-U
• Hardware Platform: ?PC, Linux
• Operating System: ?Windows
• Item Weight: ?1.94 pounds
• Product Dimensions: ?5.03 x 4.99 x 2.24 inches
• Item Dimensions LxWxH: ?5.03 x 4.99 x 2.24 inches
• Color: ?Black
• Processor Brand: ?Intel
• Number of Processors: ?1
• Computer Memory Type: ?DDR5 RAM
• Hard Drive Interface: ?Serial ATA
• Hard Drive Rotational Speed: ?7200

The ZBOX CI337 nano features a power efficient next generation Intel Processor to give you a silent experience in a tiny compact PC. A robust passive cooled design with no moving components brings high reliability and extended durability. The signature honeycomb vents throughout the chassis enhances exhaust flow, backed by a large aluminum heatsink that maximizes heat transfer from the CPU to keep the system operating with performance. A VESA mount is included for nimble placement almost anywhere. The ZBOX CI337 nano is the ideal compact PC for home theater, digital signage, light productivity, everyday tasks, and more. - Fanless, Passively Cooled Silent Performance Mini PC FEATURES: Intel Quick Sync Video technology ; Native 4K output ; WiFi 6 & Bluetooth 5.2 ; Microsoft DirectX 12 compatible SPECIFICATIONS: Intel UHD Graphics ; Intel Processor N100 (quad-core 0.8GHz, up to 3.4GHz) AUDIO OUTPUTS: Digital 8 Channel Loss-less Bitstream (via HDMI) ; Analog Stereo In / Out SOFTWARE COMPATIBILITY: Microsoft Windows 11 HARD DRIVE & MEMORY: 1 x DDR5-4800 SODIMM memory Slot (up to 16GB) ; 1 x M.2 NVMe PCIe 3.0 x1/SATA SSD (2242) ; 2.5-inch SATA 6.0 Gb/s HDD/SSD bay FRONT SIDE PORTS: Power Button ; WiFi LED, Hard drive LED, Power LED ; 3-in-1 card reader (SD/SDHC/SDXC) ; 1 x USB 3.2 port ; 1 x USB 3.2 Type-C (Supports DP output over USB-C) REAR SIDE PORTS: 2 x USB 3.2 ports ; 2 x 10/100/1000 Mbps Ethernet ; Wi-Fi Antenna Connector ; Power Connector RIGHT SIDE PORTS: Kensington Lock DISPLAY OUTPUTS: 2 x HDMI 2.0 (up to 4096x2160@60Hz) ; HDCP Compliant ; DisplayPort 1.4 (up to 4096X2160@60Hz) ; DP output via USB-C (max. 3 simultaneous displays)INSIDE THE BOX: ZOTAC ZBOX CI337 nano ; Power Adapter and Cable (bundled cable type dependent on region) ; Wi-Fi Antenna ; VESA Mount Bracket (w/ 4 screws) ; Warranty Card ; Quick Install Guide DISPLAY OUTPUTS: 2 x HDMI 2.0 (up to 4096x2160@60Hz) ; HDCP Complian ; DisplayPort 1.4 (up to 4096X2160@60Hz) ; DP output via USB-C (max. 3 simultaneous displays) MINI PC DIMENSIONS: Length: 127.8mm (5.31in) ; Width: 126.8mm (4.99in) ; Height: 56.8mm (2.24in) For customer service, technical support, or general inquiries, please visit our dedicated support page at

Package Contents:

• ZBOX CI337 nano Barebone
• Power Adapter and Cable (bundled cable type dependent on region)
• Wi-Fi Antenna
• VESA Mount Bracket (w/ 4 screws)
• Warranty Card
• Quick Install Guide

SpecificationControllersController Type

• Serial CoreQuad-core (4 Core)Processor ManufacturerIntelProcessor ModelN100Maximum Turbo Speed3.40 GHzProcessor TypeN-seriesProcessor Speed800 MHzChipsetChipset ManufacturerIntelPhysical CharacteristicsForm FactorMini ExpansionsNumber of M.2 Interfaces1MemoryMemory TechnologyDDR5 SDRAMMaximum Memory Supported16 GBTotal Number of Memory Slots1Memory StandardDDR5-4800/PC5-38400Display & GraphicsGraphics Memory AccessibilitySharedGraphics Controller ManufacturerIntelGraphics Memory TechnologyDDR5 SDRAMGeneral InformationBrand NameZotacMarketing Information The ZBOX CI337 nano features a power-efficient next-generation Intel N-Series processor to give you a silent experience in a compact PC. A robust, passive cooled design with no moving components brings high reliability and extended durability. The signature honeycomb vents throughout the chassis enhances exhaust flow, backed by a large aluminum heatsink that maximizes heat transfer from the CPU to keep the system operating with consistant performance. A VESA mount is included to enable more possibilities when mounting this mini PC. The ZBOX CI337 nano is the ideal compact PC for home theater, digital signage, light productivity and everyday tasks, and more. Product TypeBarebone SystemProduct NameZBOX CI337 nano BareboneManufacturerZotac USA IncManufacturer Part NumberZBOX-CI337NANO-UProduct ModelZBOX-CI337NANO-UProduct SeriesCProduct LineZBOX nanoTitleProduct TitleZotac ZBOX nano ZBOX-CI337NANO-U Barebone System - Mini PC - Intel N-series N100 800 MHz Quad-core [4 Core] (ZBOXCI337NANOU)StorageSupported Storage Drive Interfaces
  • Serial ATA III
  • PCI Express NVMe 3.0 x1
  Supported Storage Drive Types
