New in box.
Information from manufacturer:
This XGS-PON ONU stick goes in the SFP+ port of a compatible router or network appliance and connects it straight to fiber. You get the full XGS-PON bandwidth without depending on the ISP gateway for routing. It's built on the MaxLinear PRX126 platform and supports symmetric line rates around 10Gbps. It is XGS-PON only and does not support GPON, so check your ISP's technology and OLT compatibility first. Actual speed depends on your ISP plan, OLT provisioning and network equipment.
It comes with 8311 V2.8.3 community firmware on a dual-partition layout, which makes firmware switching, management and recovery easier on custom ONT setups. A built-in web interface at 192.168.11.1 lets you set the MAC address, PON serial number, LOID, device password and PLOAM credentials without a serial console.
An aluminum heatsink and active cooling fan keep it stable under sustained 10G loads.
Specifications:
- SFP form factor with SC/APC receptacle
- TX 1270 nm, RX 1577 nm
- PRX126 SoC at 400 MHz
- 1 GB RAM, 128 MB NAND
- TX power 4 to 9 dBm, RX sensitivity below -29 dBm, RX overload -6 dBm
- Power draw under 2.5 W
- Operating temperature -40 to 85°C
- Complies with ITU-T G.987.2, G.9807.1, G.9807.2 and G.988 OMCI

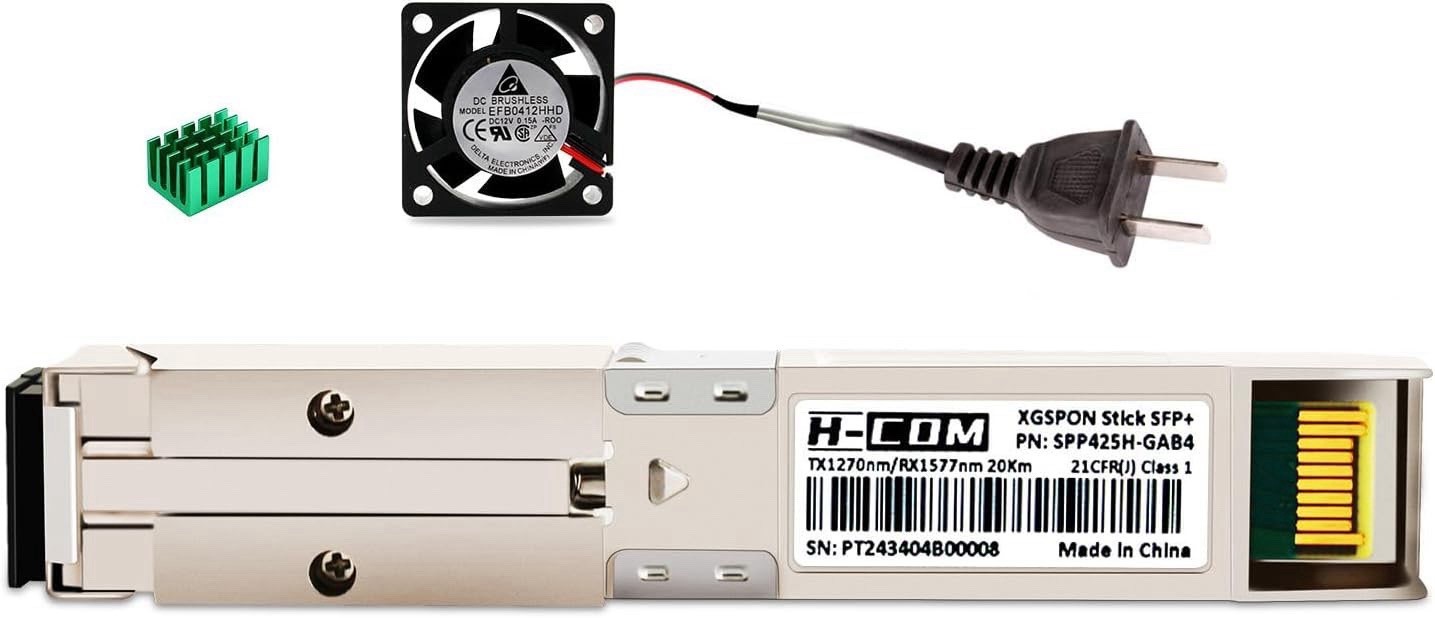

Included: XGS-PON ONU SFP+ stick with heatsink and cooling fan
Compatible with:
- Routers and appliances with SFP+ ports from MikroTik, Ubiquiti UniFi, Huawei, Cisco, HPE Aruba and TP-Link
- OPNsense, pfSense and Proxmox
- NICs: Intel X520, X710 and 82599ES, and Mellanox MCX512A-ACAT
- OLTs: ZTE (e.g. C600), Huawei (e.g. MA5800), Nokia (e.g. 7360). FiberHome is not supported.
