· Fully complies with IEEE 802.3, 802.3u, 802.3ab, 802.3bz standards
· Complies with PCI Express Revision 3.1 (5GT/s)
· MDI (Copper) standard IEEE 802.3 Ethernet Interface up to 2.5Gb/s
· Support IEEE 802.1q VLAN Tagging
· Support IEEE 802.1Qav credit-based shaper algorithm
· Support IEEE 1588v1, IEEE 1588v2, IEEE 80.2AS time synchronization
· Support IEEE 802.az – Energy Efficient Ethernet (EEE)
· Support Time Sensitive Networking (TSN) capabilities
· Support Half/Full Duplex mode and 802.3x Flow Control
· Support Wake-On-LAN
· TCP/UDP, IPv4 checksum offloads (Rx/Tx)
· Support Jumbo Frame to 9.5K bytes
· Crossover Detection & Auto-Correction
· LED indicator for monitoring Link/Act
· Support Standard and Low-Profile Chassis
32-bit PCI Express (PCIe x1) standard
1 * 10/100M/1G/2.5G RJ-45 port
Intel I225-V
Data Transfer Rate:
Network Media:
Jumbo Frame:
9.5K Bytes
Flow Control:
LEDs:
FCC, CE
Package Content:

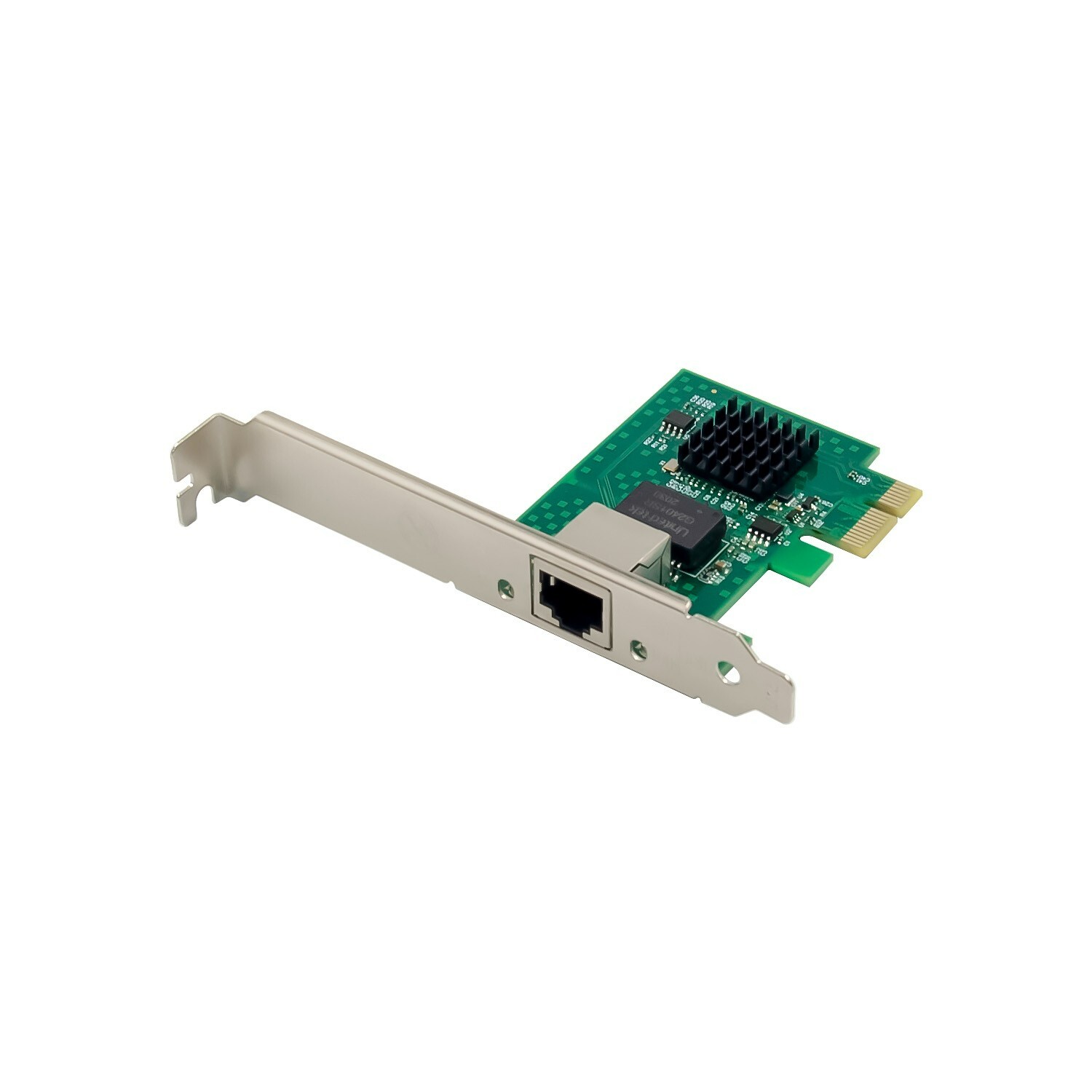

XM-NA4811 1-Port 2.5GbE Gigabit PCIe Network Adapter
CD Driver Disk w/User Guide; Low Profile Bracket
Supported OS:
Windows 10 version 1809 and above / 11(32/64-bit)
Windows Server 2019 / 2022
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
