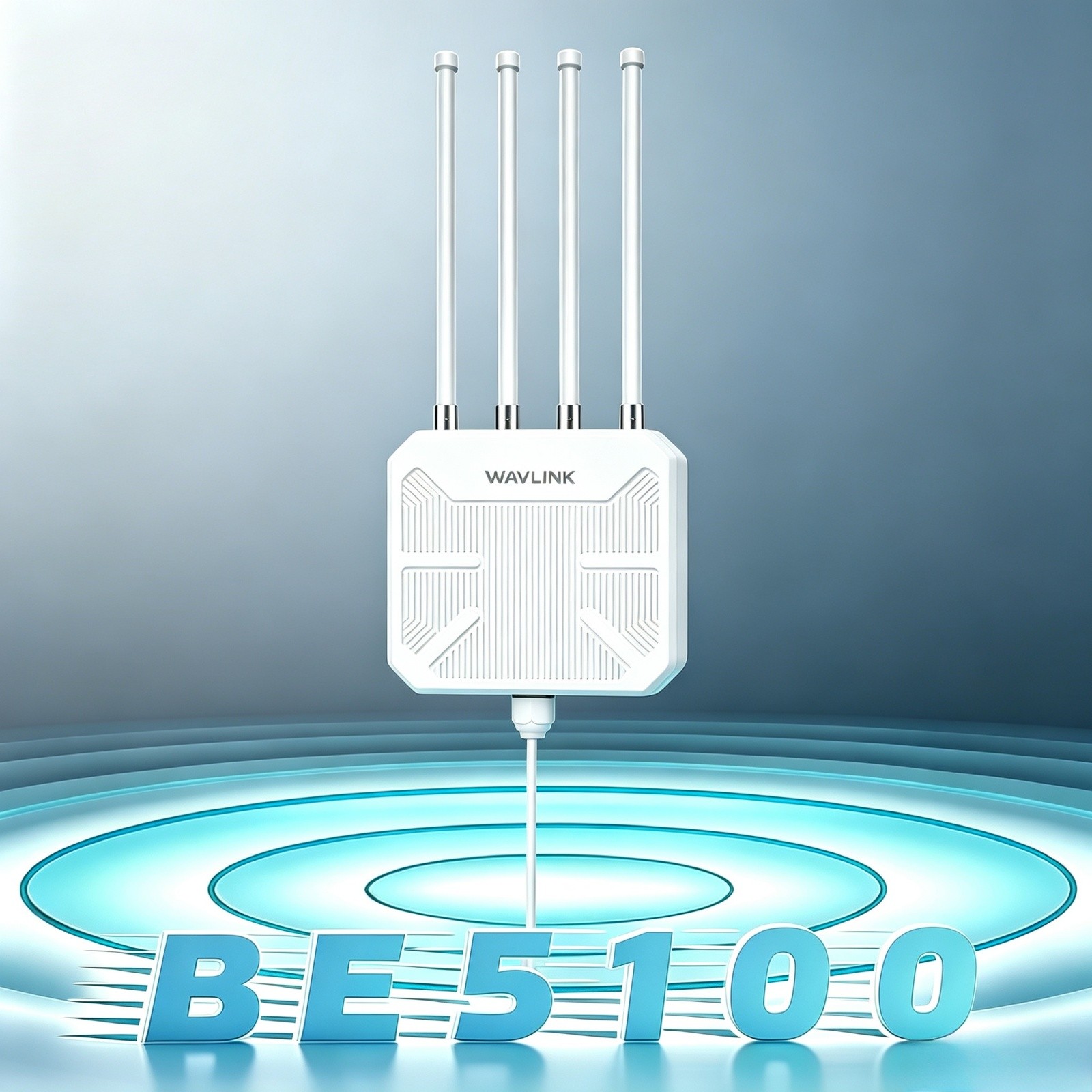

WAVLINK WiFi 7 Outdoor Long Range Router, Dual Band BE5100 Mesh Router, IP67 Waterproof & Dustproof,
15KV ESD & 4KV Lightning Protection, Active & Passive PoE Supported, 8dBi High-Gain Antennas

Next-Gen Wi-Fi 7 Performance- Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology, delivering blazing speeds of 688Mbps on 2.4GHz and 4323Mbps on 5GHz for a combined throughput up to 5100Mbps. Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.

Strong Environmental Resilience- Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure shrugs off torrential rains, dust storms, and debris. Built-in 15KV ESD protection and 4KV lightning surge defense safeguard critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites, or mountainous terrain.

Flexible Enterprise & Rural Power Options- Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective, long-range power for rural farms, orchards, and music festivals.

Expansive Coverage with Intelligent Roaming- Four 8dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas, while the dedicated 5dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh, one-click connection creates a unified mesh network.

Five Adaptive Operation Modes- Transform this router to fit any scenario: router/AP mode converts wired networks to Wi-Fi hotspots; repeater extends weak signals; mesh router/extender creates seamless multi-node systems; and mesh AP integrates with existing infrastructure. Maintain a single network name (SSID) across all modes for effortless dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.

Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws

Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
