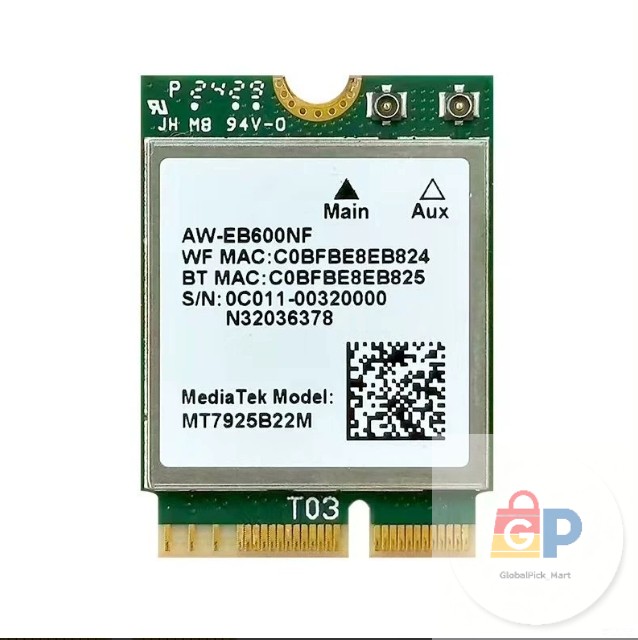

WiFi 7 MT7925 M.2 Key E Card 5400Mbps MT7925B22M Tri-band BT5.3 Wireless AdapterWarm Tips: The last picture is a new label, new and old labels randomly 2.4GHzand2x25/6GHz.MediaTek Wi-Fi7(802.11be) device Using Filogic 360, which can support Station,AP, P2P, and monitor modes. Filogic 360 supports max 4096-QAM/160MHz radio operation at 6 GHz, 5 GHz, or 2.4 GHz with 2x2 antennas.MT7925 supports Wi-Fi 6E and EHT rate with single link only at this moment, whereas Wi-Fi7 and its specifc features are working in progress. They will be introduced in further thechipset.ThisisaWiFi7capablechipset. WiFi 7 MT7925 M.2 Key E Card 5400Mbps MT7925B22M Tri-band BT5.3 Wireless Adapter Warm Tips: The last picture is a new label, new and old labels randomly sent. 2.4GHzand2x25/6GHz.
MediaTek Wi-Fi7(802.11be) device Using Filogic 360, which can support Station,AP, P2P, and monitor modes. Filogic 360 supports max 4096-QAM/160MHz radio operation at 6 GHz, 5 GHz, or 2.4 GHz with 2x2 antennas.
MT7925 supports Wi-Fi 6E and EHT rate with single link only at this moment, whereas Wi-Fi7 and its specifc features are working in progress. They will be introduced in further patches. Specification: Model: WiFi 7 MT7925 Chipset :MediaTek MT7925B22M Interface : M.2 NGFF (M.2 Key E) Standard :lEEE 802.11 a/b/g/n/ac/ax/be Bands：2.4GHz, 5GHz, 6 GHz 2.4Ghz 574Mbps, 5Ghz/6Ghz (2400Mbps) Max Speed：5400Mbps Antenna：2x2 TX/RX Streams：2x2, 320 MHz, 4K QAM Compliance: FIPS Bluetooth Version：5.3 Board Form Factor: M.2 2230, M.2 1216 System Interface Type: M.2: PCIe*, USB MU-MIMO: Yes Dimension:22mm*30mm*0.8mm Supported Operating Systems：Windows 10/11, 64-bit* Compatible with: It can work on almost brand with NGFF M.2 card slot, such as etc
It doesn't work on IBM/Thinkpad/Lenovo/HP laptop. Package Includes: 1 x WiFi 7 MT7925 wireless card
