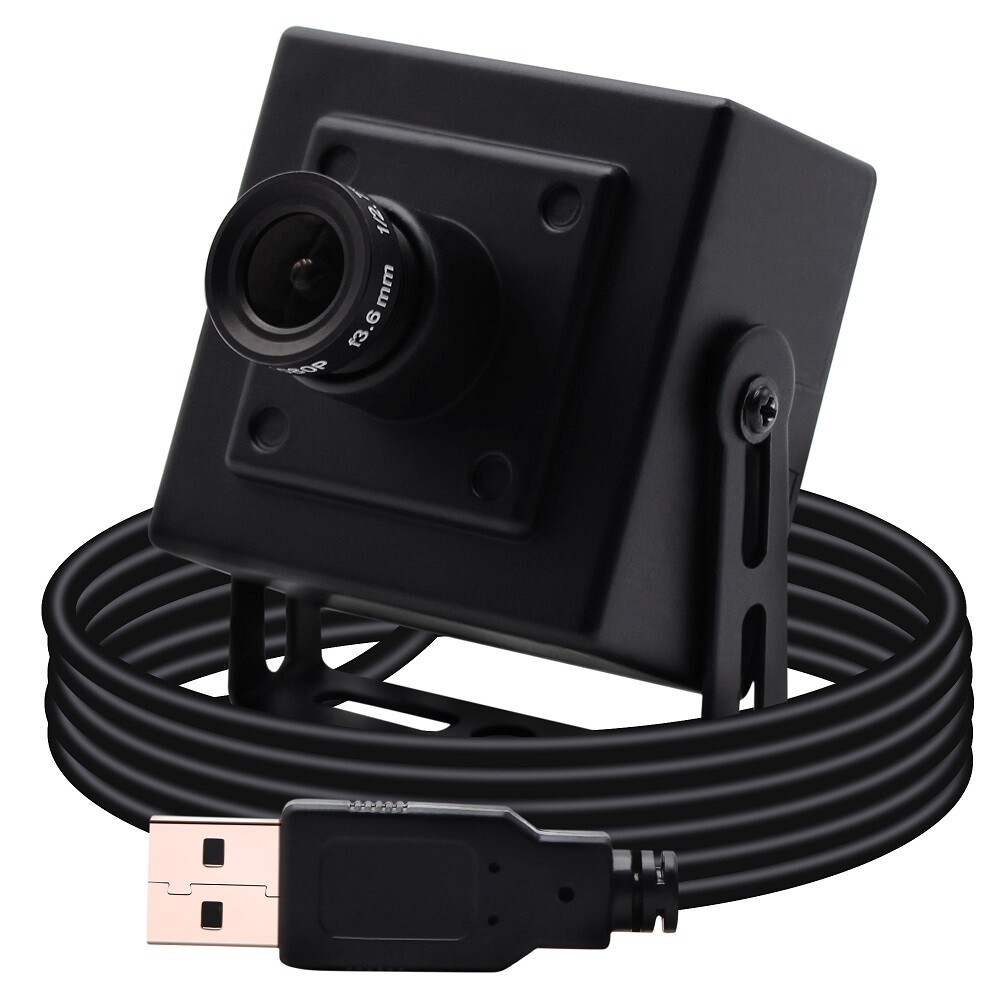

2MP High Speed High frame rate MJPEG 1080P 60fps/ 720P 120fps/ 360P 260fps OmniVision OV4689 CMOS Mini box USB Webcam Camera
Features:*2.0Megapixel High speed USB Camera Module *High quality OmniVision OV4689 Color CMOS Sensor *High frame rate- deliver 640X360MJPEG@ 260fps/1280X720 MJPEG@ 120fps /1920X1080 MJPEG@ 60fps UVC compliance for use in OS Windows,Linux, Android
*Operating system request : Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC
*High quality 3.6mm lens( 2.8/6/8/12mm lens optional)
If you do not know which lens to choose, please reference horizontal view angle of different lens:
2.1mm lens - about 120degree
2.8mm lens- about 113degree
3.6mm lens- about 90degree
6mm lens- about 50degree
8mm lens- about 40degree
12mm lens- about 25degree
Specification:
ELP-USBFHD08S-BL21
Sensor
OV4689
Lens Size
1/3 inch
Pixel Size
2.0µm X 2.0µm
image area
5440 µm x 3072 µm
Max. Resolution
1280(H)X720(V)
Compression format
MJPEG / YUV2(YUYV)
Resolution & frame
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360MJPEG@ 260fps
S/N Ratio
38.3dB
Dynamic Range
64.6dB
Sensitivity
1900mV/lux-sec@550nm
Mini illumination
0. 1lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class(UVC)
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
Standard 2.9mm lens, other optional
Power supply
USB BUS POWER
Operating Voltage
DC5V
Working current
150mA~185mA
Working temperature
0～70℃
Board size /Weight
38*38mm
Cable
Standard 1M
Operating system request
Win XP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
Application:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc.
used for all kinds of machine as below:
Picture Effect:
