Waveshare Raspberry Pi Compute Module 5 IO Board With PoE Feature For CM5

Price: CN $87.64

Description
Raspberry Pi Compute Module 5 IO Board with PoE Feature, for all Variants of CM5Compute Module 5 PoE Base Board

suitable for evaluating the Raspberry Pi CM5 or being integrated into end products

PoE Base Board for all Compute Module 5 Variants

Version Options

PoE Base Board
the base board only

PoE Mini-Computer Kit
PoE Base Board + metal case + power supply adapter

SpecificationsCM5 socketsuitable for all variants of Compute Module 5NetworkingGigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A)ConnectorRaspberry Pi 40PIN GPIO headerUSBUSB 3.2 Gen1 × 2USB 2.0 × 2MIPI4-lane MIPI interface × 2 (22pin 0.5mm FPC connector)VideoHDMI port × 2, supports 4K outputRTCCR / ML2032 battery holderStorageTF card slot for Compute Module 5 Lite (without eMMC) variantsFan connector5V, JST-SH PWM 4PIN connectorNVMePCIe Gen2/3 × 1Power input5V 5ADimensionsthe base board: 160 × 90 (mm)with metal case: 200.5 × 97.5 × 31.0 (mm)Connecting with Compute Module 5

standard CM5 socket and Raspberry Pi 40PIN GPIO header
suitable for all variants of Compute Module 5

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

Supports M.2 NVMe Solid State Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive

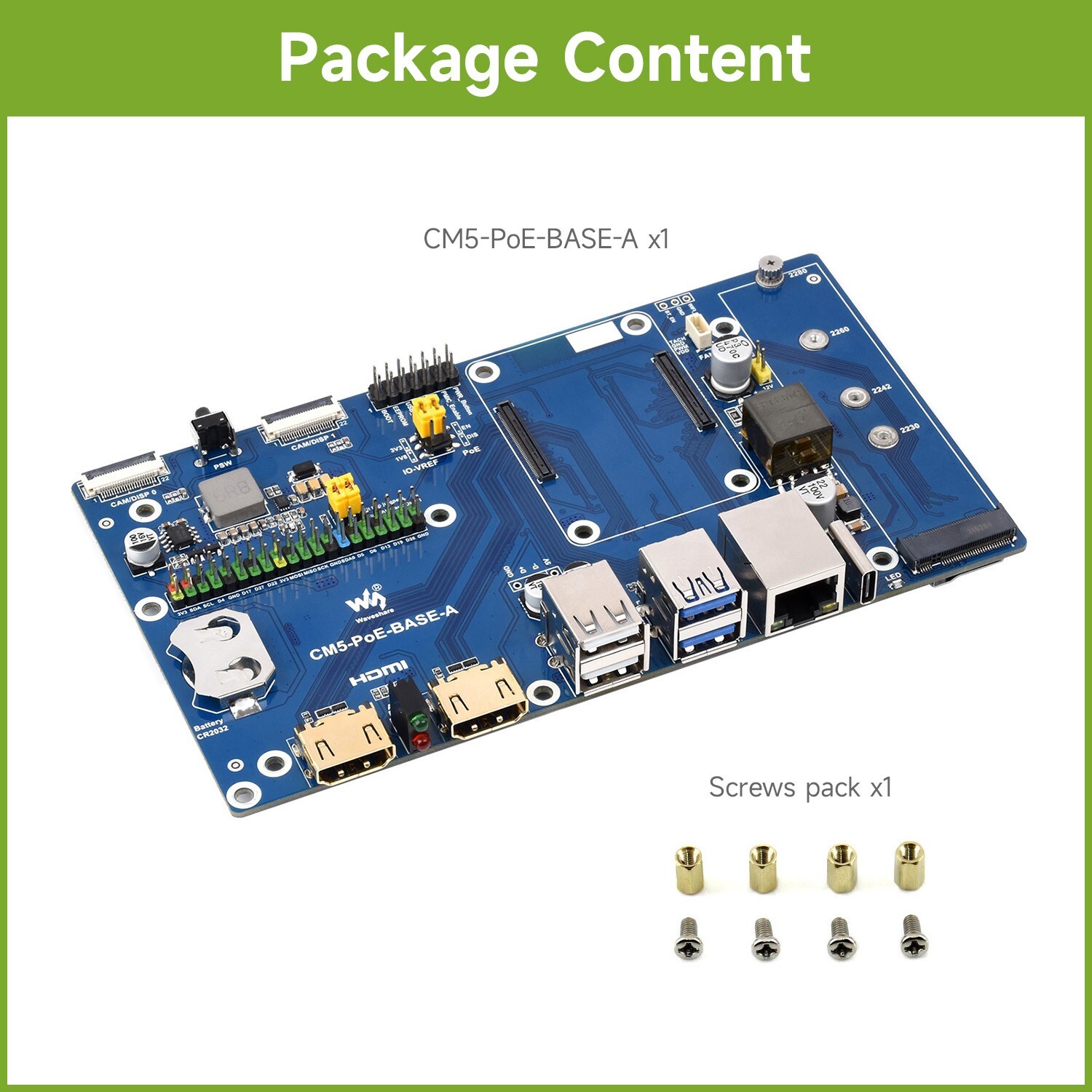

* for reference only, please refer to the Package Content for detailed part list

Compatible with multiple sizes
NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Rich peripheral connectors

onboard connectors including MIPI / M.2 / HDMI / USB / ETH / TF Card Slot

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Cooling fan included

comes with cooling fan, combined with the airflow vent, better heat dissipation

Wall mount support

wall mount holes on two sides, handy for mounting

Application examples

Ideal for Raspberry Pi applications with multiple peripheral requirements, or other industrial context

* for reference only, please refer to the Package Content for detailed part list

What's On Board

CM5 socket
Suitable for all variants of Compute Module 5
USB Type-C power supply / programming
5V/5A power supply, also allows burning system image intoCompute Module 5 variants
M.2 Solid State Drive indicator
Keeps blinking while reading/writing
M.2 M key
Compatible with 2280/2260/2242/2230 NVMe drives or AI accelerator module
Dual MIPI interfaces
for connecting DSI LCDs or CSI cameras
PSW button
power button
40PIN GPIO header
for connecting various HATs
RTC battery holder
Supports CR/ML2032 button cell
HDMI ports
2x HDMI ports, supports dual 4K output
Status indicators
ACT: Raspberry Pi operating status indicator
PWR: Raspberry Pi power indicator

USB2.0 ports
2x USB2.0 ports, for connecting sorts of USB devices
USB 3.2 Gen1 ports
2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
Gigabit Ethernet connector
Gigabit Ethernet RJ45 with PoE support
FAN connector
for connecting cooling fan
Misc configurations
for extending other functions
IO-VREF/PoE selection
CM5 IO logic level: 3.3V or 1.8V
PoE: enable (EN) or disable (DIS)
CAM1 and DISP1 I2C bus
fit the jumpers when using CAM1 or DISP1
TF card slot (bottom side)
insert a TF card with pre-burnt system, to start up Compute Module 5 Lite
