Description
Package Content ForCompute Module 5 Development Kit, pls refer to https://www..com/itm/256747953982
Weight:0.107 kg
Compute Module 5 IO Board
- Compute Module 5 IO Board x1
- Jumper (3pcs) x1
1 2 Compute Module 5 IO Case
Compute Module 5 IO Case x1
Official Raspberry Pi Compute Module 5 IO Board, A Development Platform And Reference Base-board Designed For CM5, Suitable For All Variants Of Compute Module 5, Options For Case And Development Kit Compute module 5 IO Board

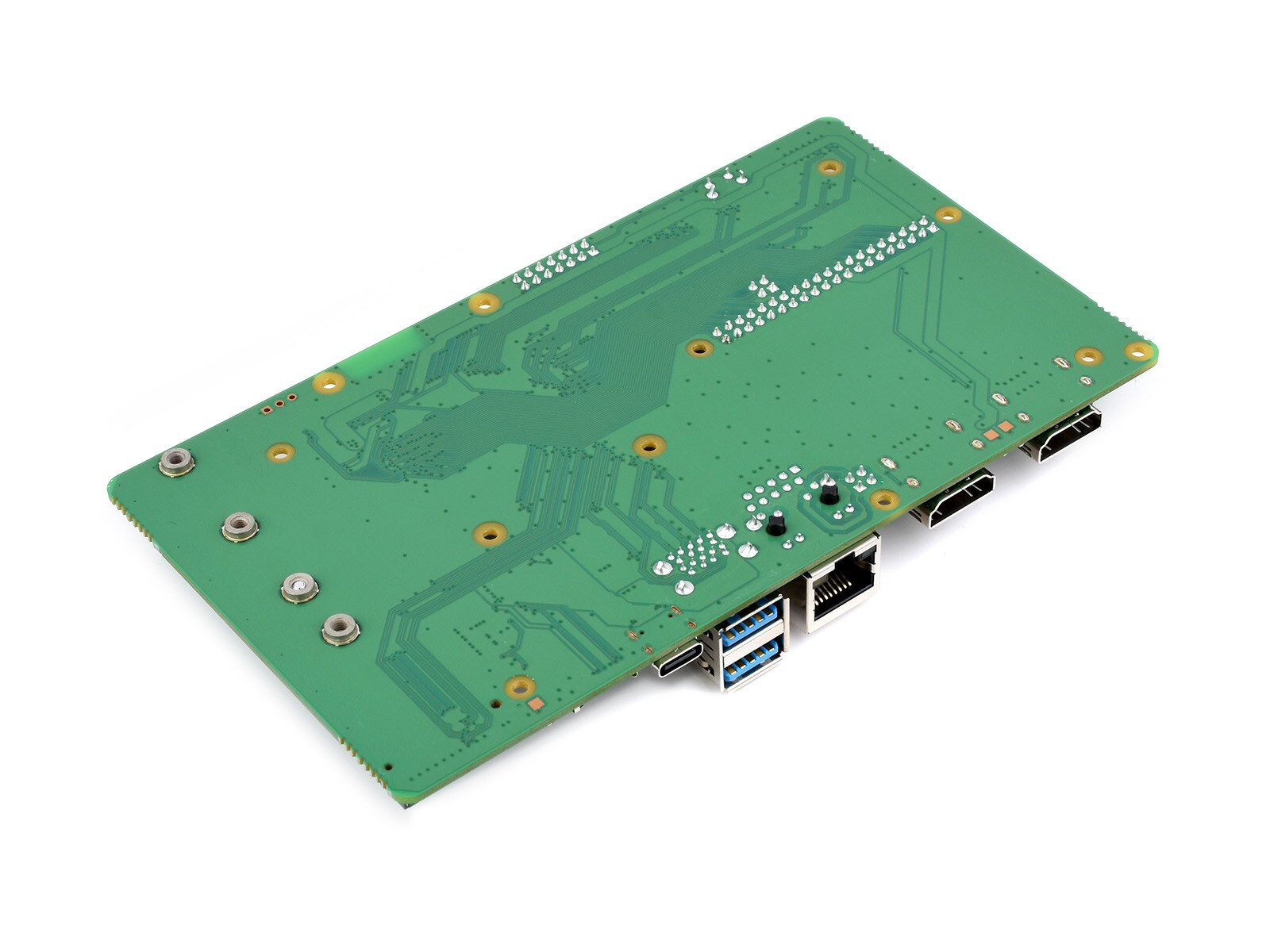

TheCompute Module 5 IO Boardis a companion board for Raspberry Pi Compute Module 5. It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.
Version Options
Compute Module 5 IO Board
the CM5 IO Board ONLY
Compute Module 5 IO Case
official CM5 IO Board case ONLY
(the IO Board is NOT included)
Compute Module 5 Development Kit
CM5 IO Board + official case + CM5104032
Compute Module 5 Specifications Processor Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz Memory 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant) Storage 0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate Connectivity Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options Onboard Gigabit Ethernet PHY supporting IEEE1588 1 × USB 2.0 interface 2 × USB 3.2 Gen1 interface 1 × PCIe Gen 2 x1 interface 28 GPIO signals SD card interface for SD card (for use only with Compute Module 5 variants without eMMC) Video 2 × HDMI interface (up to 4Kp60 supported) 2 × 4-lane MIPI interface Multimedia 4Kp60 HEVC decoder OpenGL ES 3.1 graphics, Vulkan 1.3 Input power 5V DC RTC Built-in Real-time clock (RTC), powered from external battery Operating voltage -20°C ~ 85°C ambient Dimensions 55 × 40 × 4.7mm
IO Board Specifications CM5 socket Suitable for all variants of Compute Module 5 network Gigabit Ethernet RJ45 port Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required Connectors Raspberry Pi 40PIN GPIO header M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors USB 2 x USB3.2 Gen1 connectors
1 x Type-C port for updating Compute module 5 MIPI 2 x 4-lane MIPI DSI/CSI-2 connectors Video 2 x HDMI ports with 4K support RTC CR / ML2032 battery socket Storage socket MicroSD card socket for Compute Module 5 Lite (without eMMC) variants Fan connector 5V, JST-SH PWM 4PIN connector Power input 5V @5A via Type-C port, the same standard as the Raspberry Pi 5 Dimensions 160 × 90mm
Supports M.2 NVMe Solid State Drive
Faster reading/writing speed compared to the Micro SD slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive
* for reference only, the Solid State Drive is NOT included
Compatible with multiple M.2 Drive sizes
supports 2280 / 2260 / 2242 / 2230 form factors
NVMe Drive Slot Support
Note: Only supports the NVMe Protocol Solid State Drives.
Raspberry Pi Compute Module 5 IO Case
Official CM5 IO Board metal case, comes with DC brushless cooling fan, combined with the airflow vent, better heat dissipation
Compute Module 5 Onboard Resources
Interface introduction
Compute Module 5 IO Board
Compute Module 5 Development Kit
Product show
* for reference only, please refer to the Package Content for detailed part list
outline dimensions
Compute Module 5 IO Board
Compute Module 5 Development Kit
