DESCRIPTION
5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface, Options For 5G Module5G DONGLE MODULEM.2 TO USB 3.1 port

Supports SIMCom / Quectel / Fibocom 5G Module

* Note: the 5G module is NOT included in theUSB TO M.2 B KEYkit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to theKit Selectiontable for more details.

Features At A Glance

• Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom, Quectel, and Fibocom 5G modules
• Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
• USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
• 4x SMA antenna connectors, easy to install the antenna
• Onboard SIM card slot for NANO SIM card
• Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
• PCB ENIG process, reserved multi slots and positioning holes for integration
• Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable

Compatible 5G style="box-sizing: STANDARD3GPP R153GPP R163GPP R153GPP R16APPLICABLE REGIONSexcept AmericasAmericasChina, EMEA, Asia-PacificRM500Q-GL: Global (except US)
RM502Q-AE: Global (except China)GlobalCHIPQualcomm Snapdragon X55Qualcomm Snapdragon X62UNISOCQualcomm Snapdragon X55Qualcomm Snapdragon X62FREQUENCY BANDSub-6Gn1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n795G NR NSA：n41, n78, n79;
5G NR SA：n1, n3, n5, n8, n28, n41, n77, n78, n7RM500Q-GL: n41, n77, n78, n79;
RM502Q-AE (5G NR NSA): n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n795G NR NSA:n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79LTE-FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71B1, B2, B3, B5, B7, B8B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71LTE-TDDB34, B38, B39, B40, B41, B42, B43, B48B38, B39, B40, B41, B42, B43B41, B46, B48B34, B38, B39, B40, B41B34, B38, B39, B40, B41, B42, B43, B48LAA-B46WCDMAB1, B2, B3, B4, B5, B8B1, B5, B8B2, B4, B5B1, B2, B5, B8B1, B2, B3, B4, B5, B6, B8, B19B1, B2, B4, B5, B8, B19GNSSRM500U-CNV: does not support GNSS
RM500Q-GL, RM502Q-AE: supports GPS / GLONASS / BeiDou(Compass) / Galileo
SIM8202G-M2, SIM8262X-M2, RM5X0N-GL: supports GPS / GLONASS / BeiDou(Compass) / Galileo / QZSSNote: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.
Multiple Size Compatibility

Compatible With 3042 / 3052 Form Factor

Connection Examples

Supports Directly Connect Or Access Via The USB Cable To Windows PC, Raspberry Pi 4B/3B+, CM4-IO-BASE-A/B And Jetson Nano Series

connecting with Raspberry Pi 4B

Connect to PC with USB cable

Connect to Jetson Nano

for reference only, the modules in the pictures are not included.
USB Cable Upgrade

Upgrades To A USB3.0 Extension Cable With An Auxiliary Power Supply Port, Prevent The Power Insufficient Issue Of The USB Port When 5G Module Power Consumption Is Too High, Which May Affect The Networking And Speed Measurement Effect Of The Module

Multi System Support, Easy To Use

Supports Windows/Linux

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Aluminum Alloy Heatsink

Effective Heat Dissipation For 5G Module, Protect Your HAT At The Same Time

Product ShowOutline Dimensions

* Note: The above dimensions are measured manually, there is a certain error

Resources & Services
Kit TO M.2 B KEY5G DONGLE module, Supports USB 3.1 to 5G, 5G module is NOT included and needs to be purchased separatelyThe 5G module needs to be purchased separately. Compatible with SIMCom/Quectel/Fibocom 5G modules in thetableaboveRM520N-GL 5G DONGLE5G DONGLE module, Supports USB 3.1 to 5G, includesRM520N-GLglobal band 5G moduleComes with Qualcomm global band RM520N-GL 5G Sub-6G module for testing and evaluating, supports accessing 5G network via USB3.1 portRM530N-GL 5G DONGLE5G DONGLE module, Supports USB 3.1 to 5G, includesRM530N-GLglobal band 5G moduleComes with Qualcomm global band RM530N-GL 5G Sub-6G & mmWave module for testing and evaluating, supports accessing 5G network via USB3.1 port
PACKAGE CONTENT

Weight:0.151 kg

USB TO M.2 B KEY

1. USB TO M.2 B KEY x 1
2. Aluminum Alloy case (top and bottom) x 1
3. Antenna x 4
4. IPEX adapter cable x 4
5. USB3.0 female to dual USB male extension cable x 1
6. SMA Protective Cap x 4
7. Thermal tape x 1
8. Screws pack x 1

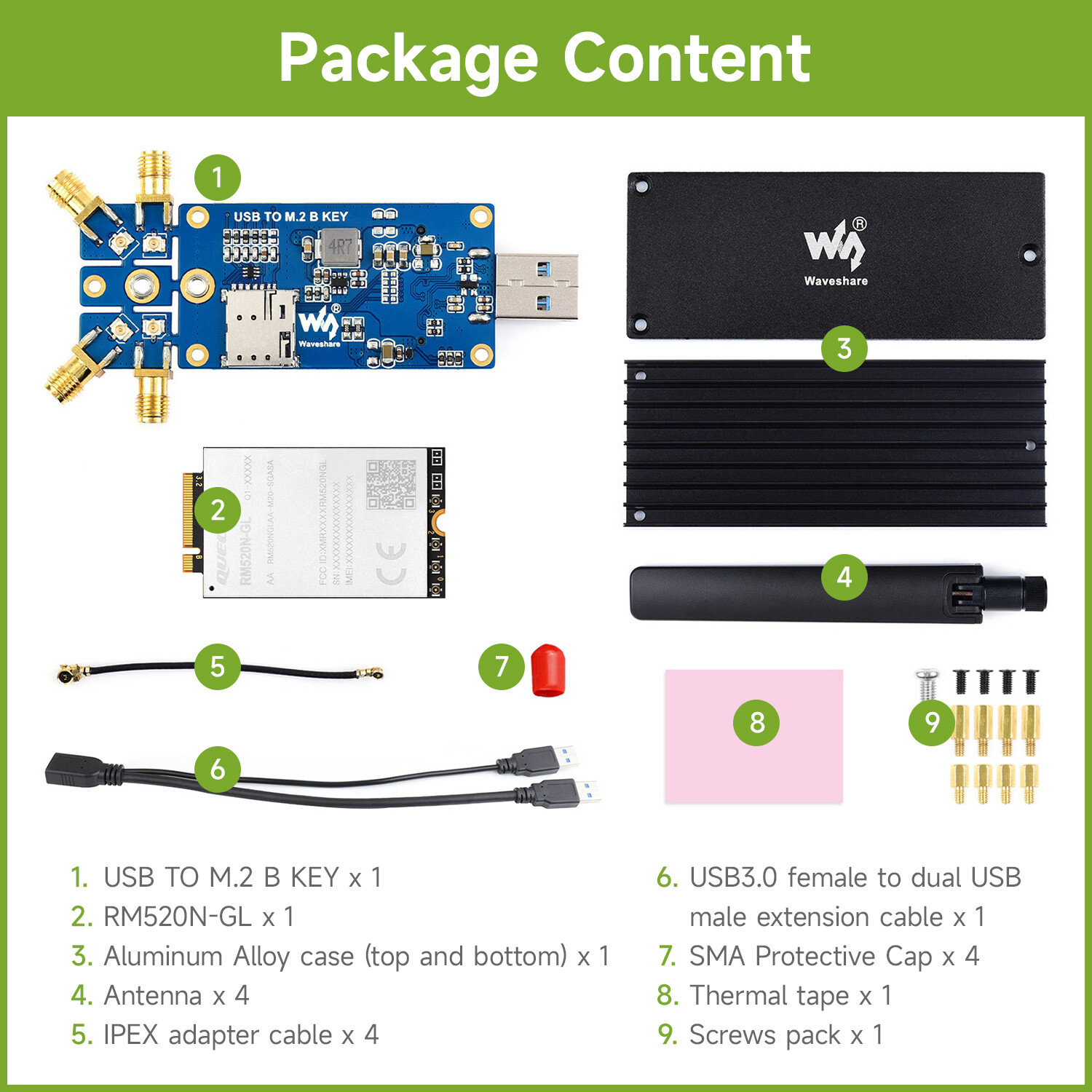

RM520N-GL 5G DONGLE

1. USB TO M.2 B KEY x 1
2. RM520N-GL x 1
3. Aluminum Alloy case (top and bottom) x 1
4. Antenna x 4
5. IPEX adapter cable x 4
6. USB3.0 female to dual USB male extension cable x 1
7. SMA Protective Cap x 4
8. Thermal tape x 1
9. Screws pack x 1

RM530N-GL 5G DONGLE

1. USB TO M.2 B KEY x 1
2. RM530N-GL x 1
3. Aluminum Alloy case (top and bottom) x 1
4. Antenna x 4
5. IPEX adapter cable x 4
6. USB3.0 female to dual USB male extension cable x 1
7. SMA Protective Cap x 4
8. Thermal tape x 1
9. Screws pack x 1
