Waveshare 4 / 4.3inch DSI Capacitive Touch Display, 480×800, IPS Display Pane
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 4 / 4.3inch DSI Capacitive Touch Display, 480×800, IPS Display Pane
Price: CN $43.99
Description
4 / 4.3inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS display panel, 5-Point Touch, optical bonding toughened glass panel4 / 4.3inch DSI Touch Display

The display orientation is portrait by default, 480 × 800 resolution (H × V).
Change the software config for landscape display.




  • Size4″ / 4.3″
  • Resolution480 × 800
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points5-Point
  • Touch InterfaceI2C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • EnclosureAluminum Alloy

Version Options

4-DSI-TOUCH-A
4inch touch display, 480 × 800 resolution

4.3-DSI-TOUCH-A
4.3inch touch display, 480 × 800 resolution

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch
RK3506Supports Buildroot, Ubuntu, and other systems, 5-point touch
ESP32-P4Supports LVGL GUI programs, 5-point touch
RK3576Supports Buildroot, Debian, Ubuntu, Android, and other systems, 5-point touch
LCD × 800 pixels (H × V)Contrast Ratio800:11000:1Display ICST7701STouch ICGT911Communication InterfaceMIPI Dimensions108.30 × 65.10 (mm)116.50 × 68.90 (mm)Display Area86.40 × 51.84 (mm)93.60 × 56.16 (mm)Connection Examples

Working with Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD
through the GPIO 5V pin


Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD
through the GPIO 5V pin


Working with ESP32-P4-Module-DEV-KIT



Working with Luckfox Omni3576



Working with Luckfox Lyra



* for reference only, the above boards or hosts are NOT included.


IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle


5-Point Capacitive Touch
  1. up to 5-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and Dust-Resistant
Supports backlight adjustment via softwareInterface IntroductionOutline Dimensions

4-DSI-TOUCH-A


4.3-DSI-TOUCH-A

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 15 years.

Resources & ServicesPackage Content

Weight:0.115 kg

4-DSI-TOUCH-A
  1. 4-DSI-TOUCH-A x1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable 110mm x1
  4. FFC 22PIN cable ~200mm (opposite sides) x1
  5. FFC 22PIN cable ~100mm (opposite sides) x1
  6. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  7. Standoffs x1

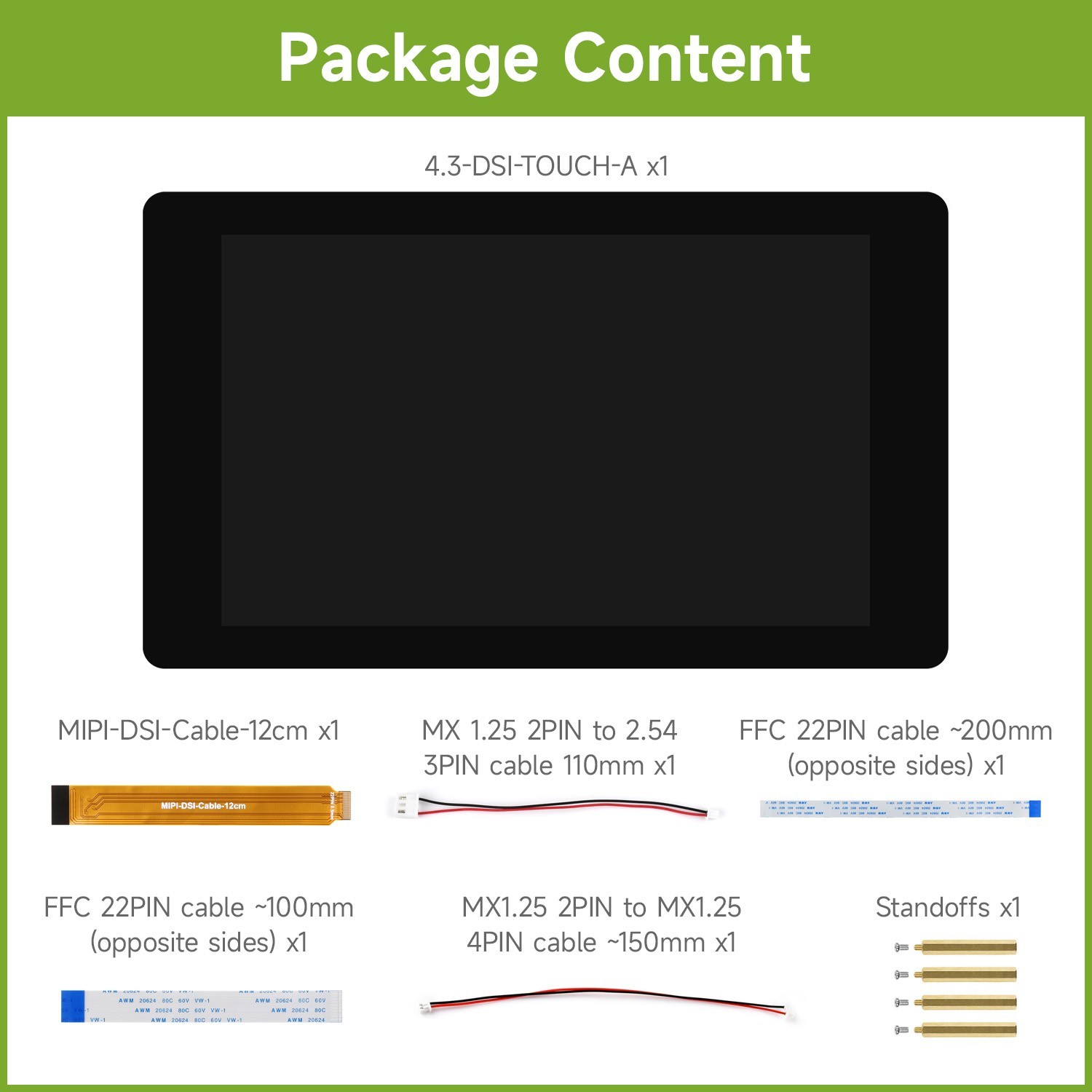

12345674.3-DSI-TOUCH-A
  1. 4.3-DSI-TOUCH-A x1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable 110mm x1
  4. FFC 22PIN cable ~200mm (opposite sides) x1
  5. FFC 22PIN cable ~100mm (opposite sides) x1
  6. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  7. Standoffs x1
1234567
