WAVLINK WiFi 7 Router 5100Mbps 3600Mbps Outdoor Extender Wireless Mesh System For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

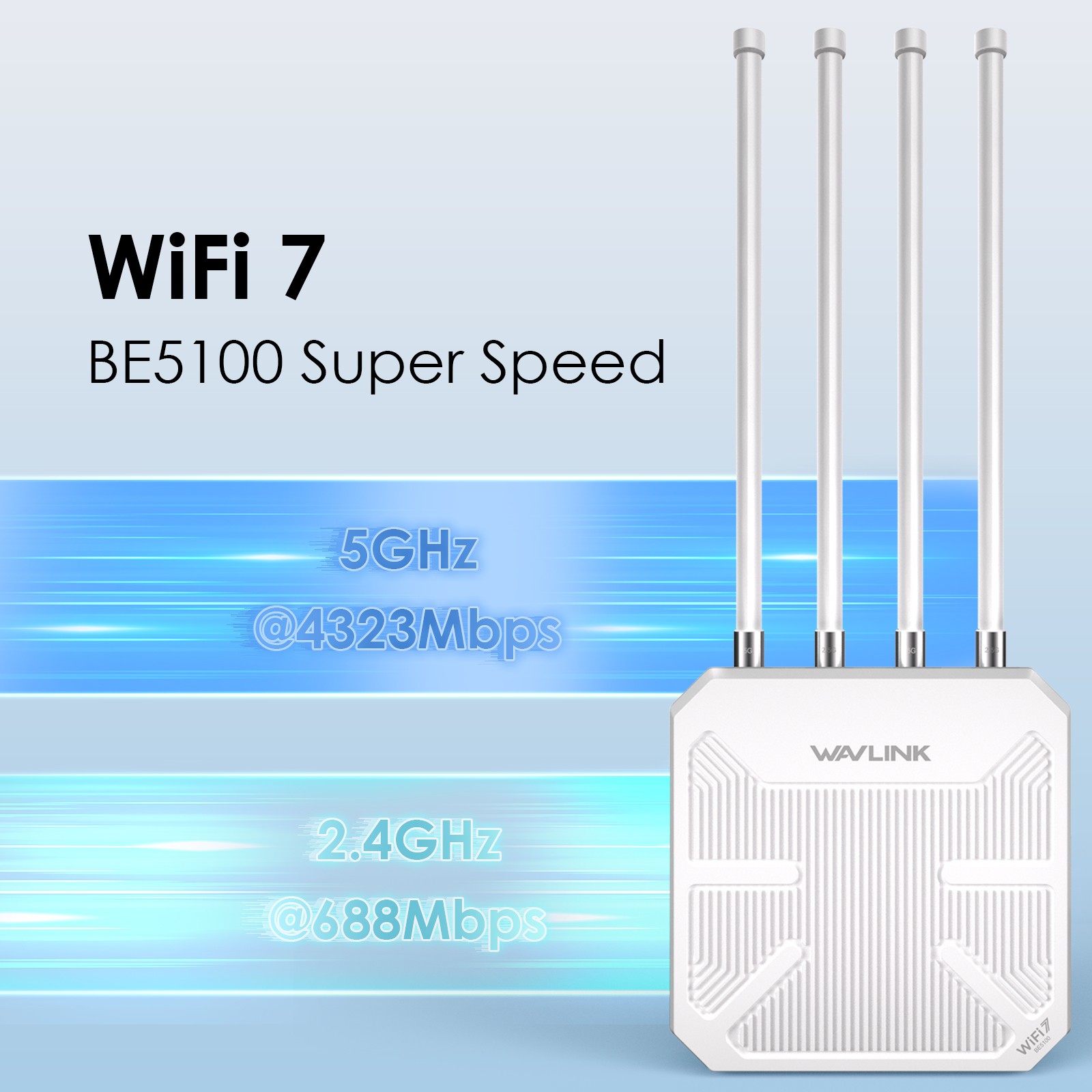

WAVLINK WiFi 7 Router 5100Mbps 3600Mbps Outdoor Extender Wireless Mesh System

Price: US $239.96

WAVLINK Wi-Fi 7 Routers — BE5100 Outdoor, BE5100 Indoor & BE3600 Indoor WAVLINK Wi-Fi 7 SeriesBE5100 Outdoor · BE5100 Indoor · BE3600 Indoor
Wi-Fi 7 Router Line-Up

Three Wi-Fi 7 routers, one perfect fit. Conquer rain, dust and long distances with the BE5100 Outdoor. Upgrade your whole home with the BE5100 Indoor and its 2.5G WAN. Or cover everyday living with the BE3600 Indoor. Find your match in seconds.

Product Comparison at a Glance

Split into two compact tables so every spec stays clear and easy to read.

1Table 1 · Wireless Performance & NetworkingSpecificationBE5100 Wi-Fi 7 Router
— OutdoorBE5100 Wi-Fi 7 Router
— IndoorBE3600 Wi-Fi 7 Router
— IndoorWi-Fi StandardOutdoor
Wi-Fi 7 Dual Band
IEEE 802.11be / ax / ac / a / n / g / bIndoor
Wi-Fi 7 Dual Band
IEEE 802.11b / g / n / a / ac / ax / beIndoor
Wi-Fi 7 Dual Band
IEEE 802.11b / g / n / a / ac / ax / be2.4 GHz Speed688 Mbps688 Mbps688 Mbps5 GHz Speed4323 Mbps4323 Mbps2882 MbpsCombined SpeedUp to 5100 MbpsUp to 5100 MbpsUp to 3600 MbpsAntenna System4 × 8 dBi omnidirectional fiberglass-tube high-gain antennas + 1 × 5 dBi near-ground antenna5 dBi omnidirectional high-gain antennas with beamforming technology5 dBi omnidirectional high-gain antennas with beamforming technologyCoverage360° long-range outdoor coverage, dedicated antenna eliminates near-ground dead zonesUp to 1,700 sq.ft. of reliable indoor coverageUp to 1,700 sq.ft. of seamless whole-home coverageAdvanced Wi-Fi 7 TechWi-Fi 7 dual-band engine for blistering throughput and near-zero latency4096-QAM · OFDMA · UL/DL MU-MIMO · 160 MHzMLO · 4096-QAM · Multi-RU · OFDMA · UL/DL MU-MIMO · 160 MHzMesh NetworkingWAVLINK Everything Mesh — one-touch pairingWAVLINK Everything Mesh — single SSID whole-home roamingWAVLINK Everything Mesh — single SSID whole-home roamingOperation ModesRouter / AP / Repeater / Mesh Router / Mesh Extender (5 modes)EverythingMesh / Router / AP / RepeaterEverythingMesh / Router / AP / RepeaterWireless SecurityWPA3-SAE / WPA2-PSK, WPA2-PSK, WPA PSK / WPA2PSK-MIXWPA2/WPA3-PSK MIX, WPA/WPA2-EnterpriseWPA2/WPA3-PSK MIX, WPA/WPA2-EnterpriseSecure Remote AccessUnified single-SSID scaling across all modesOpenVPN & WireGuard supportedOpenVPN & WireGuard supported2Table 2 · Hardware, Power & DeploymentSpecificationBE5100 Wi-Fi 7 Router
— OutdoorBE5100 Wi-Fi 7 Router
— IndoorBE3600 Wi-Fi 7 Router
— IndoorEthernet Ports1 × 2.5G WAN/LAN1 × 2.5G WAN + 4 × Gigabit LAN1 × Gigabit WAN + 3 × Gigabit LANPower SupplyActive PoE (802.3at/af) & Passive PoE
DC 48 V (Active) / DC 54 V (Passive)
100–240 V, 50–60 Hz adapterDC power adapter (100–240 V input)DC power adapter (100–240 V input)Power AccessoryPassive PoE converter includedPower adapter includedPower adapter includedWeather & Dust ProtectionIP67 waterproof & dustproof enclosure — built for extreme outdoor environmentsSlim, well-ventilated indoor design for homes and officesSlim, well-ventilated indoor design for homes and officesSurge & Static Protection15 KV ESD + 4 KV lightning surge protectionEnterprise-grade encryption and firewall protectionEnterprise-grade encryption and firewall protectionConcurrent DevicesHigh-density outdoor deployments with mesh expansionEfficient multi-device connectivity via OFDMA + 4×4 UL/DL MU-MIMO32+ devices simultaneously via OFDMA + 2×2 UL/DL MU-MIMOIdeal DeploymentFarms, orchards, resorts, marinas, industrial sites, campuses, festival groundsLarge homes, home offices, heavy gaming, content creation, multi-gig broadbandApartments, houses, home offices, gaming setups, small officesQuick SetupOne-touch WAVLINK Everything Mesh pairingWavRouter App or 192.168.20.1 web interfaceWavRouter App or 192.168.20.1 web interfaceModel No.WN573HBE2WL-WN530BE2WL-WN530BE1Which One Fits Your Scenario?

Match the router to the environment and get the most out of your network from day one.

🌾 Choose the BE5100 Outdoor Router

For long range, harsh weather & flexible power

Farms, orchards & agricultural parks — long-range coverage across fields, barns and storage areas.
RV parks, marinas & coastal sites — IP67 protection keeps performance strong in rain, spray and salt air.
Mountain resorts & outdoor camps — 15 KV ESD and 4 KV lightning defense for storm-prone locations.
Industrial parks, mines & construction sites — dustproof, waterproof and built to survive tough sites.
Music festivals, markets & temporary events — Passive PoE delivers cost-effective long-distance power.
Schools, hospitals & campuses — Active PoE 802.3at/af means true plug-and-play deployment.
Warehouses, parking lots & large grounds — 360° coverage with zero dead zones.

🏡 Choose the BE5100 Indoor Router

For whole-home 5100 Mbps & 2.5G wired speed

Large homes, villas & duplexes — 5100 Mbps combined speed with up to 1,700 sq.ft. coverage per unit.
Multi-gig fiber broadband users — the 2.5G WAN port unleashes the full speed of your ISP plan.
Heavy gamers & 4K/8K streamers — 4096-QAM and 160 MHz bandwidth for ultra-low latency.
Home offices & content creators — 4 × Gigabit LAN for wired workstations, NAS and consoles.
Smart homes with many devices — OFDMA + 4×4 UL/DL MU-MIMO keep every device fast.
Shared houses & guest hosting — Guest WiFi plus parental control keep networks clean and private.
Mesh-ready whole-home setups — EverythingMesh creates one unified network with a single SSID.

🏠 Choose the BE3600 Indoor Router

For everyday homes, gaming & smart living

Apartments, flats & duplexes — MLO dual-band aggregation for smooth whole-home roaming.
Gamers & 4K streamers — 4096-QAM and 160 MHz bandwidth for responsive online play.
Home offices — OpenVPN and WireGuard for secure remote access to your home network.
Smart homes with many devices — OFDMA + MU-MIMO handle 32+ devices at once.
Shared houses & guest hosting — Guest WiFi and VLAN keep networks clean and private.
Families with children — Parental Controls, AdGuard Home and QoS for a safer online space.
Small offices & studios — full Gigabit ports plus QoS traffic prioritization.

Product Details

Full feature breakdown for all three Wi-Fi 7 models.

BE5100 Wi-Fi 7 Router — Outdoor Use

Long Range Router · Dual Band BE5100 Mesh Router · IP67 Waterproof & Dustproof · 15 KV ESD & 4 KV Lightning Protection · Active & Passive PoE Supported · 8 dBi High-Gain Antennas

Wi-Fi 7 Dual Band Up to 5100 Mbps IP67 Waterproof 15 KV ESD + 4 KV Lightning Active & Passive PoE 4 × 8 dBi Fiberglass Antennas Everything Mesh 2.5G WAN/LAN Next-Gen Wi-Fi 7 Performance

Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology, delivering blazing speeds of 688 Mbps on 2.4 GHz and 4323 Mbps on 5 GHz for a combined throughput up to 5100 Mbps. Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.

Strong Environmental Resilience

Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure shrugs off torrential rains, dust storms and debris. Built-in 15 KV ESD protection and 4 KV lightning surge defense safeguard critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites or mountainous terrain.

Flexible Enterprise & Rural Power Options

Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective, long-range power for rural farms, orchards and music festivals.

Expansive Coverage with Intelligent Roaming

Four 8 dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas, while the dedicated 5 dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh, one-click connection creates a unified mesh network.

Five Adaptive Operation Modes

Transform this router to fit any scenario: Router/AP mode converts wired networks to Wi-Fi hotspots; Repeater extends weak signals; Mesh Router/Extender creates seamless multi-node systems; and Mesh AP integrates with existing infrastructure. Maintain a single network name (SSID) across all modes for effortless scaling.

WAVLINK outdoor router — the ultimate alfresco network solution! Wi-Fi 7 dual-band technology for blistering combined speeds up to 5100 Mbps (688 Mbps on 2.4 GHz + 4323 Mbps on 5 GHz). Enjoy seamless browsing, zero-lag gaming and buffer-free 4K streaming with effortless roaming across outdoor spaces. Built to conquer extreme environments, its IP67-rated waterproof/dustproof enclosure shrugs off monsoons and debris, while 15 KV ESD + 4 KV lightning protection shields internal electronics from violent storms. Power it flexibly via Active PoE (ideal for plug-and-play deployments in schools/hospitals) or Passive PoE (cost-effective long-range power for farms/orchards). Four rugged 8 dBi fiberglass antennas deliver 360° long-range coverage, while a dedicated 5 dBi antenna eliminates near-ground dead zones. Create a unified mesh network instantly with one-touch WAVLINK Everything Mesh pairing, and choose from 5 versatile modes — Router, AP, Repeater, Mesh Router or Mesh Extender — to adapt to any scenario without signal drops.

Why You'll Love ItWi-Fi 7 Performance

Next-generation Wi-Fi 7 dual-band technology supports super-speed wireless up to 5100 Mbps, including 4323 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.

Weatherproof Design

IP67 waterproof and dustproof, 15 KV ESD and 4 KV lightning protection — designed for extreme outdoor environments.

WPA3-SAE Encryption

WPA3-SAE can significantly reduce risks such as network eavesdropping, man-in-the-middle attacks and data theft.

Active and Passive PoE

Both Active and Passive PoE are supported. Install the corresponding PoE converter according to your needs — Passive PoE converter included.

Fiberglass Tube High-Gain Antennas

4 × 8 dBi omnidirectional antennas are covered by strong fiberglass tubes, expanding signal coverage and withstanding harsh conditions for superior Wi-Fi performance and a longer service life.

2.5G Wired Uplink

One 2.5G WAN/LAN port keeps your wired backhaul ahead of the wireless speed curve.

Specifications

Frequency: dual-band 2.4 GHz @ 688 Mbps + 5 GHz @ 4323 Mbps, speed up to 5100 Mbps
Ethernet port: 1 × 2.5G WAN/LAN
Antennas: 4 × 8 dBi + 1 × 5 dBi high-gain antennas
Operation modes: Mesh AP, AP, Repeater, Mesh Router, Mesh Extender
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX
Power adapter: 100–240 V / 50–60 Hz; DC 54 V (Passive PoE); DC 48 V (Active PoE)
Protection: IP67 waterproof, 15 KV ESD, 4 KV lightning protection
Standards: complies with IEEE 802.11 be/ax/ac/a/n/g/b
PoE: supports 802.3 AT/AF PoE and Passive PoE power supply

Installation Tips

The PoE converter is not waterproof; please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m / 328 ft.
Please install the product 2–3 meters above the ground for better performance.
Under mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*latest firmware required) and WN573HBE2.

Packing List 1 × BE5100 WiFi 7 Outdoor AP 1 × 54 V Power Adapter 1 × PoE Converter 1 × Ethernet Cable 1 × Main Body Holder 4 × Omni Antennas 2 × Stainless Steel Hose Clamps 2 × Silicone Pads 1 × Slotted Screwdriver 1 × Wrench 1 × Quick Start Guide Several Screws BE5100 Wi-Fi 7 Router — Indoor Use

WAVLINK BE5100 Wi-Fi 7 Router · Dual Band Gaming Router with 4096-QAM Tech · EverythingMesh / Router / AP / Repeater Mode · Guest WiFi · QoS · IPv6 & Advanced VPN for Home WiFi

Wi-Fi 7 Dual Band Up to 5100 Mbps 4096-QAM + 160 MHz 4×4 UL/DL MU-MIMO 2.5G WAN + 4× Gigabit LAN OpenVPN & WireGuard Everything Mesh Up to 1,700 sq.ft. Next-Generation Wi-Fi 7 Speed

Experience ultra-fast Wi-Fi 7 performance with 4096-QAM modulation, delivering up to 688 Mbps at 2.4 GHz and 4323 Mbps at 5 GHz. Enjoy seamless dual-band operation for optimized streaming, gaming and browsing. Equipped with one 2.5 Gigabit WAN and four LAN ports for versatile connectivity.

Seamless Whole-Home Coverage

Achieve uninterrupted WiFi coverage with Everything Mesh. Create a single WiFi network for seamless whole-home coverage by simply adding a mesh extender. Ensure high-speed WiFi throughout larger spaces, eliminating signal drops and frustrating lags as you move around your home. Enjoy consistent connectivity without the need to manually switch networks.

Enhanced Connectivity

Robust Wi-Fi coverage is ensured by 5 dBi omni-directional antennas and beamforming technology, providing reliable connectivity across up to 1,700 sq.ft. Support for OFDMA and 4×4 UL/DL MU-MIMO enables efficient multiple-device connectivity, reducing latency for busy households.

Top-Tier Security

Safeguard your network with cutting-edge encryption standards like WPA/WPA2-Enterprise and WPA2/WPA3-PSK MIX, ensuring data confidentiality and integrity. Support for OpenVPN and WireGuard allows secure remote access to your home network's VPN server. Protect against unauthorized access and cyber threats, ensuring a secure online environment for all devices.

Effortless Setup & Management

Quickly configure your WiFi 7 router using the intuitive WavRouter app or by entering 192.168.20.1 in your browser. Explore features such as guest Wi-Fi, parental controls and QoS settings for enhanced network control. Guided steps ensure a swift setup process, getting your network up and running smoothly in no time.

WAVLINK BE5100 Dual-Band Mesh Router (Skyline Stream 5) — the BE5100 Wi-Fi 7 router elevates your network to the next level of Wi-Fi performance. With combined wireless speeds of up to 688 Mbps at 2.4 GHz and 4323 Mbps at 5 GHz, it delivers exceptional speeds and superior omnidirectional wireless coverage. Support for 4096-QAM, OFDMA, UL/DL MU-MIMO and 160 MHz bandwidth enables seamless multitasking within large homes or offices. Whether it's sending emails, browsing the web, or engaging in bandwidth-intensive activities like online gaming or streaming 4K video, these tasks can be effortlessly completed.

Why You'll Love ItAdvanced Wi-Fi 7 Technology

4096-QAM, OFDMA, UL/DL MU-MIMO and 160 MHz bandwidth combine for next-generation wireless performance and efficiency.

2.5G WAN + 4 × Gigabit LAN

One 100/1000/2500 Mbps WAN for multi-gig broadband, plus four 10/100/1000 Mbps LAN ports for wired workstations, consoles and NAS.

4×4 UL/DL MU-MIMO

Serve multiple devices at once with reduced latency — ideal for busy homes with many simultaneous streams.

Everything Mesh

Add a mesh extender to create a single WiFi network with one SSID — seamless whole-home coverage with no manual switching.

Top-Tier Security

WPA/WPA2-Enterprise and WPA2/WPA3-PSK MIX protect your data, while OpenVPN and WireGuard enable secure remote access.

IPv6 & Advanced VPN

Full IPv6 support plus OpenVPN and WireGuard let you connect securely to your home network from anywhere.

Enhanced Router Features🏠 Guest WiFi: provide a separate network for guests with limited access.🚫 AdGuard Home: block unwanted content like ads and malware from your network.🔒 Remote Access: easily manage your router settings from anywhere with secure remote access.👧 Parental Controls: monitor and control internet access for different devices, ensuring a safe online environment for your family.⚙️ QoS: prioritize network traffic to optimize performance for specific applications or devices, ensuring a seamless user experience.Basic Info Default IP: 192.168.20.1 Login: http://wavlogin.link 2.4G SSID: WAVLINK-Mesh_XXXX 5G SSID: WAVLINK-Mesh_XXXX Specifications

Model: WL-WN530BE2
Ports: 1 × WAN (2500 Mbps); 4 × LAN (1000 Mbps); 1 × DC in
Button: 1 × Reset (6 s) / Pair (2 s)
Antenna: 5 dBi omni-directional antennas
Wireless standards: IEEE band / speed: 2.4 GHz (688 Mbps) + 5 GHz (4323 Mbps)
Wireless security: WPA2/WPA3-PSK MIX, WPA/WPA2-Enterprise
Unit size (without antennas): 16.8 × 16.8 × 3.3 cm / 6.6 × 6.6 × 1.3 in

Key Features

Band frequency: 2.4 GHz @ 688 Mbps + 5 GHz @ 4323 Mbps, total @ 5100 Mbps
Ethernet ports: 4 × 10/100/1000 Mbps LAN, 1 × 100/1000/2500 Mbps WAN
Antennas: 5 dBi high-gain antennas
Security: WPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Software: WAVLINK Everything Mesh, Guest WiFi, Parental Control
Wi-Fi 7 tech: 4096-QAM, OFDMA, UL/DL MU-MIMO

In the Box 1 × Wi-Fi 7 BE5100 Dual-Band 2.5 Gigabit Router 1 × Power Adapter 1 × RJ45 Ethernet Cable 1 × Quick Start Guide BE3600 Wi-Fi 7 Router — Indoor Use

WAVLINK BE3600 Wi-Fi 7 Router · Dual Band Gaming Router with MLO · 4096-QAM · Multi-RU Technology · EverythingMesh / Router / AP / Repeater Mode · Guest WiFi · QoS · IPv6 & Advanced VPN for Home WiFi

Wi-Fi 7 Dual Band Up to 3600 Mbps MLO + 4096-QAM 160 MHz Bandwidth 32+ Devices Up to 1,700 sq.ft. OpenVPN & WireGuard 4 × Gigabit Ports Next-Generation Wi-Fi 7 Speed

Embark on ultra-fast BE3600 speed with Multi-Link Optimization (MLO) and 4K-QAM modulation. Enjoy seamless two-frequency blending, delivering up to 688 Mbps at 2.4 GHz and 2882 Mbps at 5 GHz for optimized performance. Perfect for smooth browsing, 4K streaming and immersive gaming. The router offers versatile customization options with one Gigabit WAN and three LAN ports.

Seamless Whole-Home Coverage

Enhanced Connectivity

Robust Wi-Fi coverage is ensured by 5 dBi omni-directional antennas and beamforming technology, providing reliable connectivity across up to 1,700 sq.ft. Efficiently distribute bandwidth with Multi-RU allocation, reducing latency and enhancing performance. Supporting 32+ wireless devices simultaneously with OFDMA and 2×2 UL/DL MU-MIMO — ideal for busy households.

Top-Tier Security

Effortless Setup & Management

WAVLINK BE3600 Dual-Band Mesh Router (Skyline Stream 4) — the BE3600 Wi-Fi 7 router elevates your network to the next level of Wi-Fi performance. With combined wireless speeds of up to 688 Mbps at 2.4 GHz and 2882 Mbps at 5 GHz, it delivers exceptional speeds and superior omnidirectional wireless coverage. Support for 4096-QAM, OFDMA, UL/DL MU-MIMO, Multi-RU, MLO and 160 MHz bandwidth enables seamless multitasking within large homes or offices. Whether it's sending emails, browsing the web, or engaging in bandwidth-intensive activities like online gaming or streaming 4K video, these tasks can be effortlessly completed.

Why You'll Love ItAdvanced Wi-Fi 7 Technology

Immerse yourself in the forefront of Wi-Fi 7 technology, embracing unparalleled network performance and efficiency for next-generation wireless connectivity with the BE3600 mesh router.

Full Gigabit Ethernet Ports

Benefit from a Gigabit WAN Ethernet port for high-speed internet and Gigabit Ethernet LAN ports to connect computers, game consoles, streaming players and other wired devices effortlessly.

MLO Dual-Band Aggregation

Optimize network speed and stability with Multi-Link Optimization (MLO) technology by seamlessly blending 5 GHz and 2.4 GHz frequencies, ensuring enhanced performance and smooth connectivity.

Seamless Mesh Networking

Enjoy broad Wi-Fi coverage up to 1,700 sq.ft. and easily set up a mesh network using EverythingMesh technology, enabling the creation of seamless whole-home coverage with a single Wi-Fi name.

Reduced Latency Across Devices

Reduce network congestion with OFDMA + UL/DL MU-MIMO, enabling sharing among up to 32+ devices concurrently. Enjoy improved networking and minimized latency for an optimized experience.

IPv6 & Advanced VPN Ready

Full IPv6 support plus OpenVPN and WireGuard let you connect securely to your home network from anywhere.

Enhanced Router Features🏠 Guest WiFi: provide a separate network for guests with limited access.🌐 VLAN: efficiently segment your network to improve data traffic management.🚫 AdGuard Home: block unwanted content like ads and malware from your network.🔒 Remote Access: easily manage your router settings from anywhere with secure remote access.👧 Parental Controls: monitor and control internet access for different devices, ensuring a safe online environment for your family.⚙️ QoS: prioritize network traffic to optimize performance for specific applications or devices, ensuring a seamless user experience.Specifications

Model: WL-WN530BE1
Ports: 1 × WAN (1000 Mbps); 3 × LAN (1000 Mbps); 1 × DC in
Buttons: 1 × Reset (6 s) / Pair (2 s)
Antenna: 5 dBi omni-directional antennas
Wireless standards: IEEE band / speed: 2.4 GHz (688 Mbps) + 5 GHz (2882 Mbps)
Wireless security: WPA2/WPA3-PSK MIX, WPA/WPA2-Enterprise
Unit size (without antennas): 16.8 × 16.8 × 3.3 cm / 6.6 × 6.6 × 1.3 in
Weight: 396 g / 14 oz

Key Features
