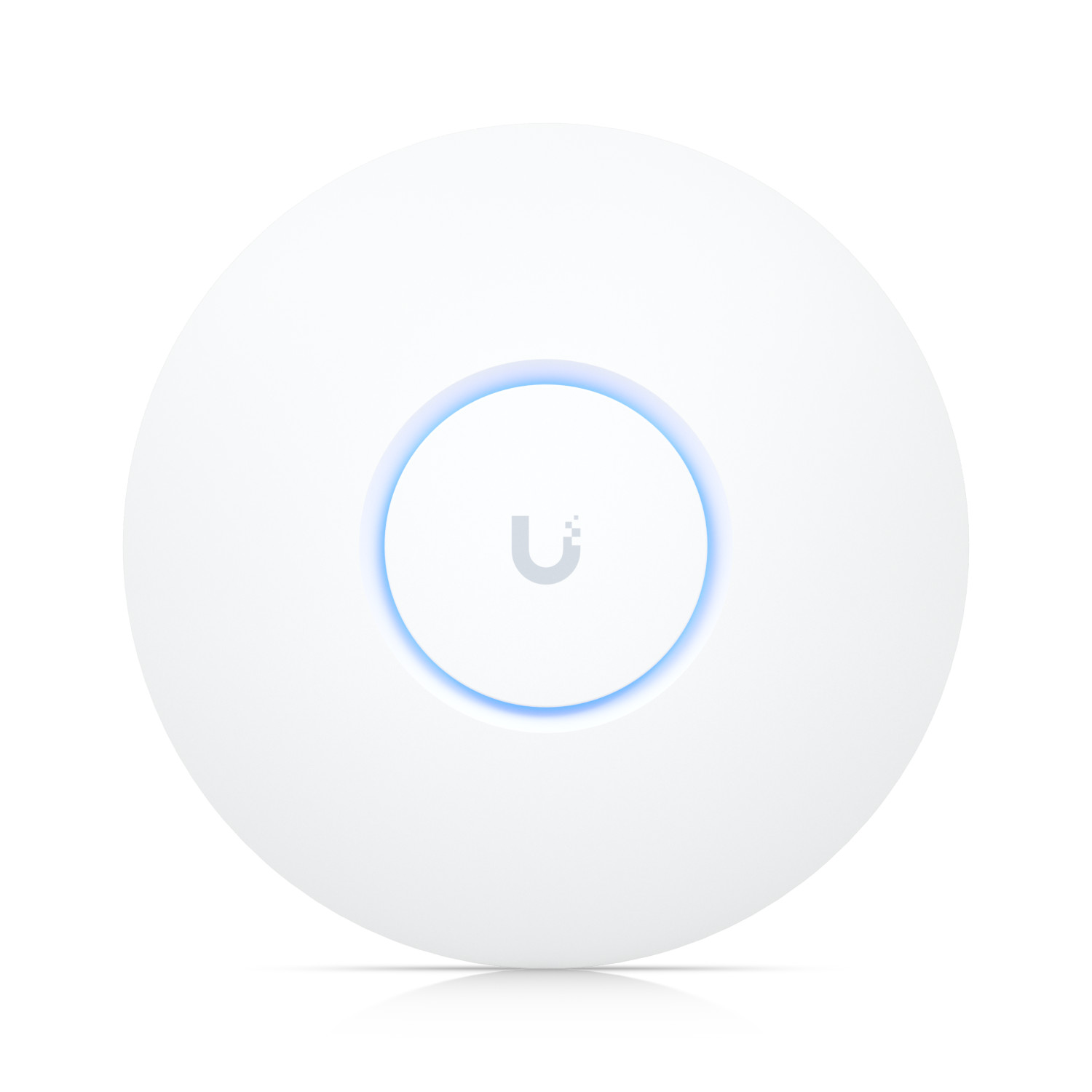

Compact, ceiling-mounted WiFi 5 AP with 6 spatial streams ideal for smaller offices.
Note. PoE power adapter included with single unit purchases.
OverviewDimensions⌀160 x 32.7 mm(⌀6.3 x 1.3")
WiFi StandardWiFi 5
Spatial Streams6Coverage Area140 m² (1,500 ft²)
Max. Client Wall(Lite Mount Included)
Power MethodPoE
PerformanceMIMO5 GHz4 x 4 (DL MU-MIMO)2.4 GHz2 x 2 (DL MU-MIMO)
Max. Data Rate5 GHz1.7 Gbps (BW80)2.4 GHz300 Mbps (BW40)
Antenna Gain5 GHz3 dBi2.4 GHz2.8 dBi
Max. TX Power5 GHz26 dBm2.4 GHz23 dBm
Max. BSSIDs8 per Radio
Supported Data Rates802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
FeaturesWireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓
HardwareMax. Power Consumption10.5W
Includes PoE AdapterNo
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port
WeightDevice: 300 g (10.6 oz)With mount: 315 g (11.1 BandwidthHT 20/40, VHT 20/40/80/160 (MHz)
Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHz
Ambient Operating Temperature-10 to 70° C (14 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
NDAA Compliant✓
CertificationsCE, FCC, IC, cULus, Anatel: 06168-18-08356
SoftwareApplication RequirementsUniFi NetworkVersion 6.0.45 and later
