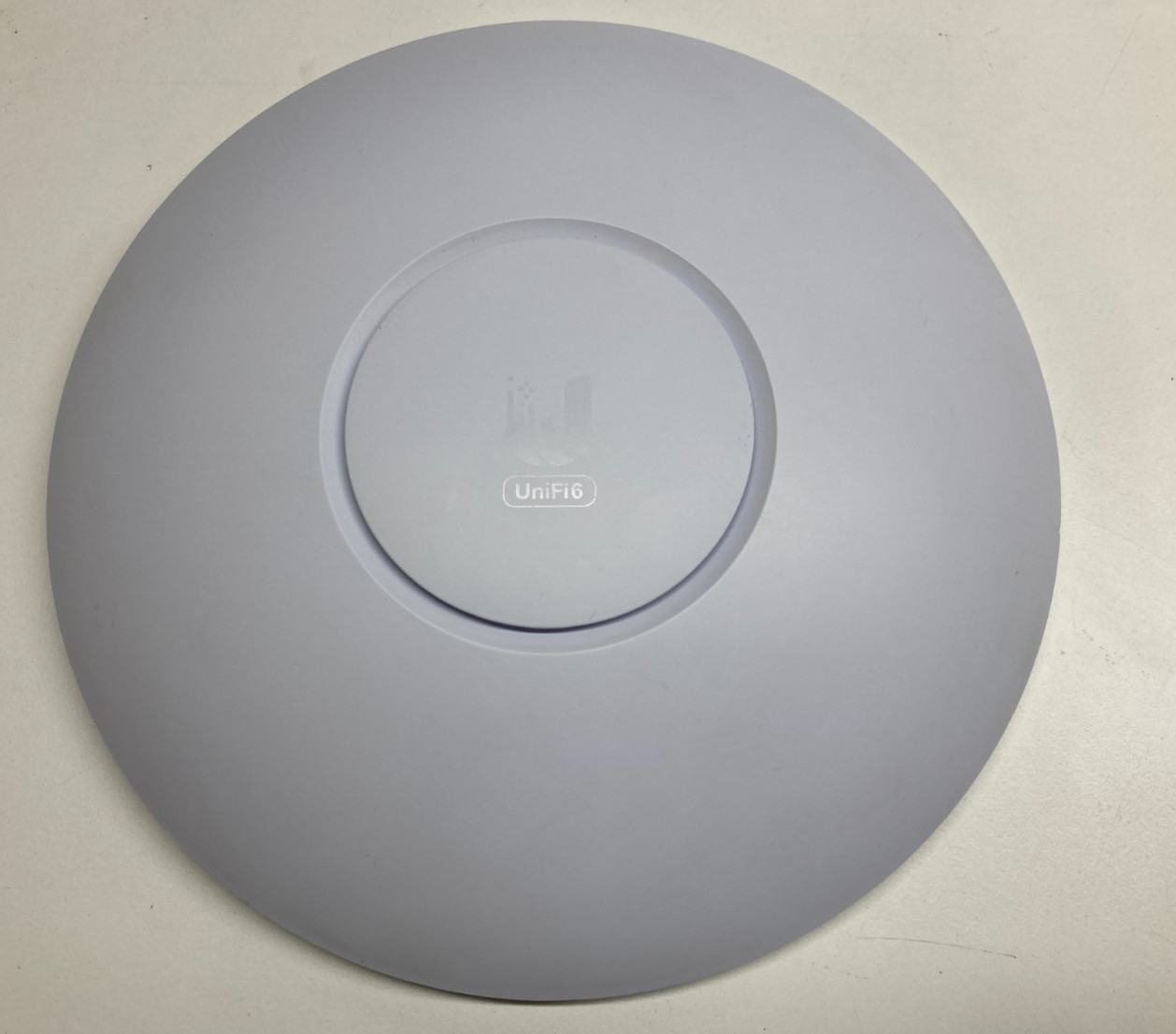

Condition Notes:These access points are in slightly used condition and show minimal signs of indoor use. They have been engineer tested and reset to factory default settings to ensure easy adoption into existing deployments. These units only come with the upgraded metal mounting bracket and nothing else. No POE injector or power supply is incudled in this sale, only what you see pictured!
Dimensions⌀197 x 35 mm(⌀7.8 x 1.4")WiFi StandardWiFi 6Spatial Streams6Coverage Area140 m² (1,500 ft²)Max. Client Count250+UplinkGbEMountingCeiling, Wall(Pro Mount Included)WeatherproofingIP54Power MethodPoEMIMO5 GHz4 x 4 (DL/UL MU-MIMO)2.4 GHz2 x 2 (UL MU-MIMO)Max. Data Rate5 GHz4.8 Gbps (BW160)2.4 GHz573.5 Mbps (BW40)Antenna Gain5 GHz6 dBi2.4 GHz4 dBiMax. TX Power5 GHz26 dBm2.4 GHz22 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)Wireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓Max. Power Consumption13WSupported Voltage Range44–57V DCNetworking Interface(1) GbE RJ45 portWeightDevice: 580 g (1.3 lb)With mount: 720 g (1.6 lb)ManagementEthernetBluetoothEnclosure MaterialPolycarbonateMount MaterialStainless steel (SUS304)LEDsSystemWhite/BlueChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzWorldwide:2400 - 2483.5 MHz5150 - 5850 MHzAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsCE, FCC, IC, SRRC, Anatel: 00910-22-08356Application RequirementsUniFi NetworkVersion 6.0.45 and later
