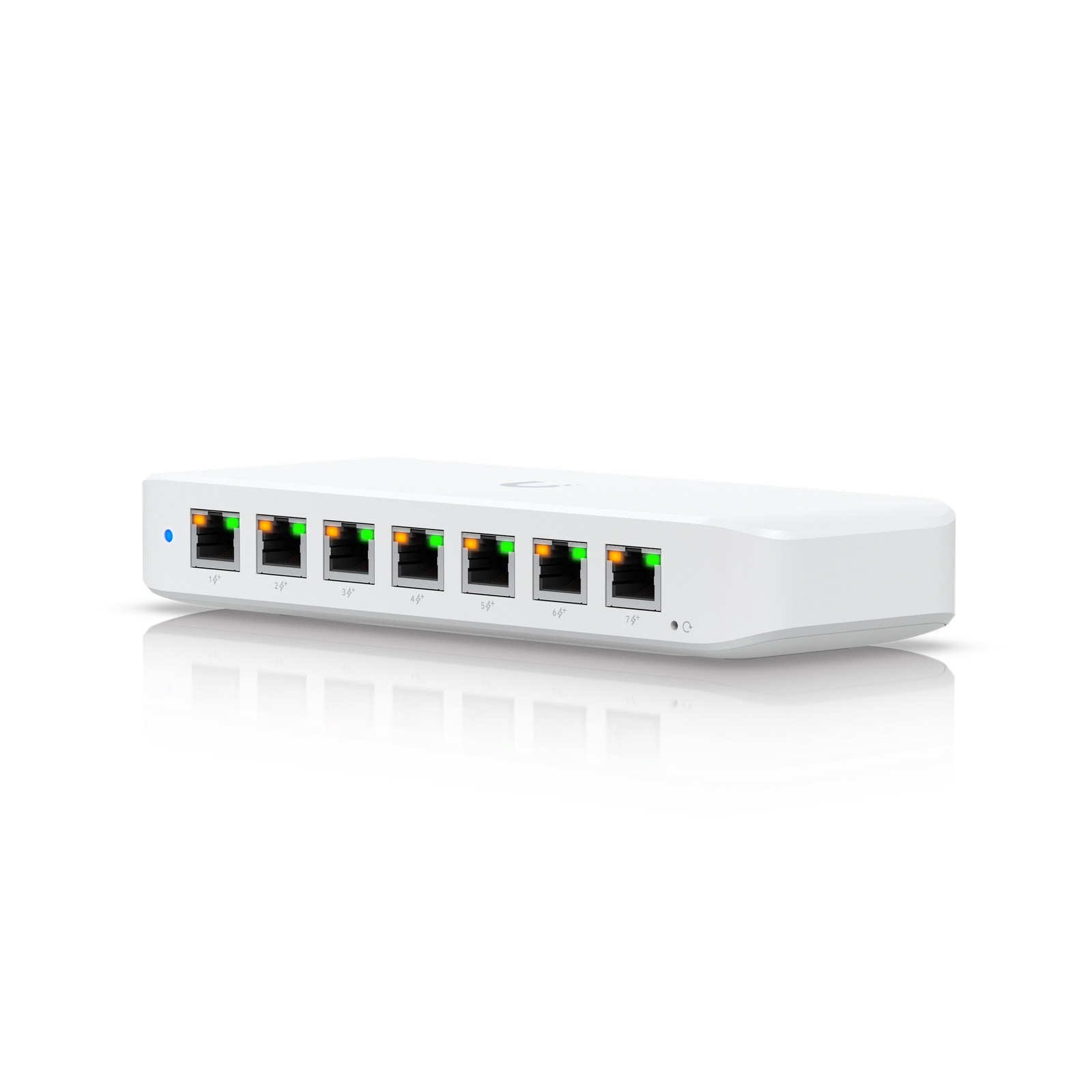

Ubiquiti UniFi Switch Ultra USW-Ultra 8-Port Gigabit PoE+ Layer 2 Managed
UPC: 810084693698
MPN: USW-Ultra
Brand: Ubiquiti
Type: Ethernet Switch
Model: UniFi Switch Ultra
Number of LAN Ports: 8
Ethernet Technology: Gigabit Ethernet (1000-Base-T)
Network Management Type: Fully Managed
Form Factor: Desktop
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Product Line: Enterprise
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- UniFi Switch Ultra
- USW-Ultra
- 810084693698
- UniFi Switch Ultra 60W
- USW-Ultra-60W
- USW-Ultra-60W-US
- USW-Ultra-60W-EU
- USW-Ultra-60W-UK
- USW-Ultra-60W-AU
- 810084693704
- 810084693728
- UniFi Switch Ultra 210W
- USW-Ultra-210W
- USW-Ultra-210W-US
- USW-Ultra-210W-EU
- USW-Ultra-210W-UK
- USW-Ultra-210W-AU
- 810084693735
- USW-Lite-8-PoE
- USW-Flex
- USW-Flex-Mini
- US-8-60W
- US-8-150W
Port Configuration & PoE Capabilities
The Ubiquiti UniFi Switch Ultra (USW-Ultra) features 8x 10/100/1000 Mbps RJ45 Gigabit Ethernet ports. It is designed for maximum power flexibility, offering 1x PoE++ (802.3bt) input port and 7x PoE+ (802.3af/at) output ports capable of delivering up to 30W per port. The total PoE power budget scales dynamically based on the power source: up to 42W via PoE++ input, 16W via PoE+ input, or up to 202W when paired with an optional high-capacity AC/DC adapter.
Management, OS & Layer Features
This is a fully managed Layer 2 switch configured and monitored seamlessly through the UniFi Network Application (v8.0.28 or later). It supports advanced Layer 2 switching protocols including STP/RSTP, port isolation, storm control, port mirroring, and multicast/broadcast rate limiting. The switch delivers a 16 Gbps switching capacity and 8 Gbps non-blocking throughput, ensuring robust performance for enterprise and smart home networks without requiring additional licensing fees.
Hardware Configuration & Included Accessories
Housed in a compact, durable white polycarbonate enclosure, the USW-Ultra is engineered for versatile deployment with support for desktop, wall, or magnetic mounting. The base model is powered directly via the PoE++ input port (44-57V DC) and does not include an AC power adapter. It operates silently without fans and is built to withstand extreme operating temperatures from -30 degrees Celsius to 60 degrees Celsius when powered via PoE++.
