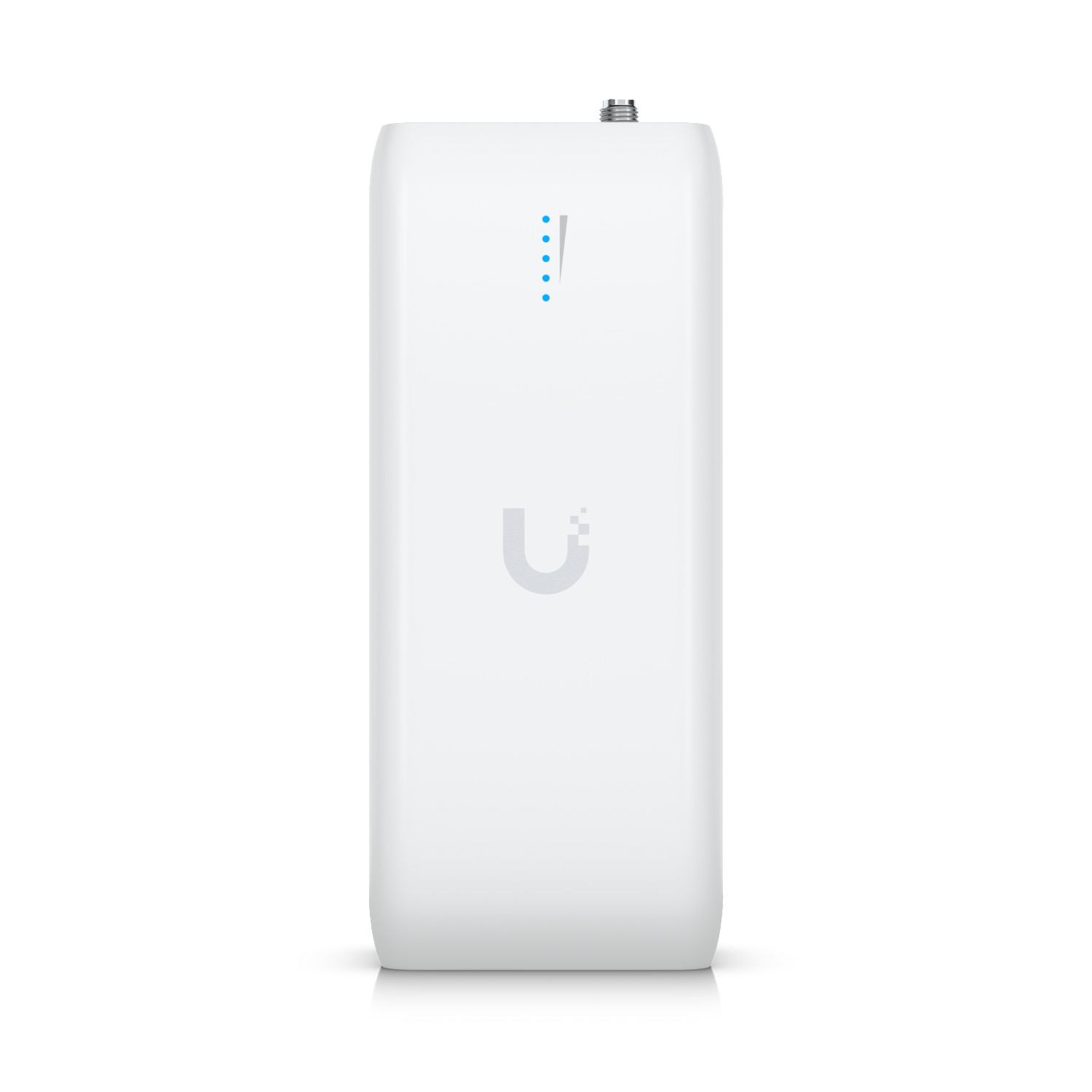

UniFi Device Bridge Model: UDB Product Description
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Key Features
- (1) GbE LAN port that provides up to 15W of PoE
- 5 GHz band with up to 867 Mbps throughput rate
- Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Technical Specifications Networking Interface(1) GbE RJ45 portPower Method100—240V AC, 0.45A Max., 50/60 HzMax. Power Consumption25W (AC input)10W (Excluding PoE output)Dimensions130 x 55 x 34 mm(5.1 x 2.2 x 1.3")Weight200 g (7.1 oz)CertificationsCE, FCC, IC, Anatel: 03885-25-083565 GHz21 dBm802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Ambient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-10 to 40° C (14 to 104° F)Antennas(1) Internal antenna(1) RP-SMA connector for external omni-antennaButton(1) Factory-resetChannel Bandwidth20/40/80 (MHz)Enclosure MaterialPolycarbonateMountingWall (Included)Mounting LocationsWall, tableOperating FrequencyUS/CA:U-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHzWorldwide:5150 - 5875 MHzSpatial Streams2Supported Voltage Range100—240V ACSystem(4) Blue: signal(1) White/blue: indicatorWiFi StandardWiFi 5Wireless SecurityWPA2 AES 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
