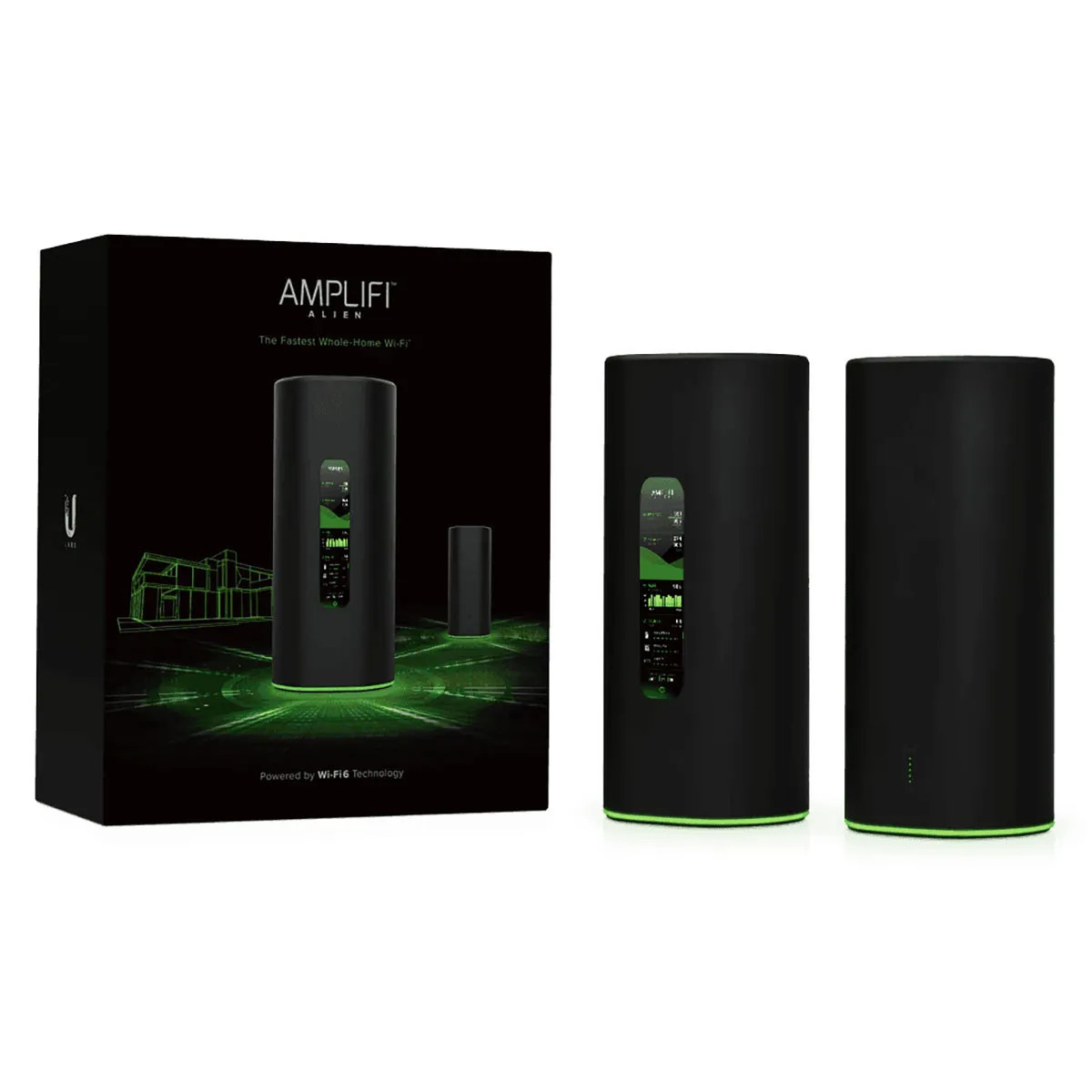

DimensionsRouter: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
MeshPoint: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")WeightRouter: 1.2 kg (2.7 lb)
MeshPoint: 1.1 kg (2.4 lb)Enclosure ARM® Cortex® A53s at 2.2 GHzMemoryRouter/MeshPoint: 1GB DDR3LManagement interfaceWiFi
EthernetNetworking interfaceRouter:
(1) GbE RJ45 WAN
(4) GbE RJ45 LAN
MeshPoint:
(1) GbE RJ45 LANPower methodRouter/MeshPoint: Universal AC input, 100–240V AC, 1A Max., 50/60 HzMax. power consumptionRouter: 35W
MeshPoint: 34WESD/EMP protectionAir/contact: ± 24kVMax. TX power
US:
2.4 GHz
5 GHz
International:
2.4 GHz
5 GHz
23 dBm
19 dBm (low band)/ 20 dBm (high band)
23 dBm*
20 dBm**
*Depends from the country selected, up to 30 dBm per chain.
**Depends from the country selected, up to 24 dBm per chain.MIMO
US:
2.4 GHz
5 GHz
International:
2.4 GHz
5 GHz
4 x 4
4 x 4 (low band) / 8 x 8 (high band)
4 x 4
8 x 8Speeds
US:
2.4 GHz
5 GHz
International:
2.4 GHz
5 GHz
1150 Mbps
1700 Mbps(low band) / 4800 Mbps (high band)
1148 Mbps
4800 MbpsAntenna gain
2.4 GHz
5 GHz
3 dBi
6 dBiAntennaRouter/MeshPoint: Internal dual-band metal stamp with 12 polarityDisplayRouter: 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color
MeshPoint: No displayLEDsRouter/MeshPoint: Green ring
MeshPoint: Green status indicator
Flashing: initial conguration
Lights up in sequence bottom to top: Bootup in progress
Lights up in sequence from the middle outwards: WiFi not ready or connected
Steady: Device is adopted (lit based on the signal strength receiving from the router)
Flash quickly: Locate
Lights up one by one: Firmware upgradingButtonRouter/MeshPoint: Factory resetAmbient operating temperature-10 to 45° C (14 to 113° F)Ambient operating humidity5 to 95% honcondensingCertificationsCE, FCC, ICNDAA CompliantYesSoftwareWiFi standardsUp to WiFi 6WiFi functionsMU-MIMO, OFDMA, TX-beamformingWireless securityWPA2VLANYesAdvanced QoSYesGuest traffic isolationYesPower saveYesSupported data rates802.11a: 54 Mbps
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 600 Mbps + 600 Mbps
802.11ac: 1733 Mbps + 800 Mbps
802.11ax: 4800 Mpbs Router-Mesh connection (Backbone)
802.11ax: 4800 Mbps + 1148 Mbps (Available to clients)Operating frequency*
2.4 GHz
5 GHz
2412 - 2472 MHz
5150 - 5875 MHz
