Technical Specifications:
Waterproof rating: IP65（with Waterproof/Dust Cap）
Connection type: USB3.0, TYPE-C
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Mounting Hole Size: 24mm
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10MΩ
Material:
Shell: Zinc die casting, nickel plated
Socket pin: phosphor copper
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the TYPE C data cable in reverse, and the transmission speed will reach the expected 5Gbps. Package Included:

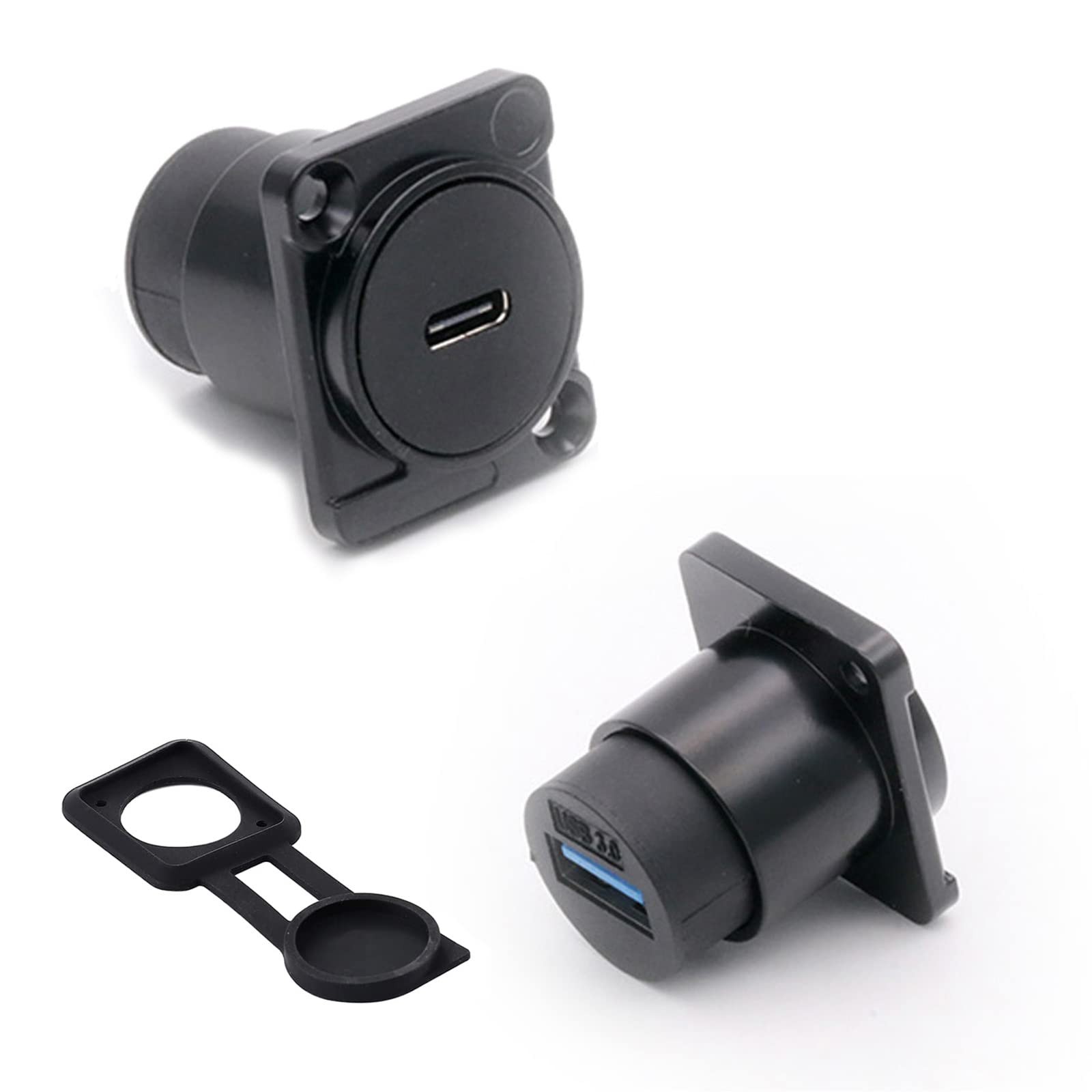

2x TYPE C to USB3.0 Connector
2x Waterproof/Dust Cap
HIGH-SPEED TRANSFER: This usb c to usb3.0 adapter is made of zinc alloy shell, which is scratch resistant. The inner contacts are made of solid brass terminals with gold plating. To ensure the stability of the current. Transfer speeds up to 5Gbps and support charging your device with Type C input.
Plug & Play:Standard D-Series Type C to USB 3.0 Connector for Panel Mount Installations, No soldering, no installation tools, no driver required.
Widely application：it widely compatible with Laptop, PC, Charger, Power Bank, Quest Link. Work perfectly for devices with USB A or USB C ports, support all your series.
Universal Compatibility: The USB-C to USB 3.0 Adapter compatible with all USB Type-C port devices including Macbook Pro 2020/2019/2018/2017/2016,Macbook Air /iPad Pro 2020/2018,Samsung Galaxy S20 S20+ S20 Ultra Note 10/Note 10Plus/Note8 S9/S9 Plus S8/S8 Plus,LG G6 G5 V20 and More.
Usage: USB TYPE C 3.1 to Type A Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments.
