ST341UUSB 3.0 to SATA External Hard drive Docking Station, Dual Bay &2.5" 3.5"HDD/SDD Support USB 3.0 external, SATA-I/II/III internal; Works great with 2.5 inch and 3.5 inch SATA HDD/SSD.Support transfer speeds up to 6Gbps by UASP transfer protocol, which is up to 20% faster than USB 3.0.
Speeds up to 5Gbps (USB 3.0),480Mbps (USB 2.0), 12Mbps (USB 1.1).Support Offline Cloning up to 60Mbps. No drivers needed, easy installation; Offline clone is from source disk to target disk,
make sure the capacity of target disk is larger or equivalent to that of source disk; not support online Clone.Built-in Power Control Switch; Highly efficient (12V, 3A), stable and reliable DC power source a steady supply of energy;
Automatic sleep mode after 30 minutes of inactivity saves energy.Tool-free installationon Windows 10 through XP, Mac OS X, and Linux / Unix, Support hot-swapping and easy set up.
(No drivers are required for the disk dock itself as it uses the standard USB Mass Storage class).Specification:
1. Voltage: 100~240V
2. Operating Temperature: 0°C~40°C
3. Storage Temperature: -10~70°C
4. Power Plug: US
5. Power Supply: 12V/3A
6. Port: USB 3.0 SATA DC
7. Processor: 2.0Ghz core2
(HDD/SSD in the decription is only to present the enclosure and will not attached in the package)Package Included
1 x Dual Bay SATA HDD Docking Station
1 x 12V 3A Power Adapter
1 x USB3.0 Cable
1 x User's ManualInstructions on How to Connect the Dock to the Computer:
1). Please unplug the DC power adapter to make sure that the power is off before starting.
2). Insert HDDs/SSDs into the slots vertically and slowly until them stick.(One HDD/SSD is also supported)
3). Connect the power adapter and turn the "ON-OFF" switch on.
4). Connect the USB cable to the computer then you can use it as your computer's external hard drive.How to Operate Offline Clone Function:
ѧ Please unplug the DC power adapter to make sure that the power is off before starting.
ѧ Insert Source Disk into hard drive bay A, then insert Target Disk into hard drive bay B.
ѧ Make sure the USB cable is disconnected from computer.
ѧ Connect the power adapter and turn the"ON-OFF" switch on.
ѧ Hold the CLONE button for about 3 seconds, when all leds turn on, the clone progress will start.
ѧ Four lights (25%, 50%, 75%, 100% ) will turn solid blue when the cloning process is completed.
ѧ Finally turn the "ON-OFF" switch off, disconnect the power adapter and eject your drives.
Tips for Offline Clone:
- The capacity of target disk must be larger than the source disk.
- Please confirm that your source drive and target drive can both work properly.
- Please connect the 12V power adapter to ensure a stable power supply for transmission.
- To avoid data transfer errors, overheating and damage to the device, please make sure that there are no faulty driver cells.
- To avoid data loss, do not remove or insert drives when one drive is working in the docking station.
Please power off the dock before removing.
- Please confirm the target drive have no data. If you have existing data on the target drive, the cloning process will eliminate
your target drive's data. Because the target drive will be cloned to be the same as the source drive, partition, format
and data are the same too.
Q1: Can i access two hard drives at once with this device or does it switch from one to the other?
A1: Yes, you'll be able to access both drives at the same time.
Q1:Is the power suply ready for 230 vac?
A1: Yes, 100-240 V AC
Q1: Does this include a Usb-c adapter?
A1: Yes, included a usb A to C adapter

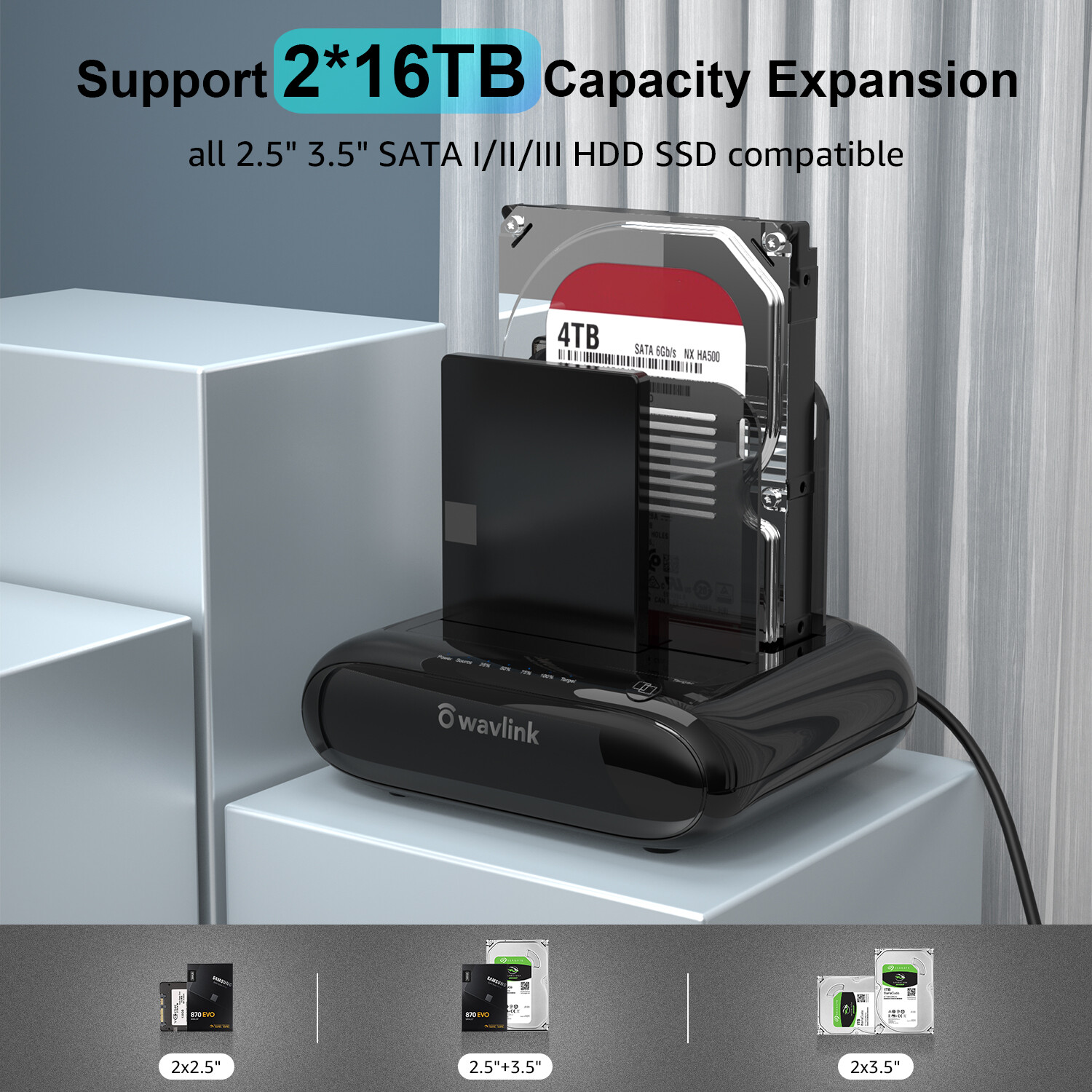

ST334UAWAVLINK USB 3.0 SATA HDD SSD Docking Station Offline Clone 2.5"/3.5" Hard DriveFeatures:Dual-bay Docking Station: The Wavlink two-slot hard drive docking station supports all 2.5''/ 3.5''
SATA I/ II/ III HDD SSD (up to 2x 16TB), a perfect solution for data backup and transferring files.
The unique bezel design offers stable performance and better protection for your hard drives.
Offline Clone Function: Offline data copy between two hard drives with no computer involved,
totally a competent assistant for data backup. Press the OTB button for about 3 seconds and
short-click it once again to start the process.Tips: please make sure the capacity of target
disk' s is larger/equal than source disk's.
USB 3.0 Superspeed with UASP: With standard USB 3.0 and SATA III connectors' ready,
the data transfer rates up to 5 Gbps, 10x faster than USB 2.0. UASP supported allows a 20% faster
transfer speed over conventional USB 3.0, transferring 1GB files only takes 3 seconds,
backward compatible with USB 2.0/1.1.
Easy to Use: Back-up files and expand storage with convenient access. Tool-free, no driver is
needed. Hot-swappable, plug and play! Compatible with Windows 7/8/10/11, Mac 10.2 or latest
(Do not support M1-based Mac), Chrome OS, Linux, Android. {Note: Your phone should support
the OTG function.}
Package Includes: 1x usb 3.0 dual bay hard drive docking station, 1x usb 3.0 type-b to a cable,
1x usb 3.0 type-a to c adapter, 1x 12v/3a power adapter, 1x user manual, 2x bezels, several screws.
1 Year worry-free warranty( extra 6 months for registered members) and life-long technical support.
Please feel free to contact us if you have any HDD: 2.5/3.5 inch
Max HDD Capacity: 2x16TB
Maximum data transfer rates: 5Gbps
Material: Plastic ABS and PC
Weight (with 2 bezels): 366g/12.9oz/0.8lbs
Item Dimensions: 14.2 x 12 x 4.5cm/ 5.6 x 4.7 x 1.8 in
USB-B to USB-A Cable Length: 2.3ft /27.56inch /70cm
Power Cable: 120cm/47.2in/3.93ft
Tips:
●Do not support M1 based Mac.
●One-Touch Backup function for Windows PC ONLY.
●One button to offline clone, does not need to connect to the computer.
●Please make sure the actual capacity of the Target disk is higher than Source disk (Target≥Source).
●Making sure your smartphone supports OTG function or data will not be transmitted.
●A brand-new hard drive should be formatted and partitioned in Disk Management/Disk Utility before use.
●To avoid data loss, please do not try to insert or withdraw HDD or SSD when another hard drive running.
●Please backup files in the target hard drive before cloning. Any files in the target hard drive will be
overwritten when offline cloning occurs.
●Some disks might need more wattage than normal disk to start up, please connect the 12V power
adapter to ensure a stable power supply for transmission.
Before you clone, please noted:
①.The target drive has to be at least equal or larger in capacity than the source drive.
②. Please confirm your source drive and target drive both can work properly, and target drive
have no data. If you have existing data on the target drive, the cloning process will eliminate your
target drive's data. Because the target drive will be cloned to be the same as the source drive,
partition, format and data are the same too.
③.To avoid data loss, do not unplug drives when one drive is working in the docking station.
Please power off the dock before removing.
④. Make sure there is no connection to the USB port.
After transferring data on computer, please noted:
1). Before the removal, please stop all data access and transfer to the device.
2). Never remove your hard drive(s) or insert a new one while the hard drive is in use.
Otherwise, you may corrupt the data on the hard drive(s) or damage the hard drive(s),
docking station, or computer.
