UHF RFID Reader 8M Long Range EPC Gen2 Integrative UHF RFID Reader With Free SDK
UHF RFID Card reader 8m long range, 8dbi Antenna RS232/RS485/Wiegand Read 8M Integrative UHF RFID Reader
The UHF RFID Middle Range Reader is a high performance UHF integrated reader .
Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
ITEM
SYMBOL
VALUE
UNIT
Power Supply
VCC
16
V
Operating Temp.
TOPR
-10~+65
°C
Storage Temp.
TSTR
-25~+75
°C
Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM
SYMBOL
MIN
TYP
MAX
UNIT
Power Supply
VCC
8
9
12
V
Current Dissipation
IC
350
650
mA
Frequency
FREQ
860
865~868
902~928
960
MHz
Effective Distance*
DIS
300
500
600
cm
INTERFACE
ITEM
COMMENT
Red
+9V
Black
GND
Yellow
Wiegand DATA0
Blue
Wiegand DATA1
Purple
RS485 R+
Orange
RS485 R-
Brown
GND
White
RS232 TXD
Green
RS232 RXD
Grey
Trigger input(TTL level)
* Effective distance depends on antenna, tag and environment.

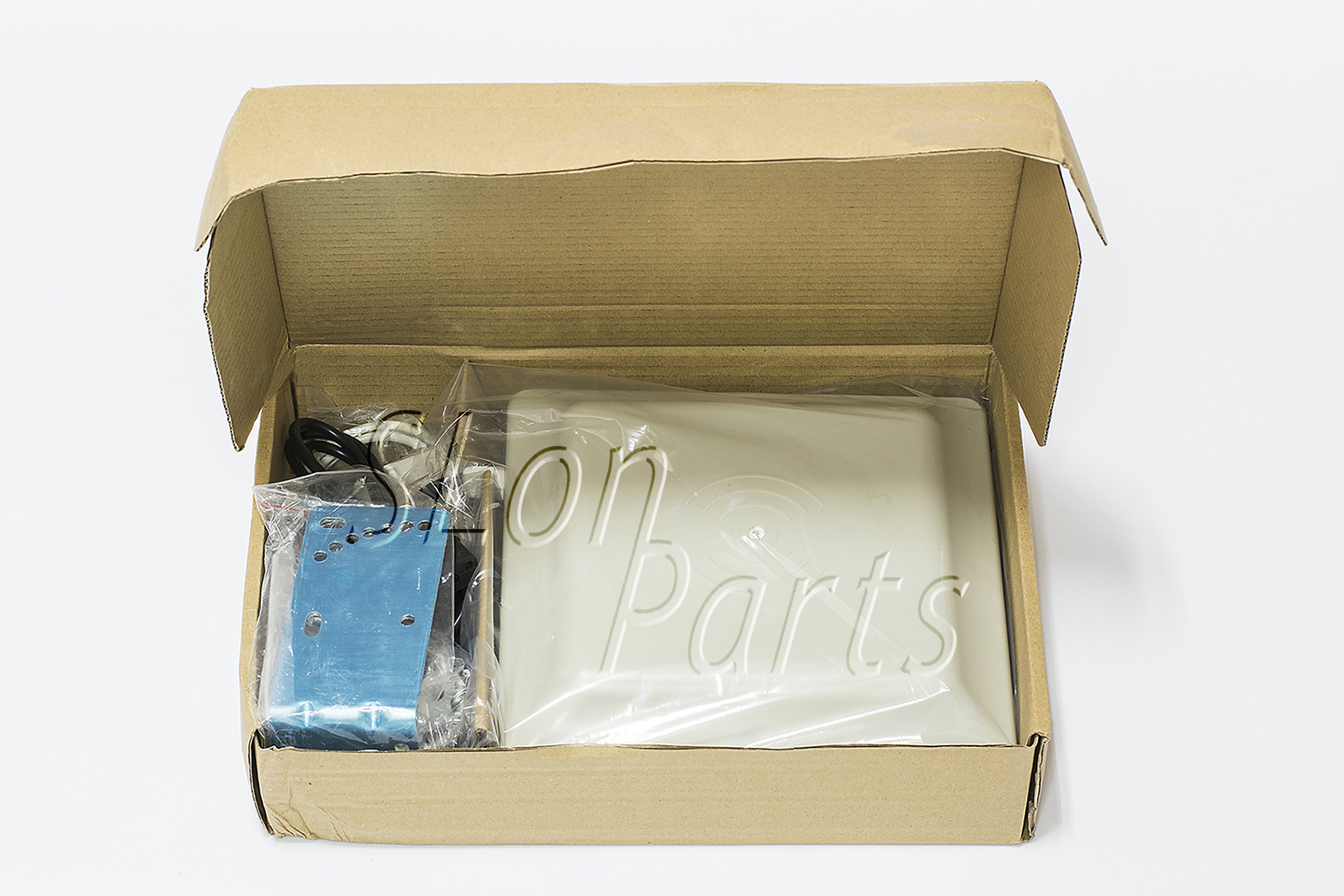

Pictures
9662 read labels, we tested the longest distance is 8 meters, label size and dimensions of the different antennas will affect the reading distance. Welcome more experienced counterparts to exchange UHFRFID!
If you need a control software and any questions, please contact us! Thanks
Need more please kindly contact us. Thank you!
