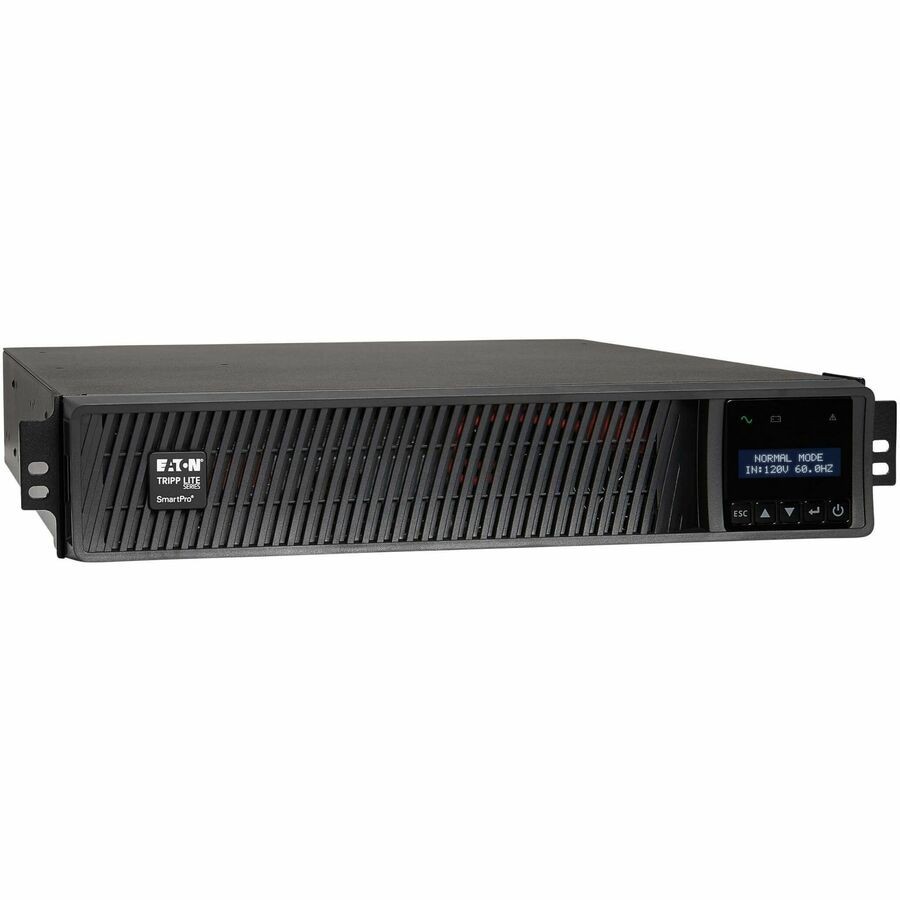

Tripp Lite UPS Smart 1950W 120V Avr LCD USB 2U TAA Brand: Tripp Lite UPC: 0786689816056 Mfr Part #: SMART2200RXLTAA

General Information

Features | 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. The SMART2200RXLTAA is ideal for large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRXLTAA, sold separately). The SMART2200RXLTAA restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

Built-in AVR corrects abnormal voltage conditions without using the battery. The SMART2200RXLTAA maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

Pure Sine Wave Output and Unity Power Factor

Pure sine wave output power ensures maximum stability while unity power factor ensures the most watts possible at each power rating, providing maximum compatibility with sensitive equipment.

Optional LXE Network Management Card Allows Remote Control and Access 24/7

The WEBCARDLXE (sold separately) enables access to advanced features like switchable load banks, automatic email messaging on power events, and full remote control of the UPS. The IP-based Auto Probe feature ensures network uptime by communicating with other network devices and automatically rebooting IT equipment when a loss of connectivity is detected. Note : The SMART2200RXLTAA is not compatible with WEBCARDLX.

Managed NEMA Outlets Protect Your Connected Components

One L5-20R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RXLTAA maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-20PReceptacle Type:NEMA 5-20RReceptacle Type:NEMA L5-20RReceptacle Detail:6 x NEMA 5-20RReceptacle Detail:1 x NEMA L5-20RNumber of Load Management Outlets:2Cord Length:10 ftTransfer Time:4 msEMI/RFI Noise Filter:YesPhase:Single PhaseEfficiency Detail:96% (AC EquipmentApplication/Usage:Server RoomApplication/Usage:Data Suppression:YesFeatures:Cold Start Function

Power DescriptionLoad Capacity (VA):1950 VALoad Capacity (Watt):1950 WInput Voltage:120 V ACInput Voltage Range:70 V AC - 153 V ACInput Current:16 AOutput Voltage:120 V ACOutput Voltage:100 V ACOutput Voltage:110 V ACUSB:YesOutput Voltage:125 V ACOutput Frequency:50 HzOutput Frequency:60 HzWaveform Type:Pure Sine WaveSurge Energy Rating:380 JCircuit Breaker:YesOutput Power Factor:1

Display & GraphicsDisplay:LCD

LED Indicators:

• Battery Mode
• Battery Low Warning
• Fault/Alarm

Battery InformationDC System Voltage:72 V DCBattery Characteristics:Valve-regulatedBattery Chemistry:Lead AcidBackup/Run Time (Full Load):4 MinuteBackup/Run Time (Half Load):12 MinuteTypical Battery Recharge Time:4.50 HourHot Swappable:YesReplaceable Battery:Yes

Physical Height:2UForm Factor:Rack/TowerWeight (Approximate):65.30 lb

SmartPro SMART2200RXLTAA 1950VA Rack/Tower UPS

USB Cable

DB9 Cable

Rack-mounting Hardware

Tower Support Stands

Safety Instructions

Quick Start Guide

Certifications & Standards:

• CSA (Canada)
• ICES (Canada)
• NOM (Mexico)
• UL 1778
• CE (Europe)
• FCC Part 15 Class A (USA)

Energy Star:YesCountry of Origin:TaiwanTAA Compliant:YesEnergy Efficiency Certification:ENERGY STAR 2.0Environmental Compliance:Restriction of Hazardous Substances (RoHS)

2-year warranty, 3 year with registration.

Directly Connected Equipment Guarantee:$250000 Lifetime
