Manufacturer: Tripp Lite

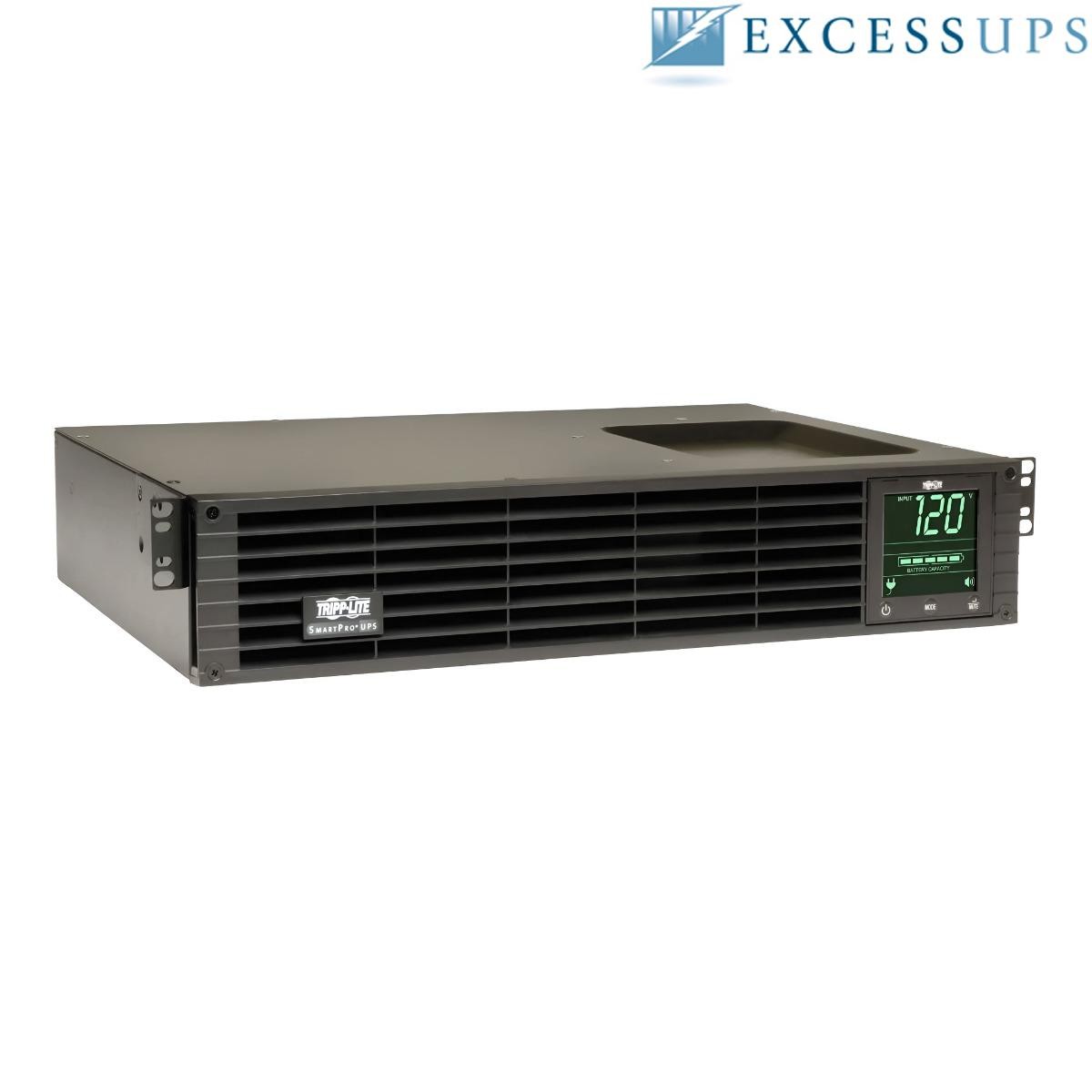

Model: Tripp Lite SmartPro UPS 3000VA 2250W, RM, 2U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART3000RM2U
Maximum Output: 2250W / 3000VA
Typical Backup Time at Half Load: 10 Minutes (1125 Watts)
Typical Backup Time at Full Load: 3 Minutes (2250 Watts)
Input: NEMA L5-30P, 120V / 30A
Output: (8) NEMA 5-15/20R, (1) NEMA L5-30R
Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Form Factor: Rackmount 2U
Extended Runtime: Supports Optional External Battery Packs
Network Management: Expansion Slot Available for Optional Network Management Card
Communications: USB, DB9 Serial, EPO & Network Management Accessory Slot
Display: Front Panel LCD Status & Configuration Display
Warranty: 1 Year Full Replacement Warranty
Description: The Tripp Lite SmartPro SMART3000RM2U is a 3000VA / 2250W line-interactive rackmount 2U UPS designed for servers, networking equipment, telecom systems, and other critical electronics. It provides pure sine wave output, Automatic Voltage Regulation (AVR), (8) NEMA 5-15/20R outlets plus (1) NEMA L5-30R outlet, switchable load banks, LCD monitoring, USB and DB9 serial communications, EPO support, and an expansion slot for optional network management. Extended runtime is supported with compatible Tripp Lite external battery packs. The owner's manual confirms SMART3000RM2U as part of the 120V SmartPro 2U line-interactive sine-wave family. Tripp-Lite-Owners-Manual-805164 The manual also confirms USB/RS-232 communications and EPO connectivity. Tripp-Lite-Owners-Manual-805164 Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Tripp Lite SmartPro 3000VA 2250W RM 120V SMART3000RM2U - User Manual
SMART3000RM2U - Tripp Lite SmartPro LiteProduct SeriesSmartProModelSMART3000RM2UProduct TypeUninterruptible Power Supply (UPS)Power Capacity3000VA / 2250WOutput Capacity3.0kVA / 2.25kWPower WaveformPure Sine WaveNominal Voltage120VForm FactorRackmountRack Height2UCooling MethodFanHousing MaterialSteel Input Nominal Input Voltage120V AC
UPS Input Connection Type
NEMA L5-30P
Rated Input Current at Maximum Load24ARecommended Electrical Service30A / 120VInput PhaseSingle-PhaseInput Cord Length10 ft (3.1 m)AVR Input Operating Range83–145V Output Output Volt-Amp Capacity3000VAOutput Capacity3.0kVAOutput Watt Capacity2250WOutput kW Capacity2.25kWOutput Capacity with External Battery PacksReduced to 1600W MaximumPower Factor0.75Nominal Output Voltage120VSupported Output Voltages110V / 115V / 120VFrequency Compatibility60 HzOutput Voltage Regulation - Line Mode-14% / +6%Output Voltage Regulation - Battery Mode±5%AC Mode WaveformPure Sine WaveBattery Mode WaveformPure Sine Wave
Output Receptacles
(8) NEMA 5-15/20R
(1) NEMA L5-30R
Total Output Receptacles9Load Management ReceptaclesTwo Switchable Single-Outlet Load BanksIndividually Controllable Load BanksYesOutput Circuit Breakers(2) 20ACircuit Breaker ProtectionEach 20A Breaker Protects (4) NEMA 5-15/20R OutletsRemote Outlet / Load Bank ControlSupported through UPS Communications / Compatible Management Interface Voltage Regulation Automatic Voltage Regulation (AVR)YesAVR Operating Range83–145VOvervoltage Correction127–145V Input Reduced by 12%Undervoltage Correction96–108V Input Boosted by 12%Severe Undervoltage Correction83–95V Input Boosted by 24%Battery Conservation During AVRVoltage Correction Without Battery Operation Batteries & Runtime Battery TypeValve-Regulated Lead-Acid (VRLA)DC System Voltage48VDCTypical Backup Time at Half Load10 Minutes (1125W)Typical Backup Time at Full Load3 Minutes (2250W)Manufacturer Full-Load Runtime Specification3.5 Minutes (2250W)Expandable RuntimeYesExternal Battery ConnectorYesExternal Battery Pack SupportYesExternal Battery Pack BP48V24-2U18Ah - Limit (1)External Battery Pack BP48V27-2US27Ah - Multiple Packs SupportedExternal Battery Pack BP48V60RT-3U42Ah - Multiple Packs SupportedOutput Derating with External Batteries1600W MaximumReplacement Battery CartridgeRBC94-2UBattery AccessFront Panel Battery Access DoorBattery ReplacementHot-Swappable / User-ReplaceableBattery Recharge TimeLess Than 4.5 Hours from 10% to 90%External Battery ConfigurationConfigurable through UPS External Battery Settings Communications & Management Network Management CardOptional - Not IncludedNetwork Management Accessory SlotYesAccessory Slot FunctionSupports Optional Remote Monitoring and Control AccessoriesNetwork Management Cards Listed for ModelSNMPWEBCARD, TLNETCARD, WEBCARDLXRelay Interface CardRELAYIOCARDUSB PortYesUSB InterfaceHID EnabledSerial PortDB9 RS-232Emergency Power Off (EPO)YesCommunication InterfacesUSB, DB9 Serial, EPO, Network Management Accessory SlotIncluded Communications CablesUSB and DB9Local UPS MonitoringSupportedPowerAlert SoftwareSupportedUPS Operating Condition MonitoringSupportedAC Line MonitoringSupportedInput Voltage MonitoringSupportedOutput Voltage MonitoringSupportedLoad MonitoringSupportedBattery Status MonitoringSupportedRuntime MonitoringSupportedEvent MonitoringSupportedNetwork MonitoringSupported with Compatible Optional Network Management CardRemote ManagementSupported with Compatible Optional Network Management CardRemote Load ControlSupportedRemote RebootSupportedPowerAlert Remote Outlet ControlLoad Banks Can Be Remotely Switched On / OffWatchDog CompatibilitySupportedWatchDog Application RestartSupportedWatchDog OS RestartSupportedWatchDog Hard-RebootSupportedNetwork UPS Tools (NUT)CompatibleAutomatic ShutdownSupported through Compatible UPS Management Software User Interface, Alerts & Controls Front Panel DisplayLCD Information and Configuration ScreenInput Voltage DisplayYesOutput Voltage DisplayYesEstimated Runtime DisplayYesLoad Percentage DisplayYesLoad Wattage DisplayYesEnergy Consumption DisplaykWh / DayBattery Capacity DisplayYesAVR Event CounterYesOn-Battery Event CounterYesExternal Battery StatusSupportedLCD Automatic ScrollConfigurableLCD BrightnessConfigurablePower Battery Self-TestFront Panel Controls(3) Pushbutton ControlsPower ControlOn / OffMode SelectionYesEnter / Mute ControlYesAlarm CancelYesSilent ModeConfigurableAudible AlarmYesPower Failure AlarmYesLow Battery AlarmYesOverload AlarmYesUPS Fault AlarmYesRemote Shutdown AlarmYesReplace Battery WarningYes Power Management Features Switchable Load BanksYesLoad Bank Quantity(2) Switchable Single-Outlet Load BanksRemote Load Bank SwitchingSupportedRemote Reboot CapabilitySupportedAutomatic Voltage RegulationYesCold StartSupportedBattery Self-TestSupportedPower Sensitivity AdjustmentSupportedExternal Battery Form FactorRackmountRack Height2UUPS Height3.43 in (8.71 cm)UPS Width17.32 in (43.99 cm)UPS Depth19.46 in (49.43 cm)UPS Weight62.8 lb (28.49 kg)Housing MaterialSteelCooling MethodFanIncluded Mounting Accessory4POSTRAILKITIncluded Installation Type4-Post 19-Inch RackmountIncluded Rail Adjustment Range20.5–36 in (521–914 mm)2-Post RackmountSupported with Optional 2POSTRMKITWMFront-Rail RackmountSupported with Optional UPSHDEARKITShort-Depth 4-Post RackmountSupported with Optional 4POSTRAILKITWMTower InstallationSupported with Optional 2-9USTANDWall MountingSupported with Optional 2POSTRMKITWMMinimum Rack Depth without External Battery Pack24.5 in (62 cm)Minimum Rack Depth with External Battery Pack26.5 in (67 cm) Environmental Operating Temperature32–104°F (0–40°C)Storage Temperature5–122°F (-15–50°C)Relative Humidity0–95%, Non-CondensingAC Mode Efficiency at 100% Load98%AC Mode Heat Output at Full Load189 BTU/hrBattery Mode Heat Output at Full Load1356 BTU/hrAudible Noise45 dBA Maximum at 1 m from Front Surge Protection & Filtering Surge ProtectionYesSurge Energy Rating570 JoulesAC Suppression Response TimeInstantaneousEMI / RFI AC Noise SuppressionYes General Rack / Tower CapabilityRackmount Standard; Tower Supported with Optional StandHot-Swappable BatteriesYesUser-Replaceable BatteriesYesExternal Battery CapabilityYesEPO SupportYesLCD ConfigurationYes Conformance FCC ComplianceFCC Part 15 Class AApplication EnvironmentCommercial / IT Equipment Condition & Warranty UPS ConditionRefurbishedBattery ConditionNew BatteriesNetwork Management CardOptional - Not IncludedWarranty1 Year Full Replacement Warranty
