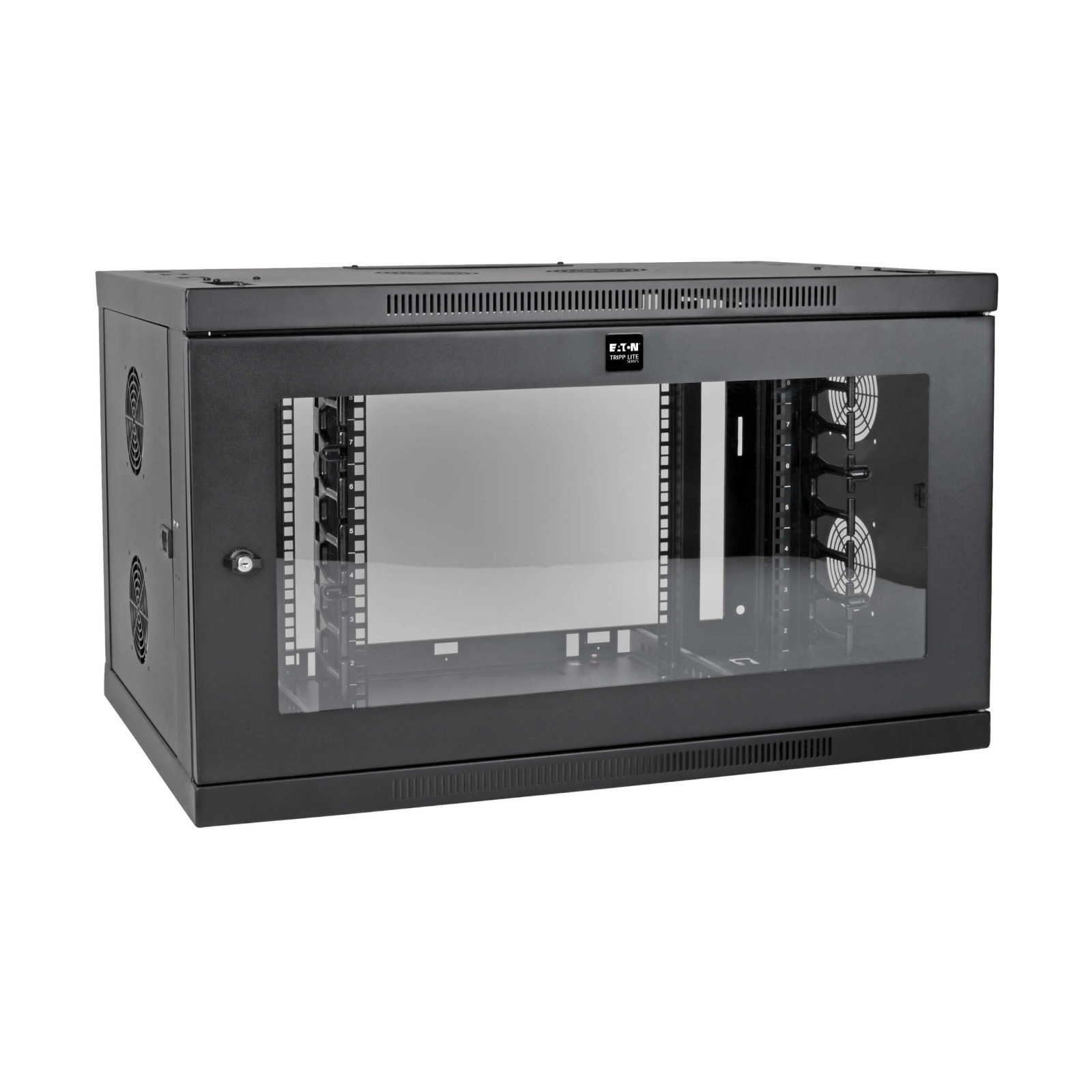

SmartRack9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide, AcrylicWindow
MODEL NUMBER: SRW9UDPGVRT (AC8A82)
9U rack cabinetwith extra widthfor convenient cablemanagement houses, organizes and secures standard19 in. rack equipment.
Space-Saving 9U Wall-Mount EnclosureHouses 19 in. Rack Equipment up to 20.5 in. DeepThisSmartRack® cabinet is designed to house 9U of equipment, such as networkswitches and patchpanels. It's recommended for network wiring closets, retail locations,classrooms, back offices and other areas with limited floor space where youneed equipment to be secure, organized and out of the way.
Constructed from heavy-duty steel with a durable blackpowder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7kg).
Lockable forSimple and Secure Equipment AccessThefront door and side panels lock securely to help prevent damage, tampering ortheft. The reversible front door can open left or right by rotating the cabinet 180 degrees beforemounting. Convenient top and bottomaccess ports alloweasy cable routing through the cabinet.
GenerousAirflow Keeps Equipment CoolRound portsbuilt into the top, bottom and both sides are designed for optional ventilation fans (such as SRFANWM, sold separately) that keep your equipmentcool and functioning at their peak.
Designed withExtra Width for Easier Cable Access and Better AirflowThe SRW9UDPGVRT is three inches wider than standard-widthwall-mount racks. Combined with two vertical cable managers with pre-installed fingerducts in frontand two cablepass-through ports on top, the extra widthprovides convenient cablemanagement along the front of the rack. This allows easier cable access fromthe front and increases airflow by minimizing rear cable clutter that canobstruct vents. Cutouts on top of the rack can be used to secure cable bundles.
Easy Enclosureand Equipment InstallationThis 9U serverrack comes fully assembled and ready to mount to the wall with user-suppliedhardware. The side panels can be removed for convenient installation,maintenance and replacement of equipment. Front and rear mounting rails adjustindependently to accommodate equipment up to 20.5 inchesdeep, including networkswitches and patch panels.
MeetsPayment Card IndustryStandardsThe SRW9UDPGVRT providesphysical equipment and mediasecurity required for PCI DSS (Payment Card Industry Data Security Standard)compliance.
OVERVIEW
UPC Code
037332214263
Device Compatibility
Patch Panel; Network Switch; UPS
Rack Type
Small Enclosure
PHYSICAL
Color
Black
Rack Height
9U
Rack Depth
Shallow
Maximum Device Depth (cm)
52.07
Maximum Device Depth (in.)
20.5
Maximum Device Depth (mm)
521
Minimum Device Depth (cm)
7.62
Minimum Device Depth (in.)
3
Minimum Device Depth (mm)
76
Cable Access Hole Measurement (inches)
9.812 x 2.35 (l x w)
Shipping Dimensions (hwd / in.)
23.03 x 24.40 x 32.28
Shipping Dimensions (hwd / cm)
58.50 x 61.98 x 81.99
Shipping Weight (lbs.)
58.86
Shipping Weight (kg)
26.70
Unit Dimensions (hwd / in.)
19.830 x 29.622 x 21.710
Unit Dimensions (hwd / cm)
50.37 x 75.24 x 55.14
Unit Weight (lbs.)
53.130
Unit Weight (kg)
24.10
Weight Capacity - Stationary (kg)
91
Weight Capacity - Stationary (lbs.)
200
Number of Vertical Mounting Rails
4
FEATURES & SPECIFICATIONS
Grounding Details
Front and Back door frames
Built-in Cable Management
Yes
Extra Wide
No
Pre-Installed Casters
No
