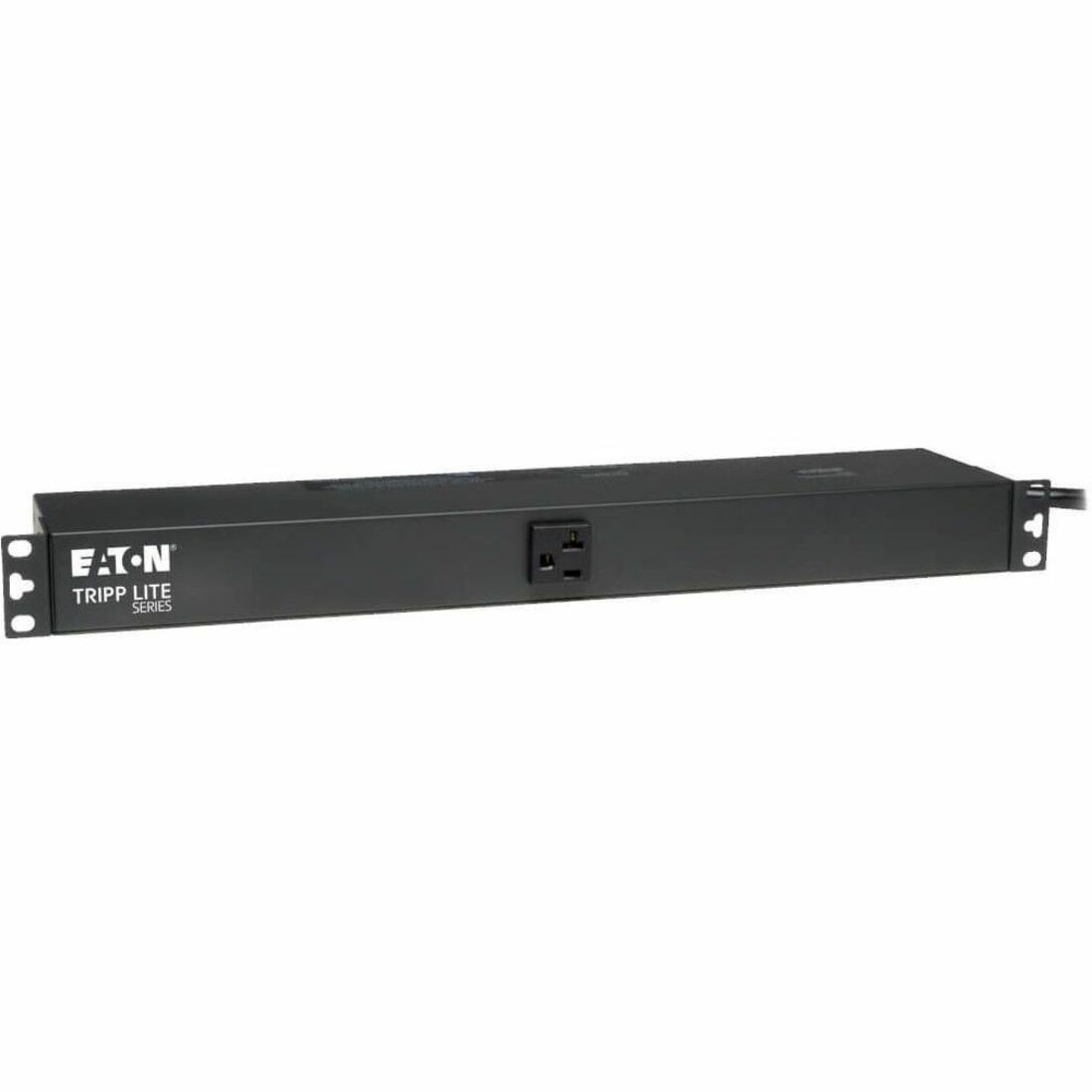

Tripp Lite PDU Basic 120V 20A L5-20P 13 Outlet 15 ft Cord (PDU1220T) Tripp Lite PDU Basic 120V 20A L5-20P 13 Outlet 15 ft Cord (PDU1220T)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet PDU1220T Rackmount Power Strip Instruction manual and warranty information
Certifications & Standards: UL, cUL
Additional Information: Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - When placed in traditional 1U rackmount installation, attractive all-metal housing offers the appearance of a 1U blanking panel to the front, protecting the 12 rear-facing output receptacles - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMAL5-20P twist-lock plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC, 50/60Hz electrical compatibility
Compatibility: TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more
Package Contents:
- PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet
- PDU1220T Rackmount Power Strip
- Instruction manual and warranty information
SpecificationPower DescriptionInput Voltage120 V ACOutput Voltage120 V ACPhysical CharacteristicsMount TypeRack-mountableNumber of Cord/Cable1Rack Height1UWarrantyLimited Warranty5 YearGeneral InformationBrand NameTripp Lite seriesMarketing Information Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more More from the Manufacturer Product TypePDUProduct NamePDU1220T PDU Basic 120V 20A L5-20P 13 OutletManufacturerEaton CorporationManufacturer Part NumberPDU1220TProduct ModelPDU1220TTitleProduct TitleTripp Lite by Eaton PDU 2.4kW Single-Phase 120V Basic PDU 13 NEMA 5-15/20R Outlets NEMA L5-20P Input 15 ft. [4.57 m] Cord 1U Rack-Mount (PDU1220T)Technical InformationPlug/Connector Detail1 x NEMA L5-20PReceptacle TypeNEMA 5-20RReceptacle Detail13 x NEMA 5-20RPlug/Connector TypeNEMA L5-20PPDU TypeBasic Shipping
