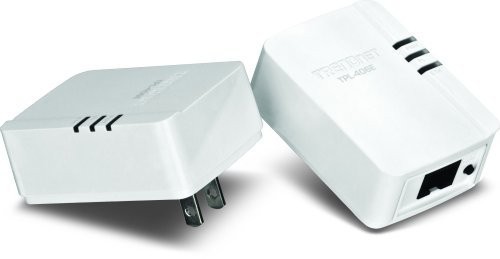

TRENDnet 500Mbps Compact Powerline AV Adapter Kit - 1 x Network (RJ-45) - 62.50 MBps Powerline - 984 ft Distance Supported - HomePlug AV - Fast Ethernet TRENDnet 500Mbps Compact Powerline AV Adapter Kit - 1 x Network (RJ-45) - 62.50 MBps Powerline - 984 ft Distance Supported - HomePlug AV - Fast Ethernet

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: 500Mbps Compact Powerline AV Adapter Kit Quick Installation Guide CD-ROM (Utility & User's Guide) 2 x Network Cables (1.5 m / 5 ft)

Certifications & Standards: IEEE 1901 IEEE 802.3 IEEE 802.3x IEEE 802.3u CE FCC

Environmentally Friendly: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Vietnam

Product Description

This item is brand-new, factory Part Number: TPL-406E2K

Features:

• Includes two TPL-406E adapters
• High speed networking over an existing electrical system
• Adapters automatically connect using an encrypted Powerline signal
• One-touch Sync button changes encryption keys
• Share data intensive files, play games, download music and more at faster data transfer rates
• Advanced 128-bit AES encryption to ensure total network security
• Support for IPv6
• Supports up to 16 IGMP based IPTV streams
• Power Save mode reduces electrical consumption by up to 80%
• Neighbor network support for up to 4 overlapping networks
• Network signal transmits up to 300 meters (984 ft.)
• Auto QoS support through traffic classification and multiple priority queuing
• Optional management utility compatible with Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems

Standards: IEEE 1901, HomePlug AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u

Interface:

• 1x 10/100Mbps Auto-MDIX RJ45 Port
• Power Prong: North America Type B (NEMA 5-15)

Frequency Band: 2 ~ 68 MHz

Modulation: OFDM Symbol Modulation on link synchronization, 1024/ 256/ 64/ 8 - QAM, QPSK, BPSK, ROBO Carrier

Protocols: TDMA and CSMA/CA

Speed:

• Powerline: Up to 500 Mbps
• Ethernet: Up to 200 Mbps (Full Duplex mode)

Utility OS Compatibility: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

Nodes: Up to 8 (max)

Overlapping Powerline Networks: Up to 4 (per electrical system)

Coverage: Up to 300 m (984 ft)

Security: 128-Bit AES (Advanced Encryption Standard)

LED:

• Power (PWR)
• Powerline (PL) Connection: Best (Green), Better (Amber), Good (Red), No Connection (Off)
• Ethernet (ETH) Connection: Solid, Blinking, Off

Buttons: Sync (3 sec.) / Reset (20 sec.)

Power Source: 100 ~ 240V AC, 50 ~ 60Hz

Consumption:

• Active Mode: 2.2 Watts (max)
• Standby Mode: 0.5 Watts (max)

Certifications: CE, FCC

Dimensions (WxLxH): 1.97 x 2.76 x 1.69 inch / 50.0 x 70.0 x 43.0 mm (per unit)

Weight: 1.8 oz / 51.0 g (per unit)

RoHS Compliant

SpecificationWireless SpecificationsWireless LANNoPower DescriptionInput Voltage

• 110 V AC
• 220 V AC

Physical CharacteristicsWeight (Approximate)12.83 Warranty3 YearInterfaces/PortsNetwork (RJ-45)YesNumber of Network (RJ-45) Ports1General InformationBrand NameTRENDnetMarketing InformationTRENDnet's Powerline 500 AV Nano Adapter Kit, model TPL-406E2K, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space around crowded electrical outlets. Use up to 8 adapters to network devices in different rooms without running new cabling. ADAPTERS: Includes two TPL-406E adapters. Two adapters are needed to start a network. Use up to 8 adapters to network devices in different rooms without running new cabling. MANUFACTURER PROTECTION: We stand by the quality of our products.The TPL-406E2K Powerline 500 AV Nano Adapter Kit is backed and supported with 3 years of TRENDnet Manufacturer Protection. NDAA COMPLIANT: With our NDAA compliant Powerline Ethernet Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) EXPAND YOUR NETWORK: Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. ETHERNET PORT: The Powerline 500 AV adapters have an Ethernet Port that extends high performance wired connections. Convenient Ethernet port that allows you to hardwire a computer, smart TV, or other network enabled device. QUICK SETUP: Get up and running in minutes with the intuitive guided setup. Simply plug in the TRENDnet powerline Ethernet adapters. The encrypted Powerline signal auto-connects over an existing electrical system. Easy no-CD installation SMALL PROFILE: The compact form factor of the powerline adapter kit stays off the ground by plugging directly into an outlet. CROSS COMPATIBLE: Backward compatible with all Powerline 600, 500, and 200 adapters PRE-ENCRYPTED: For your convenience the Powerline signal is pre-encrypted More from the Manufacturer Product TypePowerline Network AdapterProduct Part NumberTPL-406E2KProduct ModelTPL-406E2KPackaged Quantity2Media & PerformancePowerline Data Transfer Rate500 Mbit/sMaximum Distance Supported0.30 kmTitleProduct TitleTrendnet Powerline 500 Av Nano Adapter Kit, Includes 2 X Tpl-406e Adapters, Cross Compatible With Powerline 600-500-200, Windows 10, 8.1, 8, 7, Vista, Xp, Plug & Play Install, White, (TPL406E2K)Network & CommunicationEthernet TechnologyFast EthernetPowerline Transmission StandardHomePlug AVTechnical InformationMinimum Operating Frequency2 MHzModulation
