TOSHIBA 16X 40X IDE DVD-ROM.

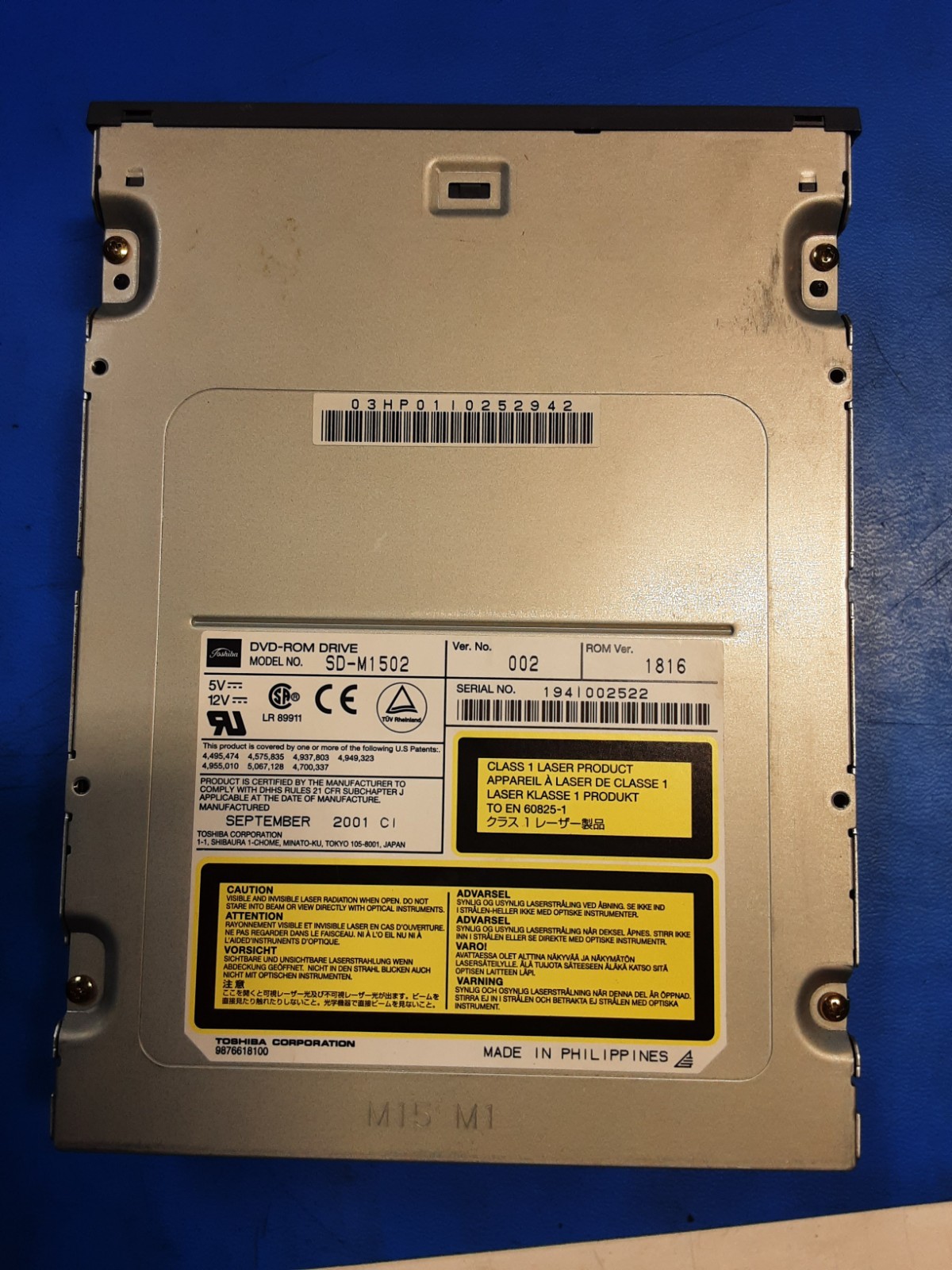

Toshiba SD-M1502 IDE DVD-ROM Drive 16X 48X CD IDE ATAPI 40 pin 5.25" 592743-A0 5185-4862
5185-4862 / 51854862
592743-A0 / 592743A0
IDE/ATAPI Interface (Primary Data Connector)• 40‑pin IDE (PATA) connectorPower Connector• 4‑pin Molex power connector (standard PC optical drive power)Jumper Block• 3‑pin jumper block for:• Master• Slave• Cable Select (CS)Audio Connectors• 4‑pin analog audio output (to sound card)• 2‑pin digital audio output (SPDIF)
🧾 Full Specification Sheet (From Toshiba Manual)General• Model: Toshiba SD‑M1502• Type: Internal DVD‑ROM Drive• Interface: ATAPI / IDE (40‑pin)• Form Factor: 5.25" half‑height• Loading Mechanism: Motorized tray• Eject Methods: Button, software eject, emergency pinhole
Supported Disc FormatsDVD• DVD‑ROM (DVD‑5, DVD‑9, DVD‑10, DVD‑18)• DVD‑R (Read)CD• CD‑DA• CD‑ROM• CD‑R (Read)• CD‑RW (Read)• CD‑TEXT• CD‑I• CD‑I Bridge (Photo‑CD, Video CD)• CD‑ROM XA• Multi‑session (Photo‑CD, CD Extra)
PerformanceDVD Read Speeds• Single‑layer DVD‑ROM: 6× – 16× (up to 9200 RPM)• Dual‑layer DVD‑ROM: 4.1× – 10× (up to 6300 RPM)• DVD‑R: 2× (1100–2800 RPM)CD Read Speeds• CD‑ROM / CD‑R: 20.7× – 48× (up to 9500 RPM)• CD‑RW: 8.6× – 20× (4300 RPM)• Audio CD: 4× – 5.7×Access Times• CD: 85 ms• DVD: 115 ms
Audio• Digital Audio Extraction (DAE): Supported• Analog Audio Output: 4‑pin• Digital Audio Output: 2‑pin SPDIF
Region Coding• RPC‑2 (Region‑locked)• User‑changeable region counter (5 changes max)
Physical• Dimensions: Standard 5.25" optical drive• Weight: ~1 lb (varies by OEM)• Bezel: Typically beige (varies by OEM)
Power Requirements• +5V DC• +12V DC(Standard optical drive power draw; exact amperage varies by batch)
Connectors (from manual diagrams)• 40‑pin IDE connector• 4‑pin Molex power• 4‑pin analog audio• 2‑pin digital audio• 3‑pin jumper block• Emergency eject hole• Eject button• LED indicator
