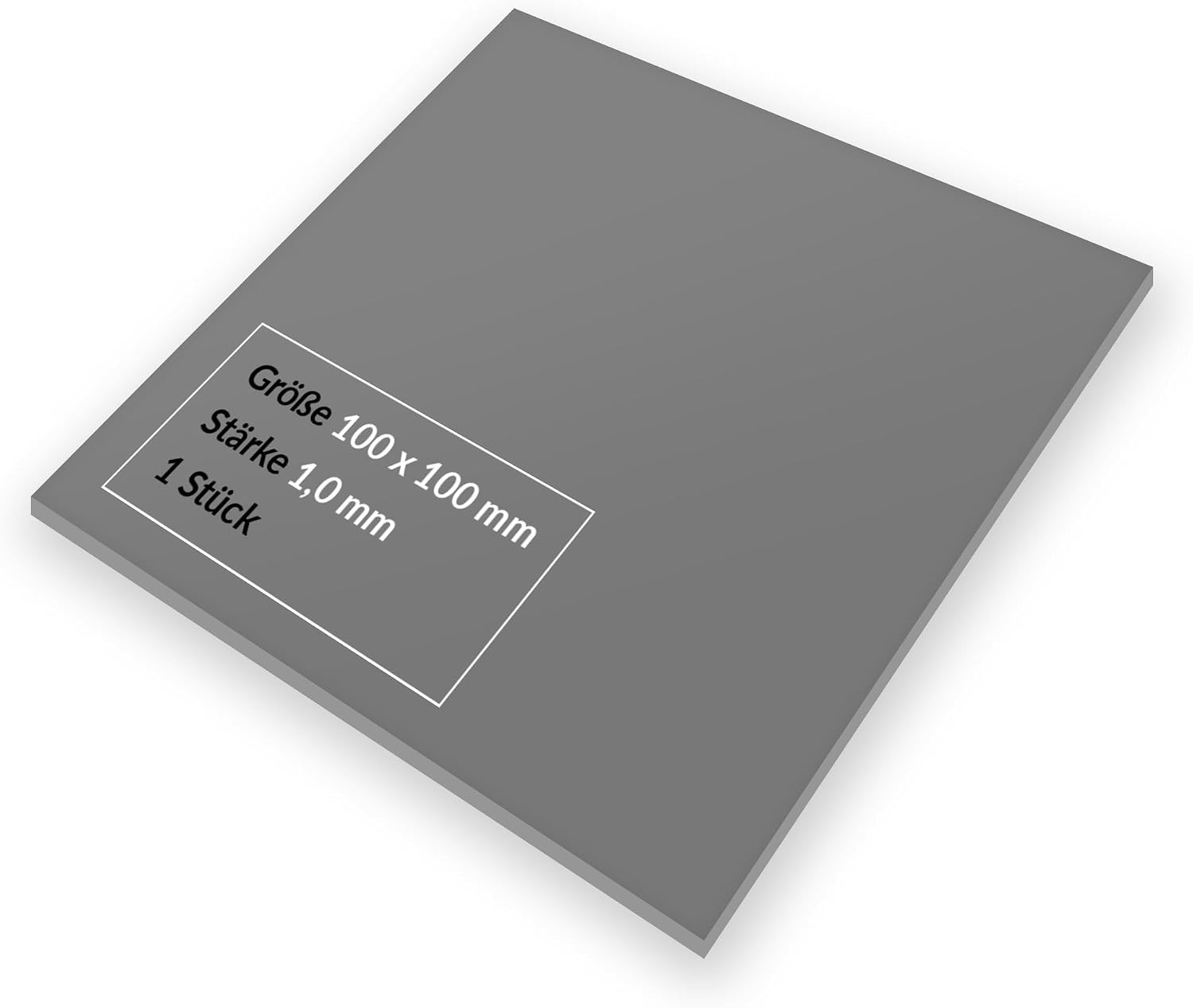

Thermal Pad 100x100x1.0 mm Grey High Conductivity Heat Sink Interface Pad 1.0mm

• HIGH-PERFORMANCE THERMAL CONDUCTIVITY WITH TP-4: Ultra-soft, silicone-based pad outperforms many high-end alternatives, ensuring excellent heat transfer even across uneven chip surfaces.
• OPTIMAL COMPRESSION FOR LOWER THERMAL RESISTANCE: Highly compressible material (e.g., 0.5 mm to 0.3 mm) minimizes thermal resistance and compensates for height differences up to 40%.
• PERFECT GAP-FILLING PERFORMANCE: Adapts seamlessly to uneven surfaces and air gaps, providing reliable contact without stressing sensitive components.
• VERSATILE APPLICATION ACROSS DEVICES: Ideal for RAM, GPUs, laptops, consoles, M.2 SSDs, and various electronic components requiring efficient thermal management.
• SAFE AND USER-FRIENDLY DESIGN: Electrically insulating, non-adhesive, and vibration-dampening for secure handling and long-term reliability.

High Performance - Extremely Soft

The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips. The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed by up to 60% of its original thickness.

Safe Application

Electrically insulating, non-adhesive, and easy to handle—for safe and reliable heat transfer. Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.

Available in Various Thicknesses and Sizes

Available in 0.5 mm, 1.0 mm, and 1.5 mm thicknesses as well as multiple sizes. Can be individually cut to size if needed. Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal-transfer performance.

Product DetailsColorGreyHardness50 Shore OOItem Weight1.62 ouncesFlammabilityUL94 V-0Specific Gravity3.4 g/cm³Breakdown Voltage8.62 kV/mmCompression Ratio47 % @50 psiItem model numberACTPD00063AVolume Resistance1.52 x 10¹² Ω-cmProduct Dimensions3.94 x 3.94 x 0.04 inchesTensile Strength1 psiDate First AvailableNovember 13, 2025Dielectric Constant @1MHz7.2 @ 1MHzContinuous Use Temperature40~150°C
