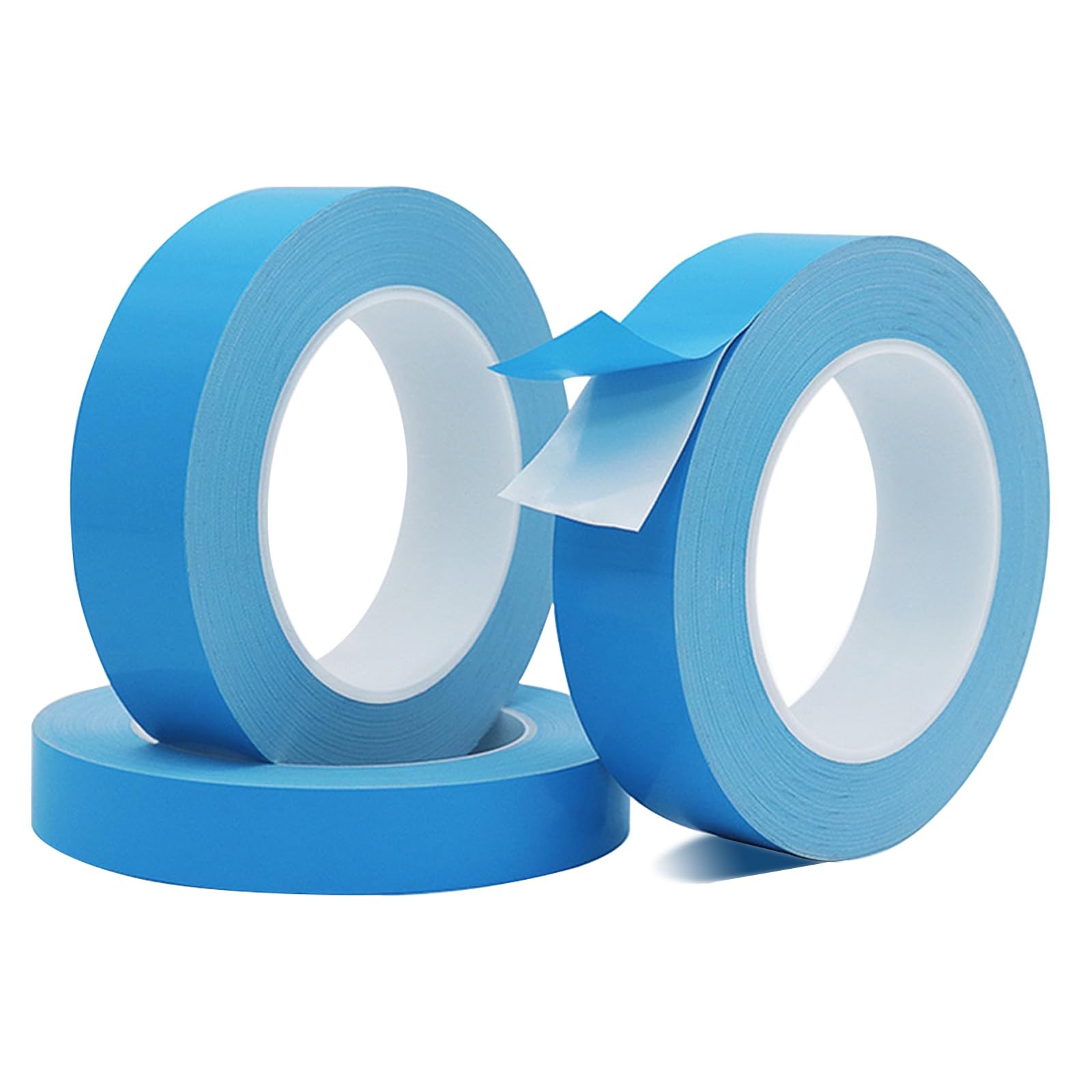

Thermal Adhesive Tape, 25 m x 15 mm x 0.2 mm Dual Side Thermal Conductive Tape Cooling Heatsink Pad for LED IGBT IC Chip Computer CPU GPU Modules MOS Tube SSDProduct Information
- STRONG ADHESION - The heatsink tape boasts powerful adhesion that makes cooling random objects much easier as it combines the heat sinks and electronic devices into it. There's no longer need to fix the electronic devices and radiators with instrument or liquid adhesive, easy & convenient
- WIDE APPLICATION - The double side thermal tape featuring electrically insulated , thermally conductivity and strong adhesion is ideal for Heatsink, LED Strips, IGBT, IC Chip, Computer CPU, GPU, Modules, MOS Tube, SSD Drives. This is a must have product for electronics enthusiasts
- HIGH THERMAL CONDUCTIVITY - Made of acrylic polymer which filled with heat conductive ceramic powder and silicone adhesive compound, the thermal tape has high thermal conductive and insulating properties. The lifespan is longer than the general heat-dissipating double-sided sticker, and it can work for at least 5 years
- EASY TO USE - Simply stick it on the surface of any object, then tear the blue release paper. The tape will tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation. Just press it slightly, this adhesive tape sticks incredibly well and works right away, no curing time
- ROHS CERTIFIED& UL THE ENVIORMENT - With high thermal conductivity 1.5 W/m.K to meet most of electronics heat dissipation demands, the thermal tape offers excellent flexibility that can be easily used in uneven surface. And these heat sink tape can replace the hot melt adhesive, screw, fastener for fixing mode
Features
Thermal Tapes Product Specification:
Dimension: 10~15~20 mm x 25 m
Thickness: 0.2 mm
Reinforcement Carrier : Fiberglass Mesh
Thermal Conductivity:1.5 W/m.K
Breakdown Voltage: 4KVAC
Thermal impedance : 0.3℃ in 2/w
Initial Adhesion: 1.3 kg/inch
180°Adhesion power: >16 N/25 mm
Heat Resistance: 120°C (long time), 180°C ( short time)
Applicable temperature range: -30~+120 °C Application:
Electronics Components: IC、CPU 、MOS .......
LED, M/B, P/S, Heat Sink, LCD -TV, Notebook PC, PC, Telecom Device, Wireless Hub, DDR Module, DVD Applications, Hand-set Application
Features:
★ Good adhesion
★ Very good thermal conductivity
★ Soft and compressibility
★ Easy to assemble
★ Long working: A minimum of 5 years in normal working temperature(80-120℃ )
Notes For Attention:
1. When using thermal conductive double-sided tape, keep the adhesive surface clean and dry.
2. After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength).
3. The viscosity of the heat-conductive double-sided adhesive tape have initial viscosity and persistent viscosity, and at room temperature, it takes 72 hours to achieve the maximum adhesive strength. That is, at the beginning of the sticky adhesive that is the initial viscosity to 40% of its maximum viscosity, persistent stickiness is stable over time.
4. In the paste process, the appropriate heating (60 ~ 70 ℃), will greatly contribute to the effective increase in the area of adhesive, and as soon as possible to achieve maximum adhesion.
In the lower temperature of the winter, it's little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape.
Package included:
Roll Thermal Conductive Double-sided Tape
