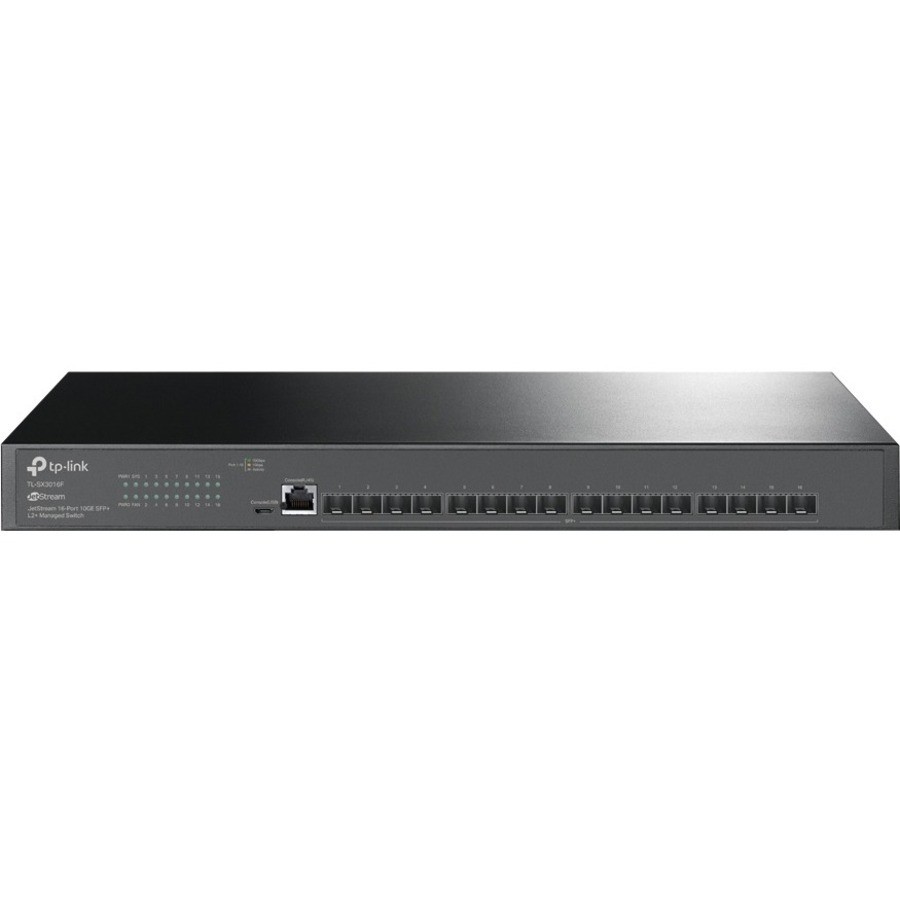

TP-Link JetStream 16-Port 10GE SFP+ L2+ Managed Switch (TL-SX3016F) TP-Link JetStream 16-Port 10GE SFP+ L2+ Managed Switch (TL-SX3016F)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: JetStream 16-Port 10GE SFP+ L2+ Managed Switch 2 ? Power Cords Quick Installation Guide Rackmount Kit Rubber Feet
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
TL-SX3016F
JetStream 16-Port 10GE SFP+ L2+ Managed Switch < br>16 Full 10GE SFP+ Slots: -fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Future-Proof Your Business with Full 10G Fiber Switch
JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Full Fiber Switch with -Fast 10G
Build and expand your -fast network with TP-Link TL-SX3016F-a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.HARDWARE FEATURES
Interface
16x 10GE SFP+ Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Fan Quantity
1
Power Supply
100-240 V AC-50/60 Hz
Mounting
Rack Mountable
Max Power Consumption
32.74 W (220 V / 50 Hz)
Max Heat Dissipation
111.71 BTU/hr (220 V / 50 Hz)PERFORMANCE
Switching Capacity
320 Gbps
Packet Forwarding Rate
238.08 Mpps
MAC Address Table
32 K
Jumbo Frame
9 KBSOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/BothL2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLANSecurity
IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTPL3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System LogAdvanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)
MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBOTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SX3016F Switch
2 Power Cords
Quick Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 045 oC (32113 oF)
Storage Temperature: -4070 oC (-40158 oF)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensingItem Dimension (L"xW"xH")
21 x 14 x 4
Weight
9 lbs
Warranty Information
Limited Lifetime WarrantyPackage Contents:
- JetStream 16-Port 10GE SFP+ L2+ Managed Switch
- 2 Power Cords
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
SpecificationManagement & ProtocolsManageableYesPower DescriptionPower SourcePower SupplyFrequency
Power Consumption32.74 WPhysical CharacteristicsForm Factor
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1ab
