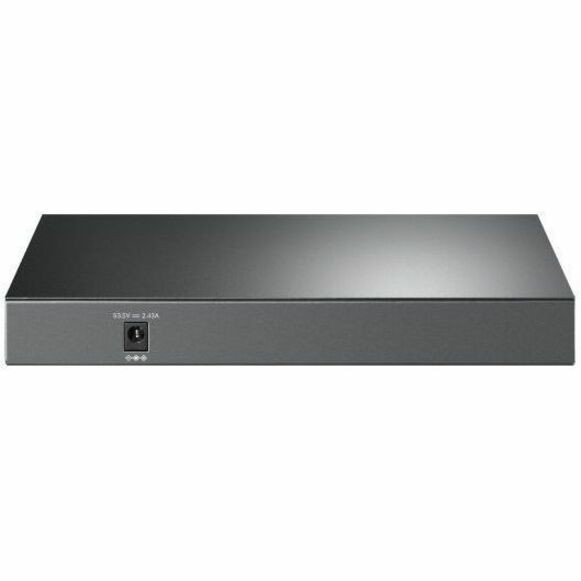

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ (tl-sg105pp-m2) TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ (tl-sg105pp-m2)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: 5-Port 2.5G Desktop Switch with 4-Port PoE++ Power Adapter Installation Guide Rubber Feet

Environmentally Friendly: Yes

Application/Usage: Network

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

TL-SG105PP-M2
5-Port 2.5G Desktop Switch with 4-Port PoE++
5 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
With four PoE++ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt type3 compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 60 W for each PoE++ port
Supports PoE Power up to 123 W for all PoE ports
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play, no configuration and installation requiredHARDWARE FEATURES
Interface
5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
18.6 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at/bt type3 compliant
PoE++ Ports: Ports 14
Power Supply: 123 W
Mac Address Table
4K
Switching Capacity
25 Gbps
Max Power Consumption
7.57 W (220/50 Hz. no PD connected)
143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
25.81BTU/h (220 V/50 Hz with no PD connected)
488.89 BTU/h (220 V/50 Hz with 123W PD connected)SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-ForwardOTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105PP-M2
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensingItem Dimension (L"xW"xH")
13 x 10 x 3

Weight
3.38 lbs

Warranty Information
Limited Lifetime SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower AdapterPoE Budget123 WInput Voltage53.5 V DCPoE (RJ-45) PortYesPower Consumption143.37 WPhysical CharacteristicsProduct MaterialSteelForm Factor

• Wall ColorBlackHeight1"Color (RJ-45)YesPort/Expansion Slot Details5 x 2.5 Gigabit Ethernet PoE++Total Number of Network Ports5General InformationBrand NameTP-LinkProduct TypeEthernet SwitchProduct Name5-Port 2.5G Desktop Switch with 4-Port PoE++ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG105PP-M2Product ModelTL-SG105PP-M2Media & PerformanceEthernet Technology2.5 Gigabit EthernetMedia Type SupportedTwisted PairNetwork Technology2.5GBase-TTitleProduct TitleTP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ (TLSG105PPM2)Network & CommunicationLayer Supported2Networking Standards
  • IEEE 802.3bt
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3ab
  • IEEE 802.3
  Technical InformationFeaturesFanless Shipping
