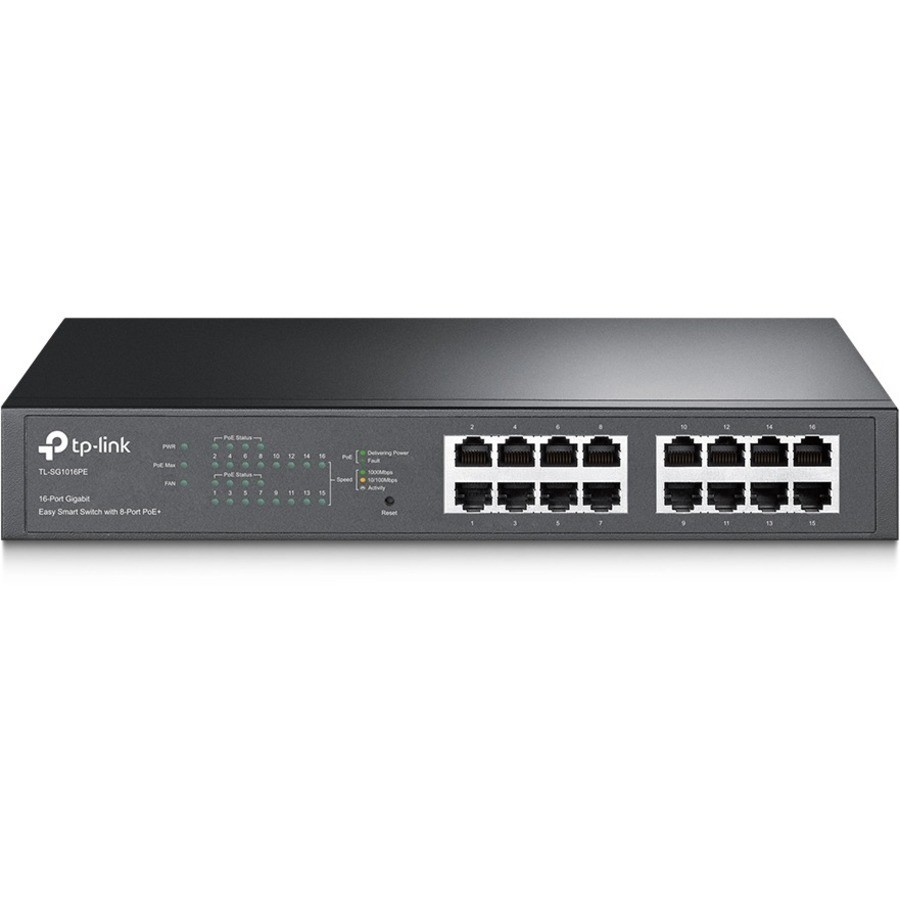

TP-LINK 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ (tl-sg1016pe) TP-LINK 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ (tl-sg1016pe)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ Power Cord Installation Guide Rackmount Kit Rubber Feet
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is > 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
Fan Quantity
1
Physical Security Lock
Yes
PoE Ports (RJ45)
Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Mounting
Rack Mountable
Max Power Consumption
14.72W (110V/60Hz with no PD connected)
131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation
50.22 BTU/h (with no PD connected)
448.41 BTU/h (with 110W PD connected)PERFORMANCE
Switching Capacity
32Gbps
Packet Forwarding Rate
23.8Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1Mbit
Jumbo Frame
9KBSOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-ForwardOTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows for running Utility
Environment
Operating Temperature: 0oC-40oC (32oF-104oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensingItem Dimension (L"xW"xH")
16 x 4 x 10 Weight
5.51 lbs Warranty Information
Lifetime SpecificationManagement & ProtocolsManageableYesPower DescriptionRedundant Power Supply SupportedNoPower SourcePower SupplyPoE Budget110 WPoE (RJ-45) PortYesPower Consumption14.70 WPhysical CharacteristicsForm Factor
- 8 x Gigabit Ethernet PoE+
- 8 x Gigabit Ethernet Network
Total Number of Network Ports16ModularNoGeneral InformationBrand NameTP-LinkMarketing Information What This Product Does The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network. How This Product Works 8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones. Overload Arrangement TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 124W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port. Port Priority Function Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use. Easy To Use TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network. More from the Manufacturer Product TypeEthernet SwitchProduct Name16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG1016PEProduct ModelTL-SG1016PEMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type SupportedTwisted PairNetwork Technology10/100/1000Base-TTitleProduct TitleTP-Link TL-SG1016PE - 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ - Limited Lifetime Protection (TLSG1016PE)Network & CommunicationLayer Supported2Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1p
