TEAC 32X CD-ROM Drive | 50 Pin SCSI Interface | Model CD532S / CD-532S-002 | 19770350-02 | NEW - Open BoxItem was purchased ~ 20 years ago as a backup, stored away and never used.
Recently unearthed from closet storage.Because of the age and lack of security seals, the box was opened to verify contents and condition.
Item appears to be NEW and unused, but being listed as Open Box.
This product is designed to provide maximum CD-ROM playback performance, enjoyment and ease of use.The TEAC 32X speed CD-ROM Drive can read certain data 12 to 32 times faster than conventional speed CD-ROMs.
It also plays 8X, 4X and 2X title at their respective speeds.
It is easy to operate, dust proof, and features a convenient power tray for disc loading.
This Drive ->ModelTEAC CD-532S-002MPN19770350-02Serial #1219573ManufacturedNovember 2000Recommended System Requirements [ Taken From the Enclosed Installation Guide ] ->
- Pentium 133MHz or Higher Model IBM PC Compatible
- Intel Triton or Compatible Chip Set with PIO Mode 4 or DMA Mode 2 Settings
- 8MB RAM - Minimum
- Available Half-Height Drive Bay
- Compatible SCSI Adapter Card or Compatible Sound Card with SCSI Interface Adapter
- DOS Version 6.0 or Higher
- MSCDEX.EXE 2.23 or Higher if Not Running MS-DOS 6.0 or Higher
- Windows 3.1x / Windows 95 / Windows NT
CD-532S Specifications
DiscCD-ROM Formats Supported
- CD-DA
- CD-ROM Mode-1
- Mode-2 [ Form 1, Form 2 ]
- XA Ready
- CDI
- Multi-Session Photo CD
- Video CD
- i-Trax CD
Read CompatibilityRead CD-R Discs at up to 32X
CD-RW Discs at 4X SpeedDisc Diameter12cm or 8cm
Drive PerformanceData Transfer RateSustained -> 4,800KBps Max to 3,700KBps Average
Burst -> 5MB/sec Max Async | 20MB/sec SyncRotational Speed6,850 rpmAccess Time85ms ( 1/3 Stroke ) TypicalData Buffer Capacity512KBMounting OrientationHorizontal or VerticalOptical PickupSemiconductor LaserSlide MechanismGear MotorSpindle MotorBrushless MotorError RateMode-1 & Mode-2, Form 1 -> 1 block/1012 bits
Mode-2 Form 2 & CD-DA -> 1 block/109 bits
Front PanelButtonAuto Eject or Auto InjectIndicator [ LED ]Power On / BusyHeadphone OutputStereo mini-jack [ 3.5mm ] 0.6 ± 0.3V; 32
Rear PanelRequired Power+5VDC, 0.3A, +12VDC, 0.6A [ Average ]Interface ConnectorSCSI, 50 pin, Header TypeAudio OutputLine Out 0.8 ± 0.3V; 47K
Operating EnvironmentPlace of OperationTemperature 5° to 45° C
Humidity 20% to 80% [ Non-Condensing ]Place of StorageTemperature -30° to 55° C
Humidity 10% to 80% [ Non-Condensing ]
Note: These Storage Specs Were Met
Dimensions / WeightDimensions [ W x H x D ]5.75" x 1.63" x 7.56" | 146mm x 41.3mm x 192mmWeight2.53 lbs | 1,150g
ReliabilityMTBF100,000 POH [ Duty 10% ]Safety StandardsUL
CSA

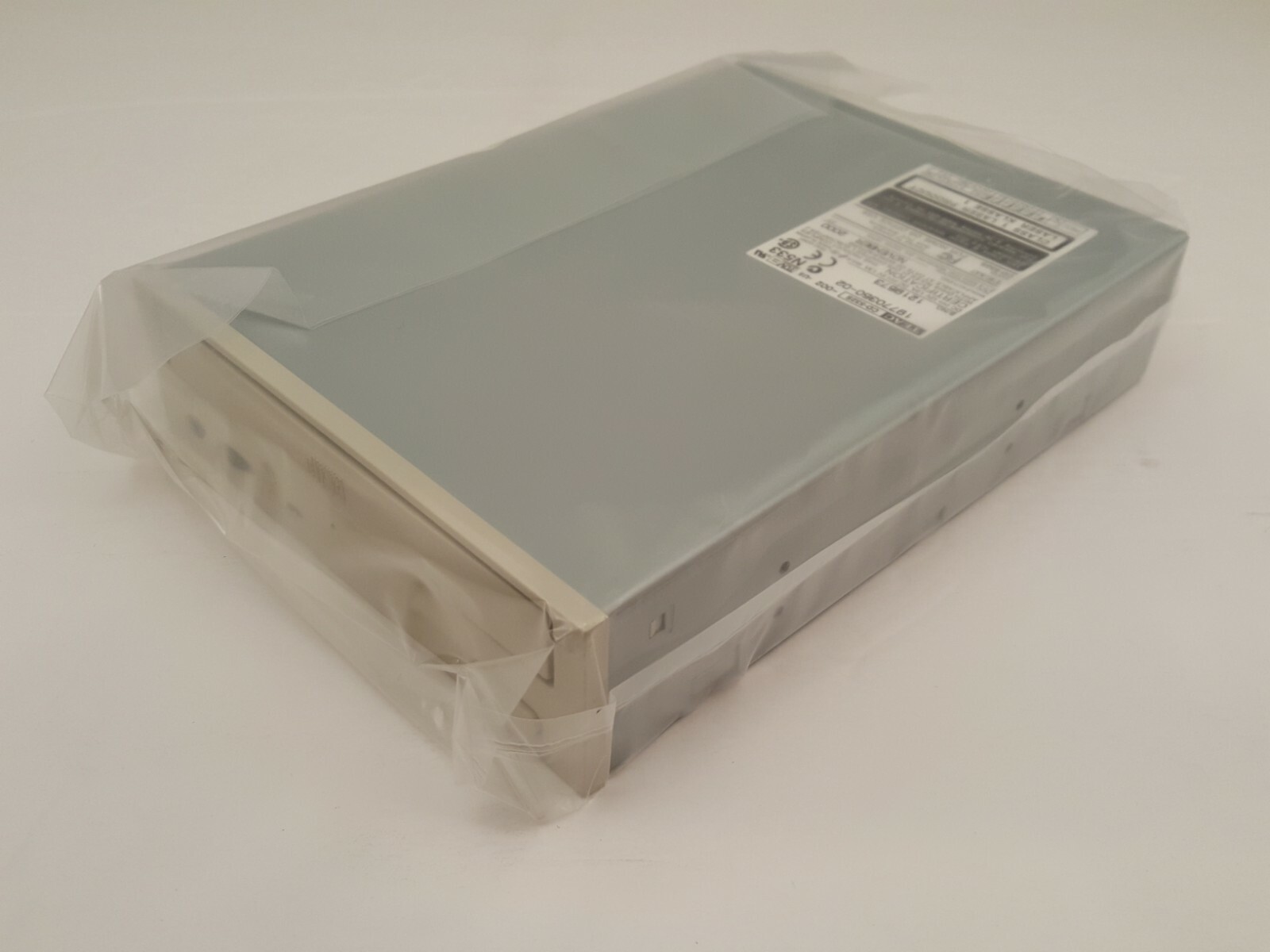

TUVPicture 1 shows:Top Down Angle View of DrivePicture 2 shows:Front of BoxPicture 3 shows:Right Side of Box with UPCPicture 4 shows:Left Side of Box with Serial #Picture 5 shows:Front Down Side Angle View of BoxPicture 6 shows:Open Box with Drive as FoundPicture 7 shows:Top of Drive w/ Manufacturer Label | Serial # on Drive Matches BoxPicture 8 shows:Front of DrivePicture 9 shows:Back of Drive
Miscellaneous
Information
Non-professionally taken pictures are of the actual item being shipped.Return Policy
This item is being sold *AS IS* and as pictured.** NO RETURNS ACCEPTED ON THIS ITEM **Make certain this is an item you can make use of before offerding.
Payment Method Any Managed Payment MethodPackaging
Item ships in a 10 x 13 x 4 Box
Item has a shipping weight of approximately 3 LB 7 OZ
Shipping Method
USPS or FedEx Preferred : Most economic and trackable option
Contact seller prior to offerding to discuss alternate shipping methods.Item will USUALLY ship within one business day after payment is received;
GUARANTEED to ship within three business days after payment is received
