Targus universal AC Power notebook adapter5 connecting Tips

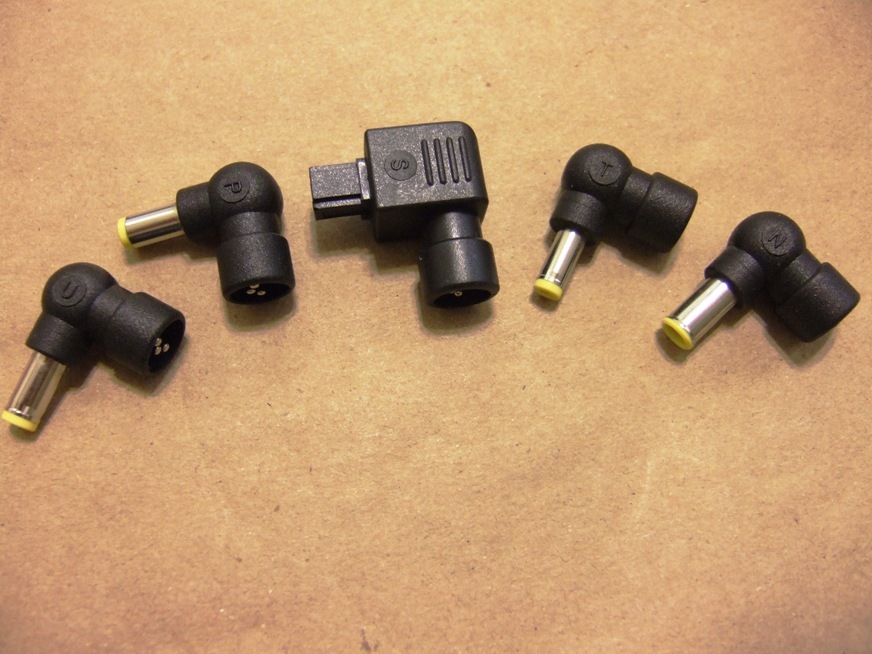

This listing is for 5 connectingTips (P, S, T, N, & U)that are used in the following Targus AC adapter:
90W (AC adapter model #APA03US /PA-1900-04) or 75W (AC adapter model # PA-1750-08),
and other modelswhich usesthe same3-prong connectorsfrom the adapter cable (as shownin pictures)
Tip P -5.45mm (Outside Diameter) x2.40 mm (Inside Diameter),nocenter pin
Tip S -For Dell Inspiron C-series laptops
Tip T -4.80mm (Outside Diameter) x1.70mm (Inside Diameter), no center pin
Tip N -6.00mm (Outside Diameter) x4.35mm (Inside Diameter),withcenter pin
Tip U -5.50 mm (Outside Diameter) x 2.00mm (Inside Diameter), no center pin
Please note:
- This listing ships 5 connecting tips ONLY. AC adapter is not included.
- If the laptop model is not listed, it may work with one of the tips, but we do not guaranteecompatibility
- Make sure that the connector from the AC adapter as a3-prong/round connector as shown in pictures.
- If your AC adapter connecting tip has a needle center pin,noneof these tips will work.
- Please reference dimensions listed. If the connecting tip does not fit perfectly to the power socket on your laptop, it may damage either the AC adapter and/or your laptop.
Laptop Compatible models for these tips (this is not a complete list):
Tip PCompatibility Chart-
5.45mm (Outside Diameter) x2.40 mm (Inside Diameter),nocenter pin
ACER Acernote: 367D, 367T, 390; Anywhere: 1100LX, 1120LX; Extensa: 365, 390, 393, 900, 366D, 367D, 368D, 390C, Ess3-391T
Averatec 5100, 3120V, 3150H, 3150HD, 3150HS, 3150HW, 3150P, 3220, 3220H, 3225HS, 3250Hl, 3250HX, 5110H, 5110P, 5110HX
CompaqEvo: N115, N160, N180 Presario: 700 series, 800 series, 1000 series, 1200 series, 1400 series, 1600 series, 1700 series, 1800 series, 2100 Series, 2500 Series, 2700 series, 3000, 3005, 3015, 3017, 3019, 3020, 3080, 12XL, 14XL, 1600i, 16XL, 17XL, 1800t, 18XL, 2700xx; Prosignia: 150; BusinessNotebook: NX9005, NX9010
Dell Inspiron: 3000, 3200, 3500, 7000
E-Machines Eslate: 400K, 450K
Fujitsu LIfeBook: A1010, Amilo L, C1020, C2010, C2110, C2210, E4010, E4010D, E-6624, E-6634, E-6644, E-6654, E-6664, E7010, E7110
Gateway Solo: 1100, 1150, 1200, 1400, 1450, 2150, 2500, 2550, 3100, 3150, 3300, 3350, 5150, 5300, 5350, 9100, 9150, 9300, 9500, 9550, 400SD4, 400VTX, 405E, 405X, 450ROG, 450SX4, 600YG2, 600YGR, M305, M500
HP Omnibook: 300, 425, 430, 500, 510, 530, 900, 2000, 2100, 2103, 2105, 3000, 3100, 3101, 4000, 4100, 4101, 4103, 4105, 4150, 5000, 5500, 5700, 6000, 6100, 7100, 7103, 7150, 600c, 600ct, 900b, vt6200, xe series, xt series, N3000; Pavilion: 2105, 3101, 4101, 4103, 4105, 5159, N3100 series, N3200 series, N3300 series, N3400 series, N5100 series, N5200 series, N5300 series, N5400 series, N6190, N6195, N6300 series, N6400 series, xf series, xh series, xt series, xu155, xz series, ze series, zt series, zu1155, zu1175, N5000btco, N5511, N5584
Sharp PC-3010, PC-3020, PC-3050, PC-3060, PC-3150, AV18, AV18P, MC22, MV10W, MV12W, MV14
ToshibaSatellite: 1000, 1005, 1100, 1110, 1115, 1130, 1135, 1200, 1605, 1625, 1675, 1695, 1715, 1730, 1735, 1750, 1755, 1905, 1955, 2430, 2435, 3000, 3005
Winbook J1, N, Si, Si2, X1, X2, X4, XL, Xli, XP, Z
HITACHI VISIONBOOK: 133, 4000, Plus, Plus 4000, Plus 4140
IBM THINKPAD: 240, 290, 365, 380, 385, 390, 560, 570, 600, 701, 770, 240X, 365DX, 380D, E80E, E80ED, E80XD, 380Z, 385D, 385XD, 390E, 390X, 560E, 560X, 560Z, 600E, 600X, 770E, 770EC, 770X, 770Z, A series, R series, T series, X series, Transnote
PANASONIC TOUGHBOOK: CF-R1, CF-T1, CF-T2
Tip SCompatibility Chart -
For Dell Inspiron C-series laptops
Dell For Inspiron C-series laptops
Tip TCompatibility Chart (Works with manyCompaqlaptop models including)
4.80mm (Outside Diameter) x1.70mm (Inside Diameter), no center pin
Armada: 110, E500, E500S, E700, M300, M700, V300; Evo: N110, N150, N200, N400c, N410c, N600c, N610c, N620C, N800c, N800v, N800w, N1000v, N1015v, N1020v, Presario: 300, 900 Series, 1500 Series, 2800 series, 2900 series, , V1000 Series, V1100 Series, X1000 Series, X1200 Series, X1300 Series, X1460, X1480; Prosignia: 170, 190; Tablet: TC1000; Business Notebook: NC4000, NC6000, NC8000, NW8000, NX7000; FX, XP5 Pro
Tip NCompatibility Chart
6.00mm (Outside Diameter) x4.35mm (Inside Diameter),withcenter pin
Panasonic
Toughbook: CF-V21, CF-V21P
Samsung
Sens: 500, 810
SensPro: 500, 505, 520, 521, 525
Sony
VAIO: 81, 705, 707, 717, 719, 729, 731, 735, 748, 800, 808, 812, 818, 838, C1XW, F Series, F150, F160, F180, F190, F250, F270, F280, F290, F304, F305, F309, F340, F350, F360, F370, F390, F400, F400LT, F403, F409, F420, F430, F450, F480, F480K, F490K, F520, F540, F540K, F560, F560K, F580, F580K, F590, F590K, F630, F660, F670, F680, F690, F701, F707, F709, F709K, F801, F801A, F807, F807K, F808K, F809K, FR102, FR105, FR130, FX series, GRS series, GRX series, NV100, NV105, NV109M, NV170, NV190, NV200, NV209, NV309, NVR23, PG32, QR10, QR20, R500, R505CT, R505D, R505DT, R505J, R505T, R505TE, R505TEK, R505TS, R600HEK, R600HEP, R600HFPD, R600HMPD, R600MX, V505AP, X18, X29, X9, XE17, XE7, XG18, XG19, XG28, XG28K, XG29, XG38, XG39, XG39K, XG500, XG700, XG9, Z505, Z505FA, Z505GA, Z505GAH, Z505GAM, Z505HE, Z505HS, Z505HSK, Z505JE, Z505JEK, Z505JS, Z505JSK, Z505LE, Z505LEK, Z505LS, Z505LSK, Z505R, Z505RX, Z505S, Z505SX, Z600HEK, Z600LEK, Z600NE, Z600NEK, Z600RE, Z600TEK, Z1R5P
PANASONIC TOUGHBOOK:
CF01, CF11, CF17, CF170, CF270, CF370, CF380, CF25, CF27, CF28, CF33, CF34, CF35, CF37, CF41, CF45, CF47, CF61, CF62, CF63, CF71, CF-M34, CF-V25, CF-V41
SAMSUNG
SENS: 700, 800
SONY
PICTUREBOOK: C1X
VAIO: C1MHP, GR100, GR100K, GR114EK, GR114MK GR114SK, GR150K, GR170K, GR200, GR200K, GR200P, GR214CP, GR214EP, GR214MP, GR215MP, GR215SP, GR250, GR250K, GR250P, GR270, GR270K, GR270P, GR290, GR290K, GR290P, GR300, GR314MP, GR315MP, GR370, GR390, GR414SP, S150, S150P, SR11K, SR17, SR17K, SR1K, SR21K, SR5K, SR7K, SR9G, SRX41P, SRX51P, SRX51PA, SRX51PB, TR1A, TR1AP, TR2A, TR2AP1, TR2AP3, TR3AP1, TR3AP2, V505A, V505AC, V505AXP, V505B, V505BC, V505BX, V505BXP, V505D, V505DC1, V505DC11, V505DC1P7, V505DX, V505DXP, V505EXP, V505EC, VX71P, X505, X505ZPKIT, X505ZPKIT2, Z1, Z1A, Z1AP1, Z1AP2, Z1AP3, Z1M, Z1R5P, Z1RA, Z1RAP1, Z1RAP2, Z1RAP3, Z1SP, Z1VAP, Z1WAMP, Z1WAP, Z1ZAP1, Z505AX, Z505AXP
Tip UCompatibility Chart
5.50 mm (Outside Diameter) x 2.00mm (Inside Diameter), no center pin
ACERAcernote: 350, 355, 356, 370C, 374, 850C; AcernoteLight: 350 Series, 360 Series, 370, 370C, 370P, 370PC, 372, 373, 373+, 380 Series, P100; Extensa: 355, 500, 501DX, 501T, 502D, 503DX, 505DX, 506DX, 600, 610, 610CD, 610CDT; Travelmate: C300, 505DX, 506T, 507DX, 507T, 524TX, 524TXV
IBM ThinkPad: 310, 1400-2611, 1500-2611, 310D, 310E, 310ED
Sharp PC-3030, PC-3040, PC-3070, PC-8700, PC-8800, PC-8900, PC-9010, PC-9020, PC-9030, PC-9050, PC-9080, PC-S400
Winbook
