Support 12/13/14th Gen LGA1700 CPU NAS Motherboard Q670 Intel vPro For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

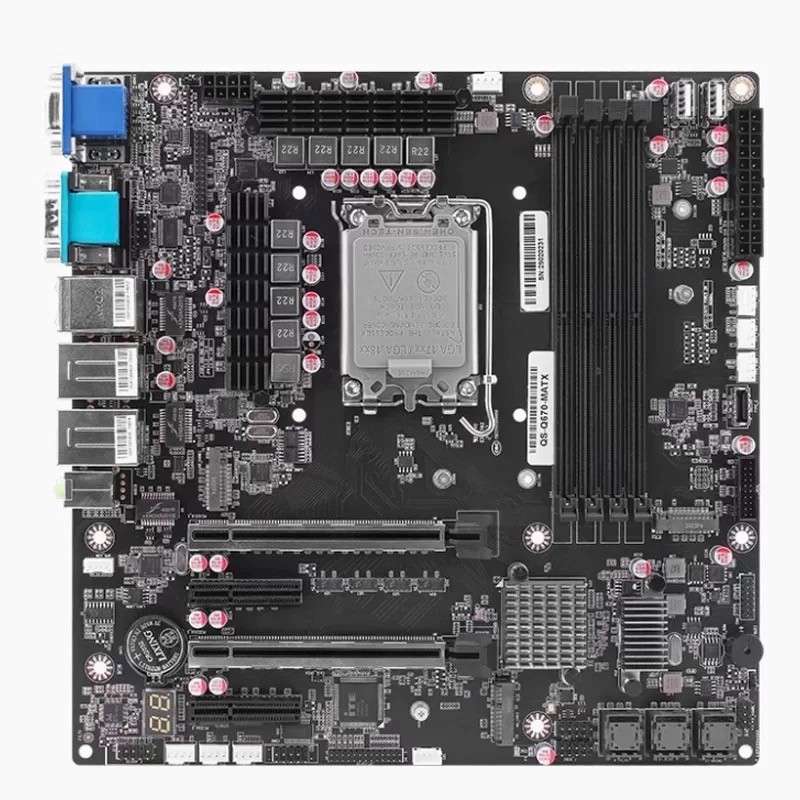

Support 12/13/14th Gen LGA1700 CPU NAS Motherboard Q670 Intel vPro

Price: CN $319.00

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for style="text-align: left;">

Support 12/13/14th Gen LGA1700 CPU NAS Motherboard Q670 Intel vPro

Motherboard Features

Matte black PCB
8-layer high-density fiberglass circuit board
Full protection (supports all USB, audio, and network interfaces)

Processor

Supports Intel 12th/13th/14th Gen LGA1700 desktop processors
Note:vPro functionality requires an i5-1X500 or higher processor (F-series not supported; requires integrated graphics).
Note:Default support for 125W TDP processors; K-series processors are not recommended.
Note:Recommended to use T-series processors (e.g., 13500T) for energy efficiency and long-term use.

Memory

Supports desktop U-DIMM DDR5 memory (ECC not supported)
4 × U-DIMM DDR5 dual-channel memory slots
DDR5 default support: 5600MHz (Note:12th Gen processors only support 4800MHz)
Max single stick: 32GB | Max motherboard support: 128GB

TDP

Base power consumption: 125W

Storage

2 × M.2 NVMe PCIe 4.0 x4 slots (2280-22110 compatible)
12 × SATA3.0 (6Gbps) (expanded via three SFF-8643 interfaces)

Networking

2 × Intel i226-V 2.5G RJ45 ports
1 × Intel i226-LM 2.5G RJ45 port (supports vPro remote management)

Graphics

Integrated graphics determined by CPU
PCI-E x16 slot supports various PCI-E graphics/network cards
HDMI 2.0: Supports 4K @ 4096×2160, 60Hz
DP 1.4: Supports 4K @ 4096×2160, 60Hz
VGA: Supports 1080P @ 60Hz

Onboard Interfaces

1 × CPU-FAN header
6 × SYS-FAN headers
1 × 8-pin ATX power connector
1 × 24-pin ATX power connector
1 × USB 3.0 socket
1 × Type-C socket
1 × eDP display output
2 × M.2 NVMe PCIe 4.0 x4 slots (2280 & 22110 compatible)
3 × SFF-8643 interfaces (expandable to 12 SATA3.0 drives)
4 × U-DIMM DDR5 slots
2 × PCI-E x16 slots (runs at x8 speed if both are used)
2 × PCI-E x4 slots
2 × USB 2.0 vertical headers (for dongles/boot drives)
1 × USB 2.0 pin header
1 × CNVi Wi-Fi slot (supports AX201/211/401/411 cards only)

Rear I/O Panel

1 × HDMI 2.0
1 × VGA
1 × DP 1.4
1 × BIOS reset button
1 × Type-C 3.2 Gen2×2 port (no display support)
1 × Serial port (DB9)
3 × 2.5G RJ45 ports
2 × USB 2.0 ports
4 × USB 3.0 ports
2 × Audio jacks

Form Factor

mATX: 9.6 × 9.6 inches (244 × 244 mm)
Solid-state capacitor design

Operating System

Supports Microsoft Windows Server/10/11 64-bit
Linux compatible
EFI mode only
