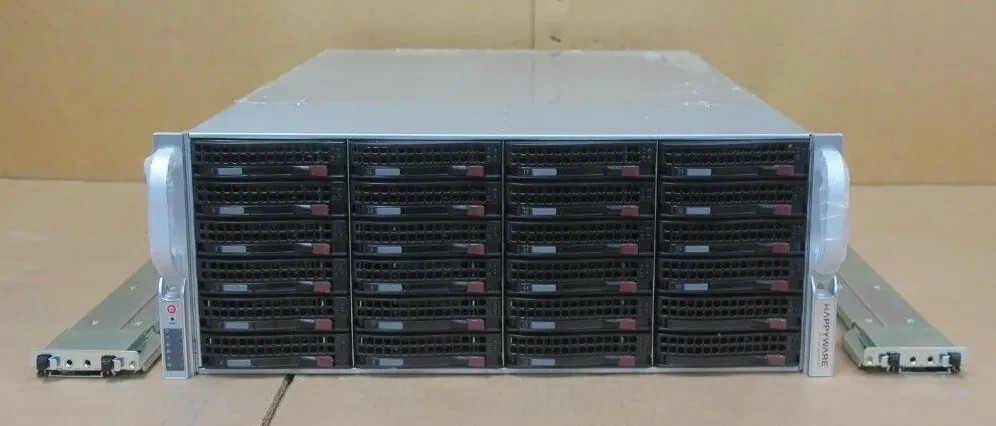

Supermicro SuperChassis CSE-846 E5-1620v3 16GB Ram 36.56TB Storage X10SRL-F Chassis Part Number:CSE-846 Motherboard Part Number:X10SRL-Frev 1.01 Front BackplanePart Number:BPN-SAS2-846EL1 rev 1.10 Rear Backplane Part Number:BPN-SAS-2PT rev 1.00 In Good Condition, Full Working Order Tested 1 Year Warranty Includes Rails
Specifications: - 1 x Supermicro SuperChassis CSE-846 4U Server Chassis With:
- 1 x Intel Xeon Quad-Core E5-1620v3 3.50GHz Processor CPU with 1x Heatsink AHS-S20041
- 4 x 4GB DDR4 Memory
- Motherboard: X10SRL-F
- 24 x Front 3.5"SAS/SATA/SSDDrive Bays BPN-SAS2-846EL1 With:
- 9 x Toshiba 4TB 7.2K SATA 6Gb/s 3.5" Hard Drives MG03ACA400 In 3.5" Caddy
- 2 x Intel 200GB SATA 6Gb/s 2.5" Solid State Drives SSD SSDSC2BA200G3 In 3.5" Caddy
- 2 x Rear 2.5"SAS/SATA/SSDDrive Bays BPN-SAS-2PT With:
- 2 x Intel 80GB SATA 6Gb/s 2.5" Solid State Drives SSD SSDSC2BB080G4 In 2.5" Caddy
- 1 x LSI MegaRAID SAS 9271-8i 8-Port PCIe 3.0 x8 RAID Card With 1GB Cache + Battery
- 1 x QLogic QLE2562 Dual Port 8Gb/s Fiber Channel PCIe Host Bus Adapter HBA With:
- 2 x Finisar 8Gb/s Transceiver Modules FTLF8528P3BCV-QL
- 1 x Emulex OneConnect SH-P2 Dual Port 10Gb/s 10GBase-T Ethernet Network Card P009956-21R
- 2 x 920W Power Supply PWS-920P-SQ
- 1 x Set Of Rails
Manufacturer's Motherboard Full Specification Physical StatsForm Factor Dimensions - 12" x 9.6" (cm x 24.38cm)
Processor/CacheCPU - Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
- Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
Cores / Cache - Up to 22 cores † / Up to 55MB† cache
Note - † BIOS version 2.0 or above is required
Note - ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System MemoryMemory Capacity - Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM
Memory Type - 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes - RDIMM: 4GB, 8GB, 16GB, 32GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 128GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset SATA - Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers - Dual LAN with Intel® Ethernet Controller I210Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics Input / OutputSATA LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 8 USB 2.0 ports (2 rear + 6 via headers)
- 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Video Output Serial Port / Header - 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM Expansion SlotsPCI-E - 2 PCI-E 3.0 x4 (in x8 slot) Auto-switch to 1 x8 and 1 x0,
- 2 PCI-E 3.0 x8,
- 2 PCI-E 3.0 x8 (in x16 slot)
- 1 PCI-E 2.0 x4 (in x8 slot)
System BIOSBIOS Type - 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features - Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
ManagementSoftware - Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations - ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
PC Health MonitoringVoltage - +12V, +3.3V, +5V, +5V standby, HT, VBAT
Temperature - Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED - CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features - Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free
Operating EnvironmentOperating Temperature Range - 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range - -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range - 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range - 10% ~ 95% (non-condensing)
