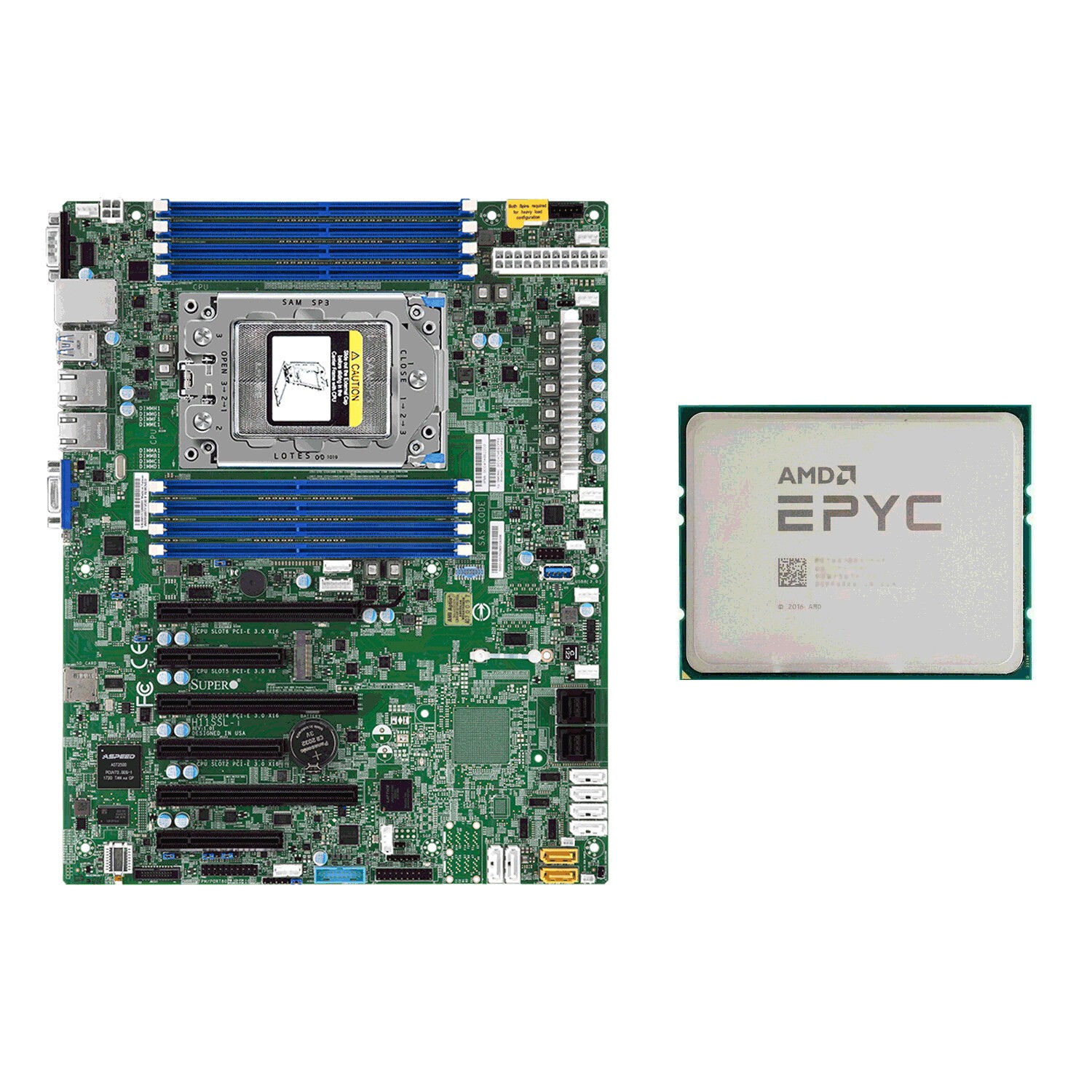

Package include : 1x H11SSL-i motherboard + 1x AMD 7401P
The revision of the motherboard is REV 2.0.
Product description
CPU: Socket SP3 Supports Single AMD EPYC 7000-series Processor Up to 32 Cores Chipset: System on Chip Memory: 8x 288pin DDR4-2666 MHz DIMM Slots, 8-channel, Registered ECC, Max Capacity of 1TB Slots: 3x PCI-Express 3. 0 x16 Slots, 3x PCI-Express 3. 0 x8 Slots SATA: 16x SATA3 Ports Video: Speed AST2500 BMC Graphics LAN: 2x Intel I210 Gigabit Ethernet Controllers, 1x Relate RTL8211E PHY (dedicated IPMI) Ports: 5x USB 3. 0 Ports (2 rear, 2 via header, 1 Type-A), 4x USB 2. 0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port (rear), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port Form Factor: ATX, 12. 0 x 9. 6 inch / 30. 5 x 24. 4 cm. Dual Gigabit Ethernet LAN Ports. Operating Temperature:10 Degrees Celsius to 35 Degrees Celsius (50 Degrees Fahrenheit to 95 Degrees Fahrenheit).
AMD EPYC™ 7401P
of CPU Cores 24
of Threads 48
Base Clock 2.0GHz
Max Boost Clock Up to 3.0GHz
All Core Boost Speed 2.8GHz
Total L3 Cache 64MB
Package SP3
Socket Count 1P
PCI Express® Version PCIe 3.0 x128
Default TDP / TDP 155/170W
System Memory Specification 2400MHz/2666MHz
System Memory Type DDR4
Per Socket Mem BW 153.6 GB/s/170.6 GB/s
