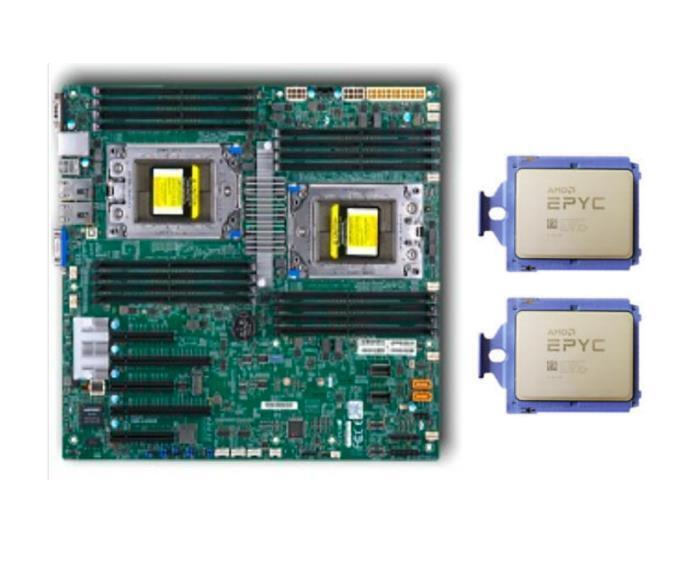

Supermicro H11DSi E-ATX Motherboard AMD EPYC 7451 24c/48t DDR4 2666 7601/7551 Product Description Package include
1XsupermicroH11DSi motherboard 2x AMD EPYC 7451 CPU - Basic parameters
- Performance parameters
- Memory specifications
- Technical parameter
Basic parameters CPU family EPYC 7000 series Production process 14 nm Core codename Naples Performance parameters Number of cores 24 cores Number of threads 48 threads CPU frequency 2.3GHz Dynamic acceleration frequency 3.2GHz L3 cache 64MB Thermal Design Power (TDP) 180W Memory specifications Maximum memory capacity is supported 2TB Memory type DDR4 2666MHz Memory description Maximum number of memory channels: 8 2-Socket theoretical memory bandwidth: 341GB/s Technical parameters Other technologies Supports AMD Secure Root-of-Trust technology, AMD Secure Run technology, AMD Secure Move technology, all cores boost frequency 2.9GHz, 128 PCIe 3.0 lanes, dual slot 1P/2P, General Purpose Motherboard
Product SKUs MBD-H11DSi MBD-H11DSi-B Physical Stats Form Factor Dimensions - 12" x 13.05" (30.5cm x 33.1cm)
Processor/Chipset CPU - Dual AMD EPYC™ 7000-series Processors
- Socket SP3
Cores Chipset System Memory Memory Capacity - 16 DIMM sockets
- Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
- 8-channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
- See Detailed Memory Support Matrix
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - 2 1GbE LAN via Intel® i350-AM21
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SATA LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 2 USB 3.0 ports (rear)
- 4 USB 2.0 ports (2 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 3.0 x8
- 2 PCI-E 3.0 x16
M.2 - Interface: 1 SATA/PCI-E 3.0 x2
- Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H11DSi ) 2U - SC213AC-R1K23LPB
- SC216BE1C4-R1K23LPB
- SC826BE1C4-R1K23LPB
- SC829HE1C4-R1K62LPB
3U 4U - SC745BAC-R1K28B2
- SC846BE1C-R1K23B
System BIOS BIOS Type - AMI 128Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS 3.1.1
Management Software - SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.5V, +1.8V, +12V +5V, +5V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN - Up to 8-fan status tachometer monitoring
- Up to eight 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I2C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- UID
Operating Environment / Compliance Environmental Specifications - Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
