Add-on Card

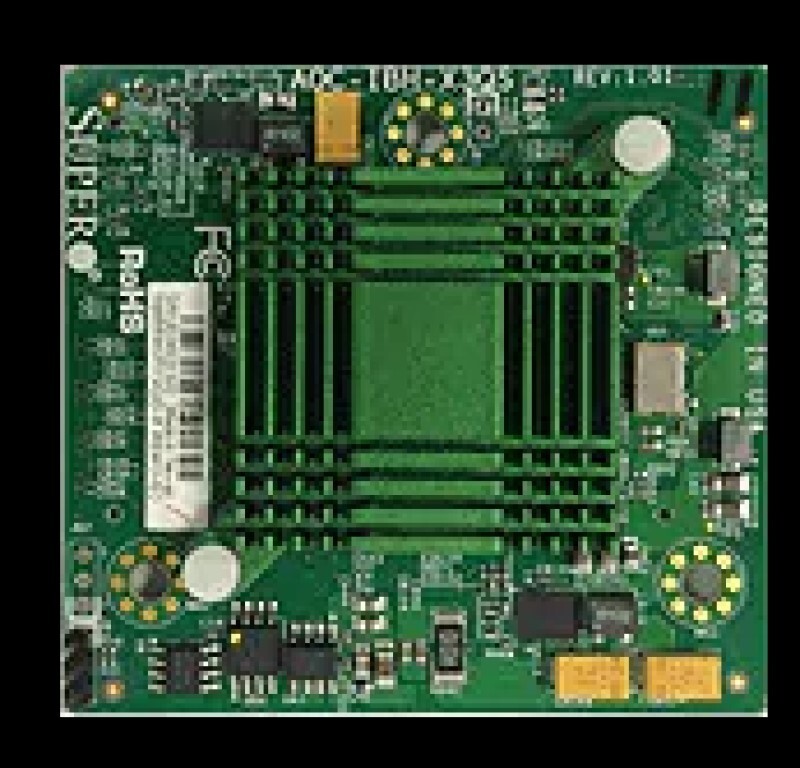

Single Port, Low Latency InfiniBand Adapter Cards For SuperBladeAOC-IBH-X3QSThis InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-X3QS simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. In addition to this outstanding InfiniBand capability, the AOC-IBH-X3QS can be configured alternatively as a 10-Gigabit Ethernet NIC when used with the Supermicro SBM-XEM-002M 10-Gigabit Pass-Through module or the SBM-XEM-X10SM 10Gbps Ethernet switch.ComplianceRoHS
DownloadUser's GuideSee Appendix A of the SuperBlade Network Modules User's Manual for Installation Instructions [Download]FirmwareFirmware [Download]
Highlights

• Single 40Gb/s InfiniBand port or 10Gb/s Ethernet port
• CPU offload of transport operations
• End-to-end QoS and congestion control
• Hardware-based I/O virtualization
• TCP/UDP/IP stateless offload
• Full support for Intel I/OAT

Specification

• InfiniBand:
  - Mellanox ConnectX3 IB FDR Chip
  - Single 4X InfiniBand port
  - 40Gb/s
  - RDMA, Send/Receive semantics
  - Hardware-based congestion
  control
  - Atomic operations
• Interface:
  - SuperBlade Mezzanine Card
• Connectivity:
  - Interoperable with InfiniBand
  switches through SuperBlade
  FDR InfiniBand Switch
  (SBM-IBS-F3616M)
  - Interoperable with 10 Gigabit
  Ethernet switches through
  SuperBlade 10G Ethernet Pass-
  Through Module (SBM-XEM-002)

• Hardware-based I/O Virtualization:
  - Address translation and
  protection
  - Multiple queues per virtual
  machine
  - Native OS performance
  - Complimentary to Intel and AMD
  I/OMMU
• CPU Offloads:
  - TCP/UDP/IP stateless offload
  - Intelligent interrupt coalescence
  - Full support for Intel I/OAT
  - Compliant to Microsoft RSS and
  NetDMA
• Storage Support:
  - TIO compliant data integrity field support

• Operating Systems/Distributions (InfiniBand):
  - Novell, RedHat, Fedora and
  others
  - Microsoft Windows Server
• Operating Systems/Distributions (Ethernet):
  - RedHat Linux

• Operating Conditions:
  - Operating temperature: 0 to 55°C


Compatible Servers

• Support all current blade servers except otherwise indicated. Check individual blade specs
