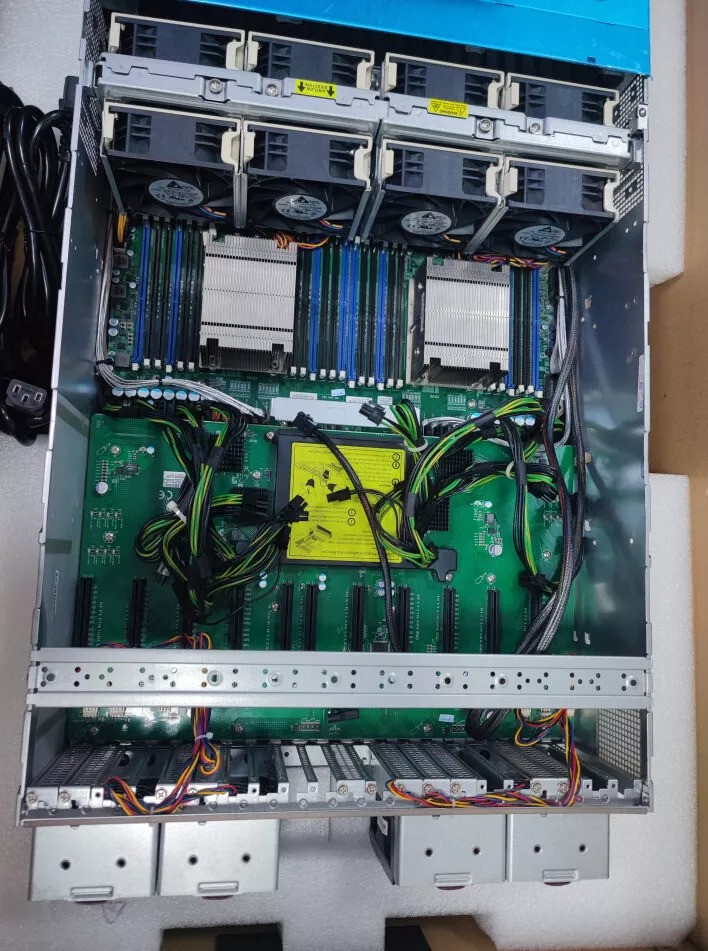

Supermicro 4028GR-TR 24x2.5" 4x2000W 9361-8I 8xGPU 4U Support E5-2600 v3/v4-
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Supermicro 4028GR-TR 24x2.5" 4x2000W 9361-8I 8xGPU 4U Support E5-2600 v3/v4-
Price: CN $1874.22

We are not responsible for customs clearance, buyers need to pay customs duties

The price includes:

Model: SuperServer 4028GR-TR (without CPU memory hard disk)

Power supply: 2000W*4

Up to 10 turbo graphics cards

Pictures are for display purposes only and are not meant to include the accessories pictured.

Contact us for any accessories you need!

Used servers require high technical requirements, and each machine is tested for 12 hours before shipment to ensure that each machine is 100% SKUsSYS-4028GR-TR

  • SuperServer 4028GR-TR (Black)
Motherboard
Super X10DRG-O+-CPUProcessor/CacheCPU
  • Intel® Xeon® processor E5-2600v4†/ v3 family (up to 160W TDP)*
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to22 Cores†/ Up to55MB†Cache
System Bus
  • QPI up to 9.6 GT/s
Note†BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.GPU/Xeon Phi SupportSystem MemoryMemory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB†ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board DevicesChipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Gigabit Ethernet Ports with Intel® i350
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC
Input / OutputSATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header
System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
ChassisForm Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 100 lbs (45.3 kg)
Available Colors
  • Black
Drive BaysHot-swap
  • 24 Hot-swap 2.5" hard drive bays
Expansion SlotsPCI-Express
  • 8 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x8 (in x16) slots
  • 1 PCI-E 2.0 x4 (in x16) slot
BackplaneSAS/SATA HDD BackplaneSystem CoolingFans
  • 8 Hot-swap 92mm cooling fans
Shrouds
  • 1 Air Shroud (MCP-310-41808-0B)
Power Supply1600W 1U Redundant Power Supplies with PMBusTotal Output Power
  • 1000W: 100 – 127Vac
  • 1600W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac / 12.9A Max / 50-60Hz
  • 200-240Vac / 9.5A Max / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100-127Vac)
  • Max: 132A / Min: 0.1A (200-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • 25 Pairs Gold Finger Level
    PC Health MonitoringCPU
    • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
    • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
    FAN
    • 4-pin fan headers with tachometer status monitoring
    • Low noise fan speed control mode
    Temperature
    • Monitoring for CPU and system environment
    • Thermal Control for 8 fan connectors
    Other Features
    • Chassis intrusion detection
    Operating Environment / ComplianceRoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% style="margin: 0pt; text-align: center; font-family: Calibri; font-size: 12pt;">
