Silex Technology SD-330AC 802.11 a/b/g/n/ac Wireless Serial Device Server
Price: US $431.78
WIRELESS LAN SERIAL DEVICE SERVER 802.11AC
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
Silex Technology SD-330AC 802.11 a/b/g/n/ac Wireless Serial Device Server Brand: Silex Technology America UPC: 0815608001720 Mfr Part #: SD330ACUS

General Information

Connect Serial & Ethernet Devices to your Wi-Fi network with NIST approved security

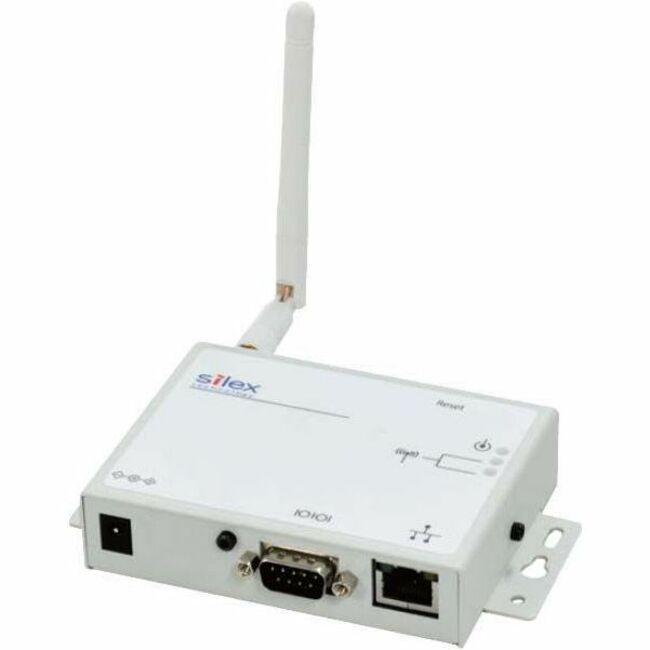

The Silex SD-330AC-1402 is a FIPS 140-2 certified wireless / wired LAN Serial Device Server as well as an Ethernet to Wi-Fi Bridge which securely connects devices equipped with the RS-232C serial interfaces and/or the Ethernet into any network eliminating the need for wired connection between the devices and the computers. Medical devices, printers, scanners or virtually any other device with a serial port or an Ethernet port can now be enabled with secure and robust LAN network capability.

Security | FIPS 140-2 cryptographic operation

SD-330AC-1402 enables medical devices, printers, scanners or virtually any other device with a serial port or an Ethernet port to secure the transport of personal confidential data and ensure the integrity of electronic data over a Wi-Fi wireless network as per FIPS 140-2 requirements.

In FIPS 140-2 mode, FIPS 140-2 certified WLAN authentication WPA2-PSK can be used, and WLAN communication is encrypted by AES CCMP. When customers use applications such as TCP port serial services, eCable client service and so on, the end-to-end application security is established by TLS encryption.

  • Wi-Fi connection security by WPA2-PSK AES CCMP encryption.
  • Secure firmware update over HTTPS
  • Firmware signature check
  • Secure connection to unit web GUI over HTTPS
  • TCP port serial servicesin TLS encrypted mode
  • eCable clientservice in TLS encrypted mode

Secure wireless LAN environment

Only authentication / encryption methods using the algorithm approved by FIPS 140-2 are available in FIPS mode.

SD-330AC-1402 supports various Wi-Fi security features in non-FIPS mode.

  • Open (128bit?
  • WPA-PSK (AUTO)
  • WPA2-PSK (AES)
  • WPA2-Enterprise (AES) only in non-FIPS mode operation; EAP-TLS - PEAP-GTC

Ethernet - Wi-Fi Wireless bridge mode | Single client mode:

The single client bridge mode of the SD-330AC-1402 allows users to access to a single Ethernet device through the wireless network. The SD-330AC-1402 terminates the wireless connection when the Ethernet device is replaced by another device during the operation.

Multi-client mode:

The multi-client bridge mode of the SD-330AC-1402 allows users to access to multiple Ethernet / serial devices through the Wi-Fi wireless network.

Connectivity | Serial device server over Wireless/Wired LAN | Infrastructure mode:

If there is an existing wireless LAN environment, the SD-330AC-1402 can be used as a wireless station.

AP mode:

The SD-330AC-1402 is equipped with access point mode.

Wired LAN:

The SD-330AC-1402 supports 10Base-T / 100Base-TX automatic recognition function.

Technical InformationConnectivity Technology:Wired/WirelessData Link Protocols:TCP/IP

Media & PerformanceMedia Type Supported:Twisted Pair

Wireless SpecificationsWireless LAN:YesWireless LAN Standard:IEEE 802.11a/b/g/n/ac

Network & CommunicationEthernet Technology:Fast EthernetNetwork Standard:100Base-TXNetwork Standard:10Base-T

Power DescriptionPower Consumption:2.50 W

Physical CharacteristicsColor Family:Dual ColorProduct Color:BlueProduct (Approximate):10.76 oz

  • SD-330AC-1402 Device Server
  • AC Adapter
  • Setup Guide
  • Rubber Feet
  • Wireless LAN Antenna
  • GPL Inquiry Sheet
  • Warranty Card
    • Certifications & Standards:
    • FCC Class B
    • ICES-003 Class B
    Environmental Compliance:Restriction of Hazardous Substances (RoHS)
