Seasonic Power Supply PSU SS-650HT 650W 80 Plus Bronze Ball Bearing Fan ATX
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

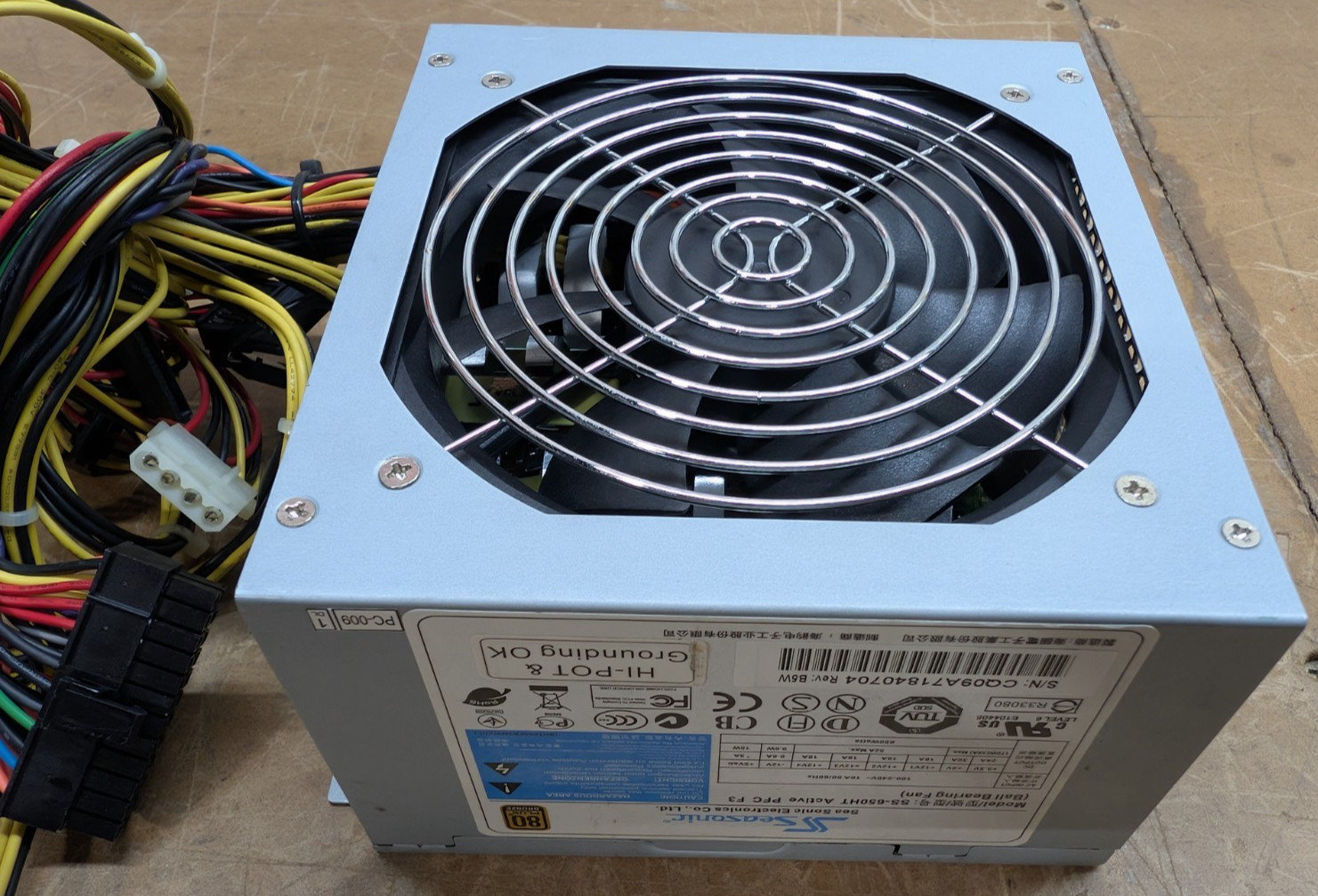

Seasonic Power Supply PSU SS-650HT 650W 80 Plus Bronze Ball Bearing Fan ATX
Price: US $29.99

Tested/working well/no problems. Fully tested and verified operational by certified technician


Manufacturer: Sea Sonic Electronics Co., Ltd.
Model: SS-650HT Active PFC F3 (Ball Bearing Fan)

650 W continuous

  • 80 PLUS Bronze
  • Active PFC, full-range 100–240 VAC ~ 10 A, 50/60 Hz
  • ATX12V v2.31 / EPS12V v2.92
  • Double-forward converter design
  • Protections: SCP, OVP, OPP
  • 120 mm F3 ball-bearing fan, honeycomb exhaust, rear IEC C14 + rocker switch
  • Dimensions: approx. 150 × 140 × 86 mm (standard ATX depth)

DC outputs (from unit label)

  • +3.3 V — 24 A
  • +5 V — 30 A
  • Combined +3.3 V / +5 V — 170 W (38 A) max
  • +12 V1 / V2 / V3 / V4 — 18 A each
  • Combined +12 V — 52 A max (624 W)
  • −12 V — 0.8 A (9.6 W)
  • +5 Vsb — 3 A (15 W)
