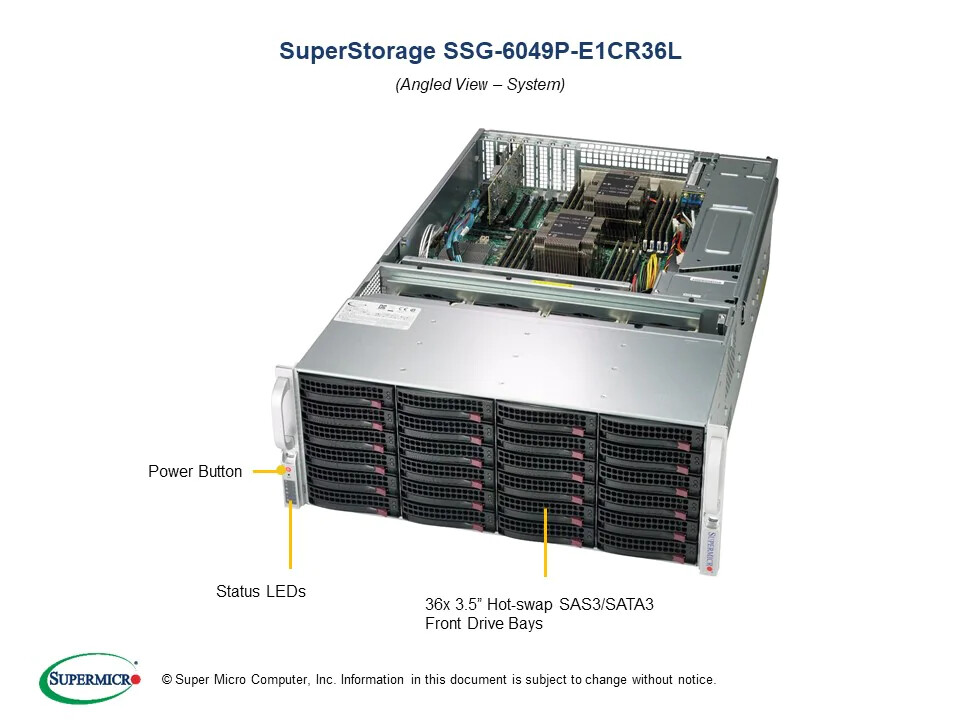

SUPERMICRO SSG-6049P-E1CR36L 4U SuperStorage w/ X11DPH-T Motherboard For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores
Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)System MemoryMemory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††
Memory Type
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ††Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board DevicesChipset
Intel® C622 chipset
SAS
SAS3 (12Gbps) via Broadcom 3008 AOC
Broadcom 3008 controller
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC
Input / OutputLAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (rear)
1 Type A
VGA
1 VGA port
Serial Port / Header
1 Fast UART 16550 port / 1 Header
System BIOSBIOS Type
256Mb AMI UEFI
ManagementSoftware
Intel® Node Manager
IPMI 2.0
NMI
SPM,SUM
SuperDoctor® 5
Watchdog
PC Health MonitoringCPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
ChassisForm Factor
4U Rackmount
Model
17.2" (437mm)
Height
7" (178mm)
Depth
27.5" (699mm)
Weight
Gross Weight: 102.5 lbs (46.4 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Colors
Black
Front PanelButtons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power fail LED
Expansion SlotsPCI-Express
3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 2 & 3 occupied by controller and JBOD Expansion Port
Drive BaysHot-swap
36 Hot-swap 3.5" SAS3/SATA3 drive bays
2 Hot-swap 2.5" SATA3 drive bays (rear)
Optional
4 U.2 NVMe
2 M.2 NVMe
BackplaneSAS3/SATA3 single expander per backplaneSystem CoolingFans
3 Hot-swap 8cm redundant PWM cooling fans
2 Hot-swap 8cm rear exhaust PWM fans
Redundant cooling
Power Supply (76mm Width)1200W Redundant Power Supplies with PMBusTotal Output Power
