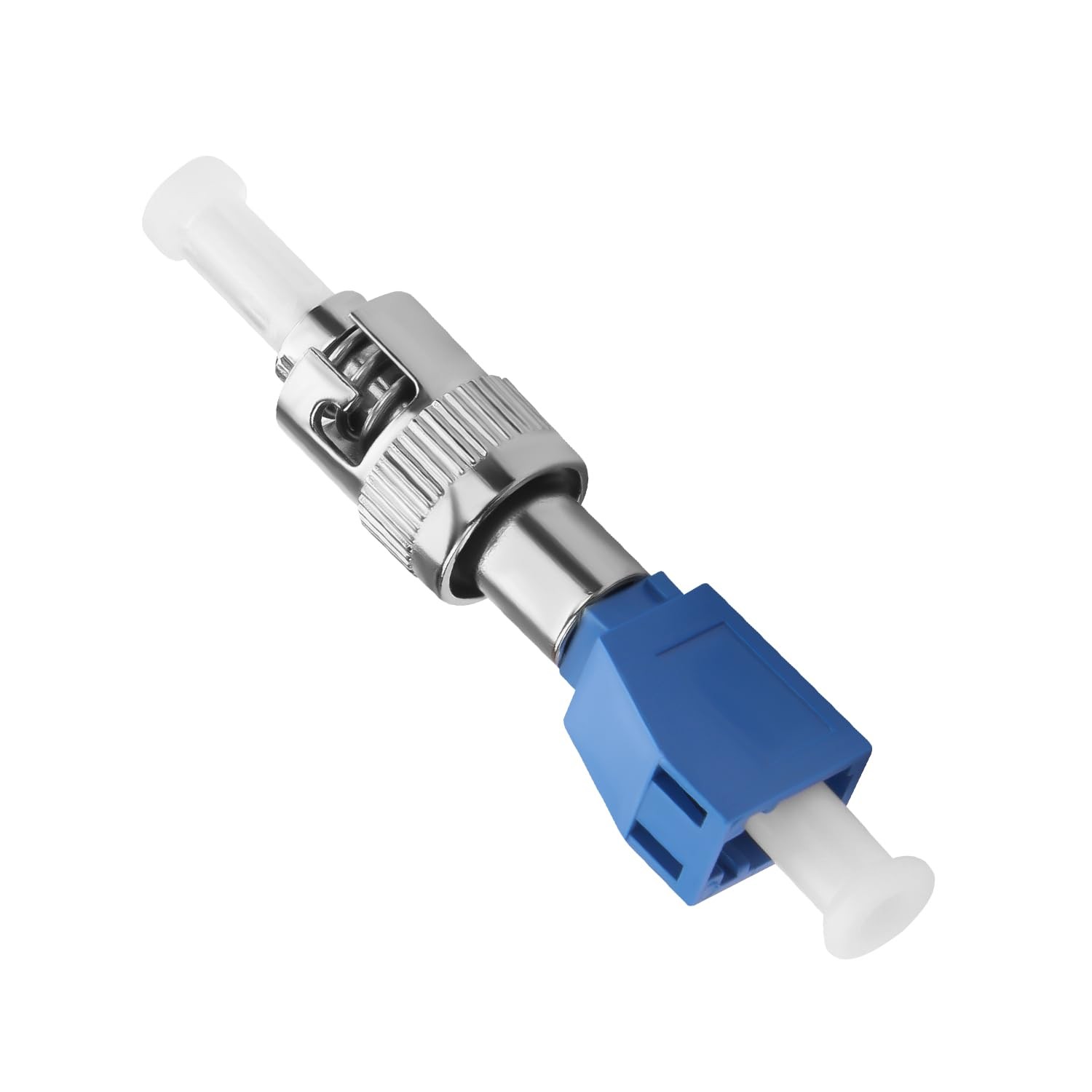

SM 9/125um ST male to LC female hybrid fiber optic converter adapter converts ST and FC fiber optic interfaces to each other. Used for adapting 9/125um FC and LC single mode fibers, suitable for both 1310nm and 1550nm bands.ST and FC fiber interfaces are terminated with UPC contacts, recommended to be connected with ST/UPC and LC/UPC optical fiber patchcord pigtails.ST plug to LC socket for FTTH, FTTP, FTTA, LAN, Fiber Optic Broadband CATV, Red Light Pen optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN, etc.
Port A: ST / UPC male
Port B: LC / UPC female
Contacts: ST/UPC, LC/UPC
Transmission: 9/125μm single mode fiber
Insertion Loss: 1310nm 0.12dB/1550nm 0.04dB
Return loss: 1310nm 53.3dB/1550nm 52.3dB
Core material: zirconia ceramic
Package: 1*ST/UPC to LC/UPC single mode fiber simplex coupler
【ST to LC】ST/UPC male to LC/UPC female Single mode fiber optic adapter coupler, will ST and FC fiber optic interface conversion.
【Single Mode Simplex】SM 9/125μm ST to LC Single Mode Simplex Fiber Optic Adapter Converter for 9/125um FC and LC Single Mode Fiber, suitable for both 1310nm and 1550nm bands.
【Insertion/Return Loss】ST/UPC Male to LC/UPC Female Hybrid fiber optic connector coupler.Insertion loss: 1310nm 0.12dB/1550nm 0.04dB,Return loss: 1310nm 53.3dB/1550nm 52.3dB.
【UPC Contacts】ST/UPC male to LC/UPC female Single mode simplex fiber optic interface adapter, ST and FC fiber optic interface end face are used UPC contacts, recommended to connect with ST/UPC and LC/UPC fiber optic patch cord pigtail
【Application】ST plug to LC socket Hybrid fiber optic connector converter.for FTTH, FTTP, FTTA, LAN, fiber optic broadband CATV, red light pen, optical power meter, fiber optic patch cord pigtail, fiber optic instrument meter, fiber optic LAN.
