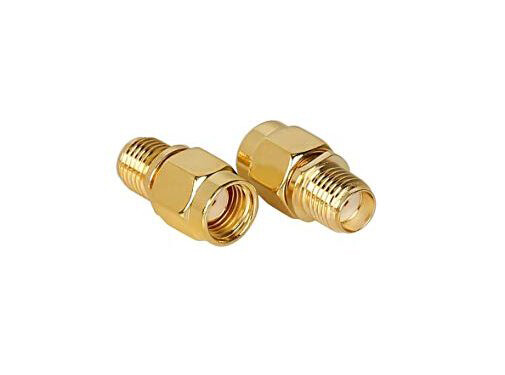

SMA Female – RP SMA Male Adaptor.
- Gold plating – resulting in superior corrosion/salt fog resistance performance.
- Excellent broadband VSWR performance.
- Centre pins plated with substantial gold – enhanced mate/de-mate life.
McGill Microwave are a leading supplier of in-series and inter-series precision RF adaptors, covering the full frequency range DC-110 GHz.
All interface types and styles are available, from Ultra High Performance, Precision Metrology grade to general purpose use, including hermetically sealed versions and high corrosion resistance stainless steel designs.
The McGill Microwave Systems SMA Female – RP SMA Male Adapter provides the ideal solution to join both an RP SMA Female connector and SMA Male connector and pass RF/Microwave frequencies to 12.4 GHz, whilst offering an industry leading low VSWR performance of 1.1:1 maximum.
Electrical SpecificationsElectrical SpecificationsItemValueImpedance50 ΩFrequency RangeDC-12.4 GHzVSWR≤1.1Withstand Voltage100V rmsContact Resistance (Centre)< 3mΩContact Resistance (Outer)< 2mΩInsulation Resistance>5000MΩMechanical SpecificationsMechanical SpecificationsItemValueTemperature Range-55°C to +155°CMating Cycles>500Connector ASMA FemaleConnector BRP SMA MaleMaterial SpecificationsMaterial SpecificationsItemBase MaterialPlatingBodyBrassGoldCentre ConductorPhosphor BronzeGoldGasket6146 SilasticN/AInsulatorPTFEN/AInterface StandardsInterface StandardsIEC 60169-16MIL-C-39012CECC 22210© 2026 McGill Microwave Systems Ltd All rights reserved.Gold plating – resulting in superior corrosion/salt fog resistance performance. Centre pins plated with substantial gold – enhanced mate/de-mate life. McGill Microwave are a leading supplier of in-series and inter-series precision RF adaptors, covering the full frequency range DC-110 GHz. All interface types and styles are available, from Ultra High Performance, Precision Metrology grade to general purpose use, including hermetically sealed versions and high corrosion resistance stainless steel designs. The McGill Microwave Systems SMA Female – RP SMA Male Adapter provides the ideal solution to join both an RP SMA Female connector and SMA Male connector and pass RF/Microwave frequencies to 12.4 GHz, whilst offering an industry leading low VSWR performance of 1.1:1 maximum. © 2026 McGill Mi
