Raise3D Pro 2 Plus Specs

·Build Volume (W x D x H)

oSingle Extruder: 305mm x 305 mm x 605 mm(12” x 12” x 23.8”)

oDule Extruder: 280 mm x 305 mm x 605 mm(11” x 12” x 23.8”)

·Machine Size (W x D x H)

o620 mm x 590 mm x 1105 mm (24.4” x 23.2” 43.5”)

·Electrical

oPower Supply Input: 100-240V AC, 50/60 Hz23 V @ 3.3 A

oPower Supply Output: 24 V DC, 600 W

·General Information

o PrintTechnology: Fused Filament Fabrication (FFF)

o PrintHead System: Dual-head w/ Electronic Lifting System

o FilamentDiameter: 1.75 mm

o LayerHeight: 0.05 mm – 0.6 mm

o CompatibleNozzle Sizes: 0.2, 0.4, 0.8 and 1.0 mm

o MaxNozzle Temperature: 300 °C

o Connectivity:Wi-Fi, LAN, USB Port, Live Camera

o NoiseEmission: <50 dB

o Technical Certifications: CB, CE, FCC, RoHS

o Compatible Materials: PLA, ABS, PETG, PC, PETG ESD, TPU 95A,PVA+

o Software: ideaMaker

·Standard Mode

o VolumetricFlow Rate: <= 10 mm3/s

o PrintHead Speed: <= 100 mm/s

o PrintHead Acceleration: 1500 mm/s2

·Hyper Speed Mode

o VolumetricFlow Rate: <= 15 mm3/s

o PrintHead Speed: <= 150 mm/s

o PrintHead Acceleration: 5000 mm/s2

Condition of Pro 2 Plus

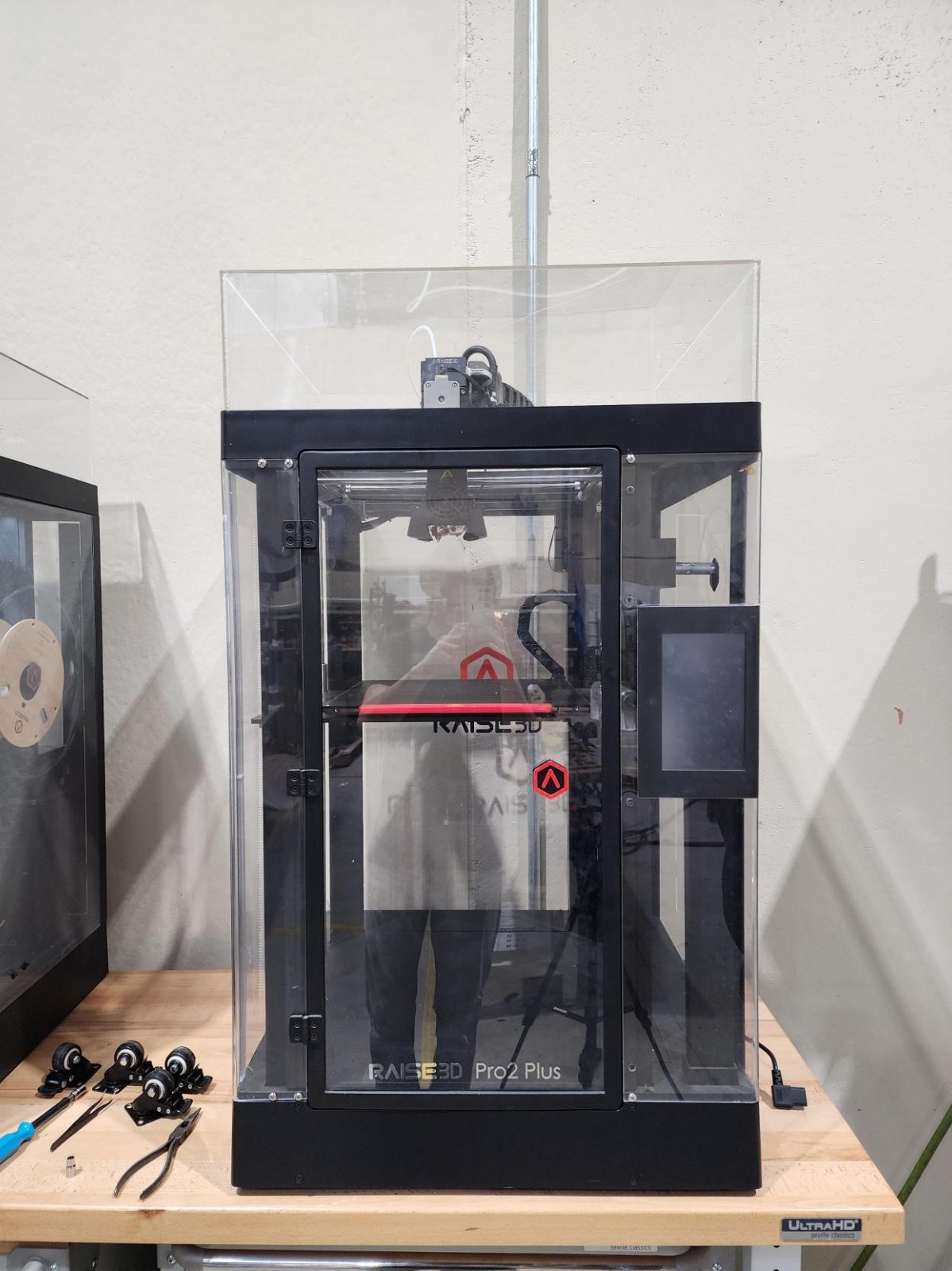

This Raise3D Pro2 Plus is a large, fully enclosedprofessional 3D printer that’s been used and maintained in a professional setting.It has been used for everything from small trinkets to parts with aerospace applications.It’s operational, just expect the build plate to potentially need re-levelingafter shipping. With its tall build height, it’s great for longer, verticalparts, and the dual-extrusion/dual-material capability makes it a solid choicefor multi-material prints or soluble support workflows.

This unit has been upgraded with Raise3D Hyper FFF firmware,and the printer surface was recently replaced. As per regular maintenance, the linearrods, lead screws, and bearings were recently lubricated. The printer wasoriginally on caster wheels, but those have been swapped for rubber feet for amore stable setup; the caster wheels and other spare parts (shown in the photos)will be included. This printer is being sold to make room for a Pro3 Plus. In addition,some spare PLA filament for small test prints will be included for test prints uponarrival.
