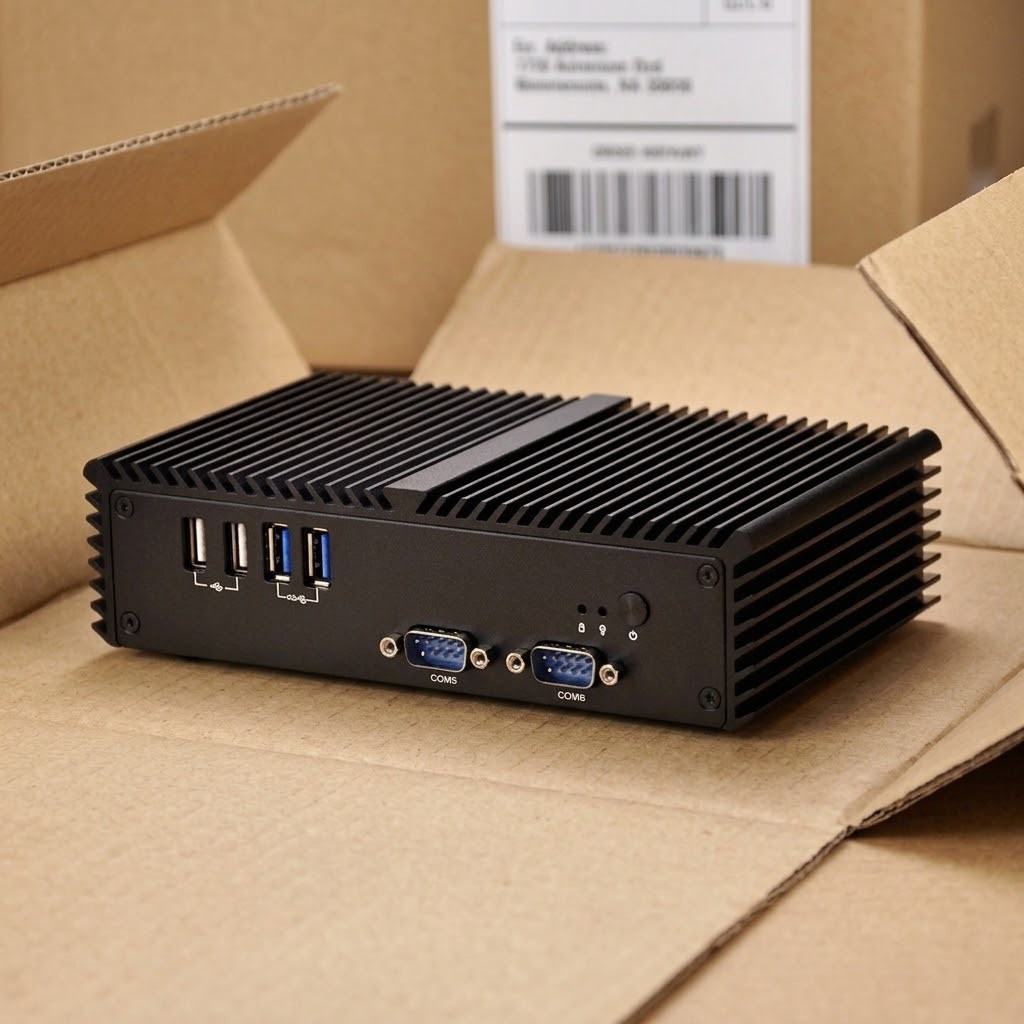

Qotom Q305p 3205u 4GB RAM 32GB SSD Mini PC COM Serial Port IPC POS Computer RS-232NOTE: NO audioNO OS,come with
compatible adapter show in photo
Basic Info.
Model NO.
Q305P-S050001
CPU
Intel Celeron
GPU
Intel
Memory Type
DDR3l
Use
Commercial
CPU Frequency
1.5GHz
Brand Name
Qotom
Integrated Graphics
Intel HD Graphics
Main Port
2 HDMI+2 LAN+2 USB2.0+4 USB3.0+6 COM
Memory
Support DDR3l RAM
Storage
Support Msata SSD
Hard Drive
Support 2.5-Inch SATA HDD
System
Support Windows/Pfsense/Linux, etc.
Support WiFi
Yes
Watch Dog
Yes
AES-Ni
No
Transport Package
261 X 220 X 80mm
Specification
187 x 111 x 50mm
Origin
China
HS Code
8471494000
Product DescriptionProduct Description
Processor System Expansion CPUIntel Celeron Broadwell SOC Processor
Default 3205U Dual Core Processor, 1.5GHz, 2M Cache mSATA1xFull Size Mini-PCIe for SSDCPU TDP15W Mini-PCIe1 x Mini-PCIe for Option,
1, Full-length for 3G, Half-length for Wi-Fi Module by DefaultMemory1xDDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) SIM Card Slot1ChipsetBy CPU Automatically Boot Jumper1GraphicsIntel® HD Graphics VGA1x2.0 Pitch HeaderLAN Chipset2xIntel I211-AT Gigabit LAN GPIO1x2.0 Pitch HeaderAudioRealtek ALC662 HD Audio RS-485COM2 can be set up as RS-232/RS-485 (Factory Setting)Watch DogYes DC-inHeader Front I/O Power Requirement Power Button1 Power Adapter12V3ALED1xPower LED, 1 x HDD LED DC Jack5.5mm, 2.5mmUSB2xUSB 3.0, 2xUSB 2.0 Serial Port2 x RS-232 (COM5, COM6) Environmental Operating Temp0°C~50° CRear I/O Non-Operating Temp-20°C~80° CPower1xDC Jack Humidity10%~90%Video Output2xHDMI, 1 x VGA (Optional) USB2xUSB 3.0 Mechanical LAN2xRJ45 Port for Gigabit LAN MaterialAluminumAudio1 (Mic-in, Line-out) Dimension187x111x50mmSerial Port4 x RS-232 (COM1, COM2, COM3, COM4) Weight1.1kg Storage MountingVESA Mounting BracketType1x2.5-inch HDD/SSD
1xMini-PCIe for mSATA SSD Packaging Dimension261x218x75mm Kensington LockSupportOS Support Cooling ModeFanless DesignOSWindows 7, Windows 8, Windows 10, Linux
Packing Included
1 x Mini PC
1 x Power Supply
2 x Antennas
