Main Specifications:

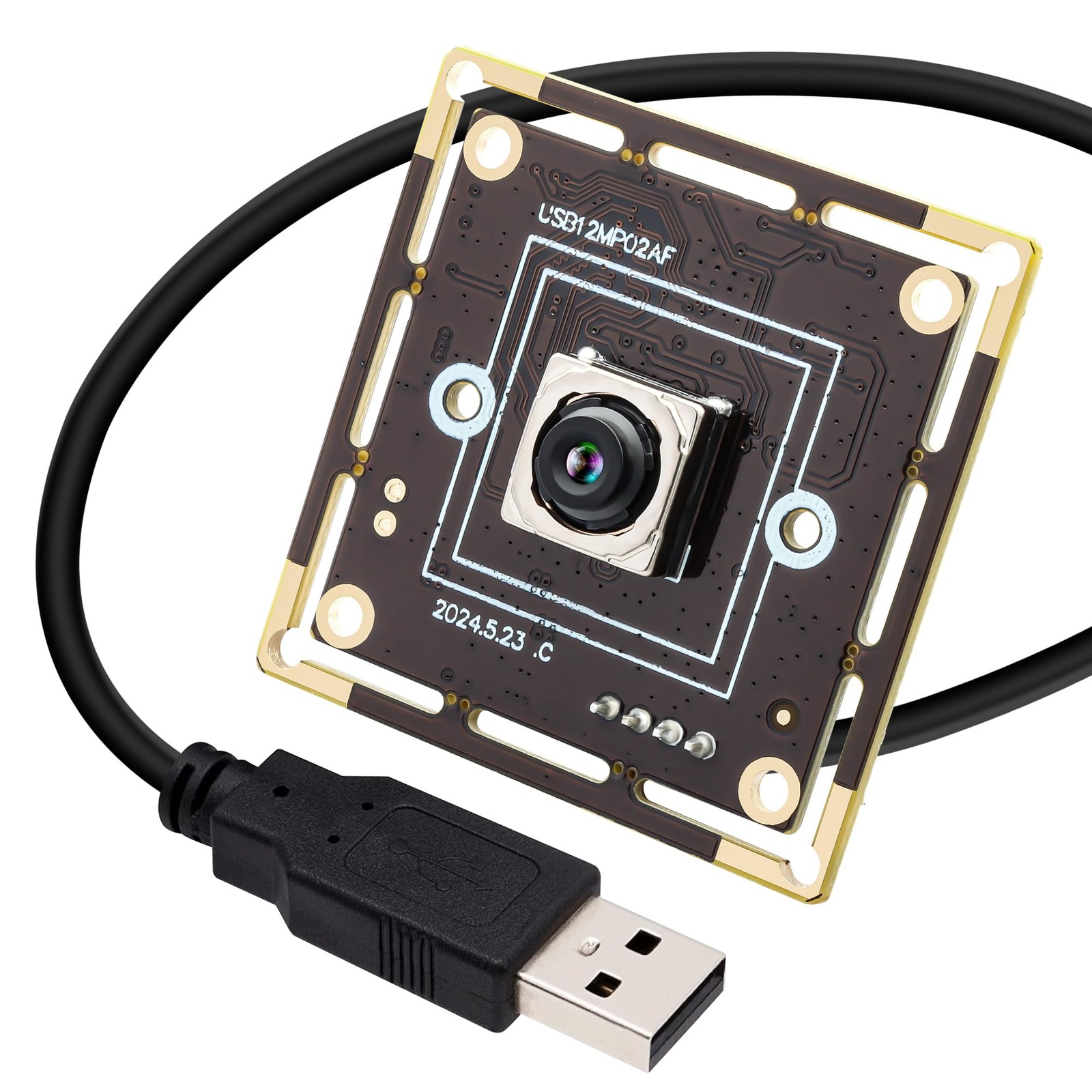

Model: IF-USB12MP02AF-V65
Sensor: CMOS IMX362
Sensor Size: 1/2.55 inch
Pixel Size: 1.4um x 1.4um
Image Area： 6.8mm x 5.67mm
Max. Resolution：4000(H) X 3000(V) 12 Megapixel
Default Resolution： 4000(H) X 3000(V)
Compression Format： MJPEG / YUY2 (YUYV)
Auto Focus Mode： PDAF Mode
Focus Speed： About 200ms at 60fps/ 300ms at 30fps
Resolution & Frame Rate：
4000 x 3000 MJPEG@15fps 3840 x 2160 MJPEG@30fps
2592 x 1944 MJPEG@30fps YUY2@3fps 2560 x 1440MJPEG@30fps YUY2@3fps
2048 x 1536 MJPEG@30fps YUY2@3fps 1920 x 1080 MJPEG@60fps YUY2@5fps 1600 x 1200 MJPEG@45fps YUY2@5fps 1280x 1024 MJPEG@60fps YUY2@10fps
1280 x 720 MJPEG@60fps YUY2@10fps 800 x 600 MJPEG@45fps YUY2@25fps
640 x 480 MJPEG@45fps YUY2@25fps 640 x 360 MJPEG@60fps
320 x 240 MJPEG@45fps YUY2@25fps
Min Illumination： 0.5 Lux
Shutter Type： Electronic Rolling Shutter / Frame Exposure
Connecting Port： Type USB2.0 High Speed
Free Drive Protocol： USB Video Class (UVC)
AEC： Support， AWB： Support， AGC： Support
Adjustable Parameters： Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter： AF LENS Focus: 3.3mm , DFOV: about 76 Degree , HFOV: about 65 Degree
Power Supply： USB BUS POWER 4P-2.0mm Socket
Operating Voltage： DC 5V
Working Current ：160mA~180mA
Working Temperature： -20~60℃
Storage Temperature： -20~85℃
PDAF Fast Autofocus 65 Degree Lens: 4K Autofocus usb camera module features with 65 degree autofocus no distortion lens for exceptional image quality. Autofocus and get clear images automatically. AF Lens Focus: 3.3mm, DFOV: about 76 Degree, HFOV: about 65 Degree. Focus Speed About 200ms at 60fps/ 300ms at 30fps.
60fps High Speed Camera: With this 60fps high speed UVC camera module, you can enjoy programmable frame rates, with the potential to reach up to 60fps at 1080P resolution that ensures smooth and fluid video capture. The USB network camera is specifically designed and optimized for professional video production, monitoring system manufacturing and industrial vision.
12Megapixels High Resolution: 12megapixels usb camera module utilizes a 1/2.5" cmos IMX362 image colour sensor, achieving a maximum still resolution of 4000(H) X 3000(V) pixels which can help you capture incredibly detailed images.
USB2.0 Free Driver: 3000P usb camera UV compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional.
Wide Applications: 4K usb camera module suitable for multi-angles placement needs for pc computer, laptop, desktop, desk and even other flat surfaces. Wide compatible with Windows, Linux, Mac and Android systems. Great for industrial embedded project, online class, live streaming, video conferencing, 3d printer.
